SFSA030 Series

Manufacturer: SWISSBIT

Catalog

SSD 30GB SLIM-SATA PSLC SATAIII

Part	Memory Type	Operating Temperature [Max]	Operating Temperature [Min]	Form Factor	Speed - Read	Speed - Write	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Type	Memory Size	Current - Max [Max]	Form Factor	Voltage - Supply
SWISSBIT SFSA030GV3AA2TO-I-LB-22P-STD	Solid State Drive (SSD) FLASH - NAND (pSLC)	85 °C	-40 C	Slim-SATA	520 MB/s	450 MB/s	39 mm	54 mm	4 mm	SATA III	30 GB	630 mA

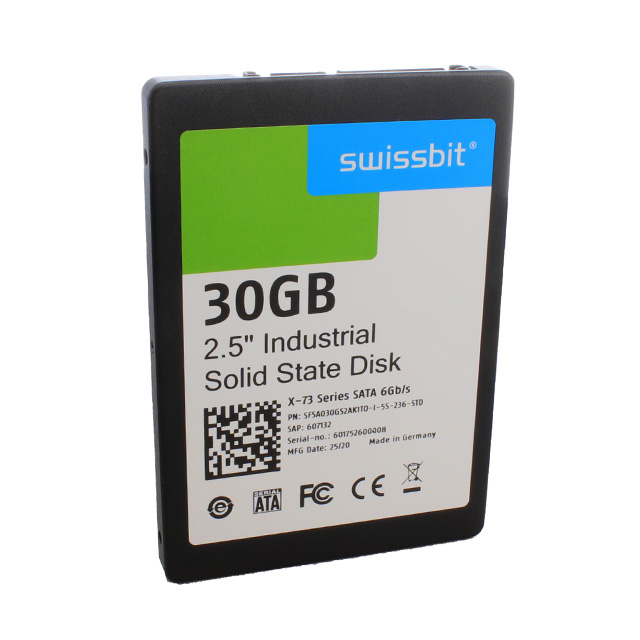

SWISSBIT SFSA030GS2AK1TO-I-5S-236-STD	Solid State Drive (SSD) FLASH - NAND (TLC)	85 °C	-40 C		185 MB/s	48 MB/s	70 mm	100 mm	7 mm	SATA III	30 GB		2.5 "
SWISSBIT SFSA030GM3AA2TO-I-LB-22P-STD	Solid State Drive (SSD) FLASH - NAND (pSLC)	85 °C	-40 C	M.2 Module	520 MB/s	415 MB/s	22 mm	42 mm	3.6 mm	SATA III	30 GB	550 mA		3.3 V
SWISSBIT SFSA030GM3AA1TO-C-LB-526-STD	Solid State Drive (SSD) FLASH - NAND (MLC)	70 °C	0 °C	M.2 Module	520 MB/s	450 MB/s	22 mm	80 mm	3.6 mm	SATA III	30 GB	960 mA		3.3 V

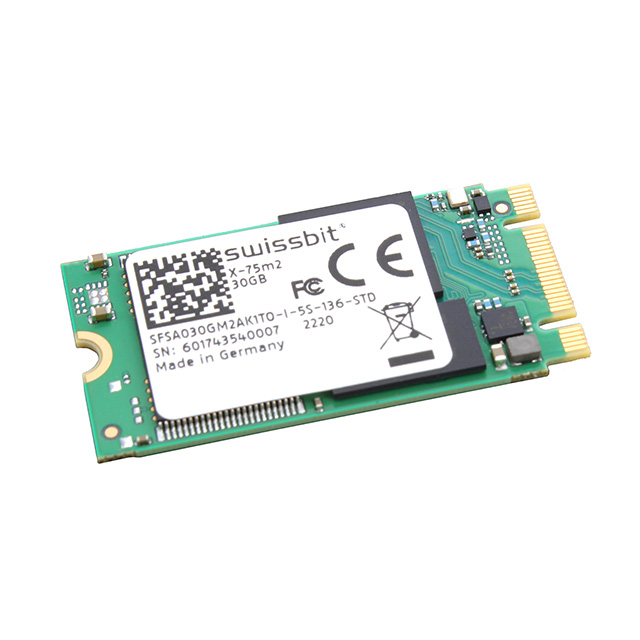

SWISSBIT SFSA030GM2AK1TO-I-5S-136-STD	Solid State Drive (SSD) FLASH - NAND (TLC)	85 °C	-40 C	M.2 Module	185 MB/s	48 MB/s	22 mm	80 mm	3.58 mm	SATA III	30 GB			3.3 V
SWISSBIT SFSA030GM3AA1TO-C-LB-126-STD	Solid State Drive (SSD) FLASH - NAND (MLC)	70 °C	0 °C	M.2 Module	520 MB/s	450 MB/s	22 mm	80 mm	3.6 mm	SATA III	30 GB	960 mA		3.3 V
SWISSBIT SFSA030GU4AA2TO-I-LB-22P-STD	Solid State Drive (SSD) FLASH - NAND (pSLC)	85 °C	-40 C	mSATA	520 MB/s	450 MB/s	29.85 mm	2 in	3.3 mm	SATA III	30 GB	610 mA		3.3 V

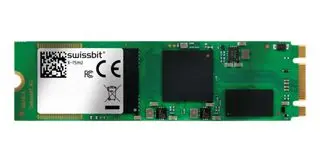

SWISSBIT SFSA030GM2AK1TO-I-5S-536-STD	Solid State Drive (SSD) FLASH - NAND (TLC)	85 °C	-40 C	M.2 Module	185 MB/s	48 MB/s	22 mm	80 mm	3.58 mm	SATA III	30 GB			3.3 V
SWISSBIT SFSA030GU4AA2TO-C-LB-22P-STD	Solid State Drive (SSD) FLASH - NAND (pSLC)	70 °C	0 °C	mSATA	520 MB/s	450 MB/s	29.85 mm	2 in	3.3 mm	SATA III	30 GB	610 mA		3.3 V

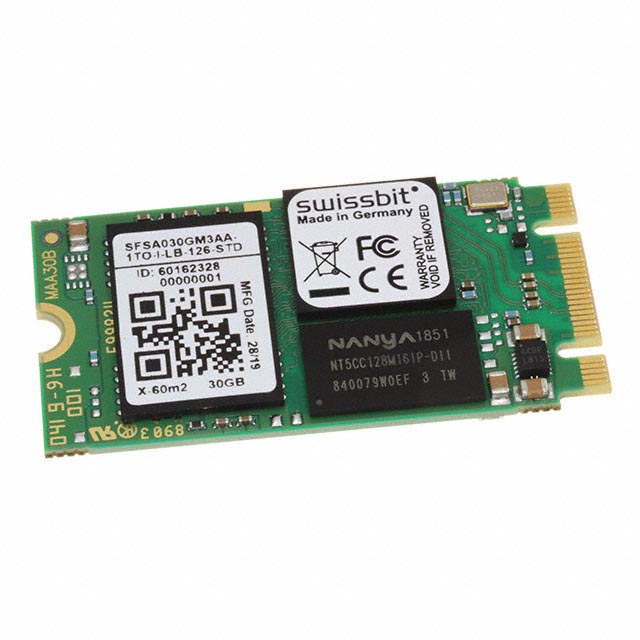

SWISSBIT SFSA030GM3AA1TO-I-LB-126-STD	Solid State Drive (SSD) FLASH - NAND (MLC)	85 °C	-40 C	M.2 Module	520 MB/s	450 MB/s	22 mm	80 mm	3.6 mm	SATA III	30 GB	960 mA		3.3 V
