GW KAGHB1.CM Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

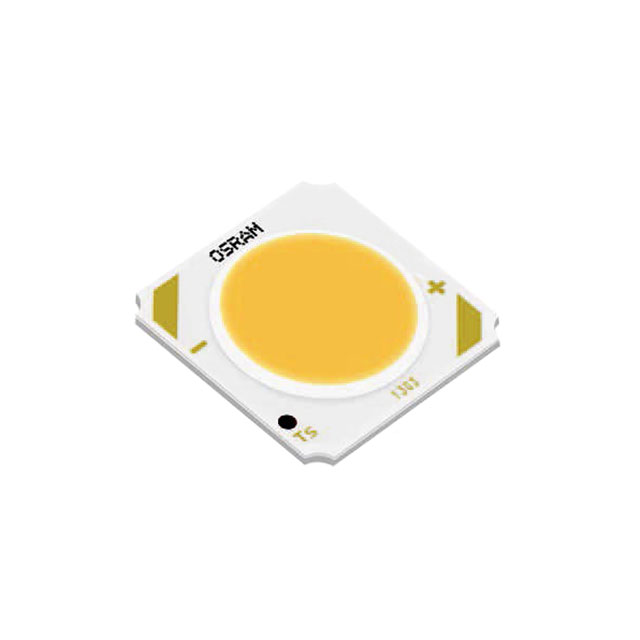

LED COB SOLERIQ WHT SQ 4000K
| Part | Type | Voltage - Forward (Vf) (Typ) | CCT (K) | Current - Max [Max] | Size / Dimension [x] | Size / Dimension [y] | Configuration | Light Emitting Surface (LES) [diameter] | Viewing Angle | Color | Current - Test | Lumens/Watt @ Current - Test | Height [z] | Luminous Flux @ Current/Temperature | CRI (Color Rendering Index) | Lens Type | Temperature - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | Chip On Board (COB) | 32 V | 4000 K | 720 mA | 18 mm | 18 mm | Square | 13.2 mm | 120 ° | Neutral White | 500 mA | 100 lm/W | 1.55 mm | 1600 lm | 90 | Flat | 25 °C |
