228979 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

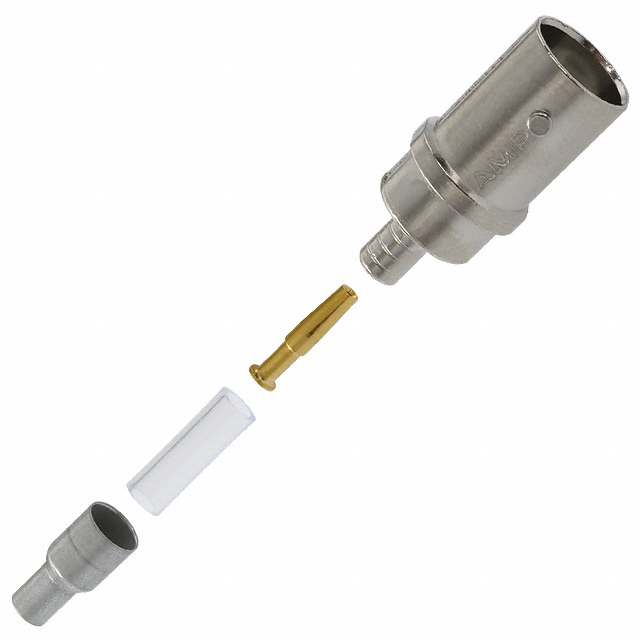

CONN BNC JACK STR 50 OHM CRIMP
| Part | Connector Type | Contact Termination | Fastening Type | Center Contact Plating | Shield Termination | Insertion Loss | Body Finish | Number of Ports | Connector Style | Frequency - Max [Max] | Dielectric Material | Mating Cycles | Housing Color | Voltage Rating | Includes | Center Contact Material | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Cable Group | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Female Socket Jack | Crimp | Bayonet Lock | Gold | Crimp | 0.2 dB | Nickel | 1 | BNC | 4 GHz | Polypropylene (PP) | 500 | Silver | 500 V | 1 Connector 1 Contact 1 Ferrule | Beryllium Copper | Free Hanging (In-Line) | 85 °C | -55 °C | Zinc | 188 316 RG-174 | 50 Ohms |
