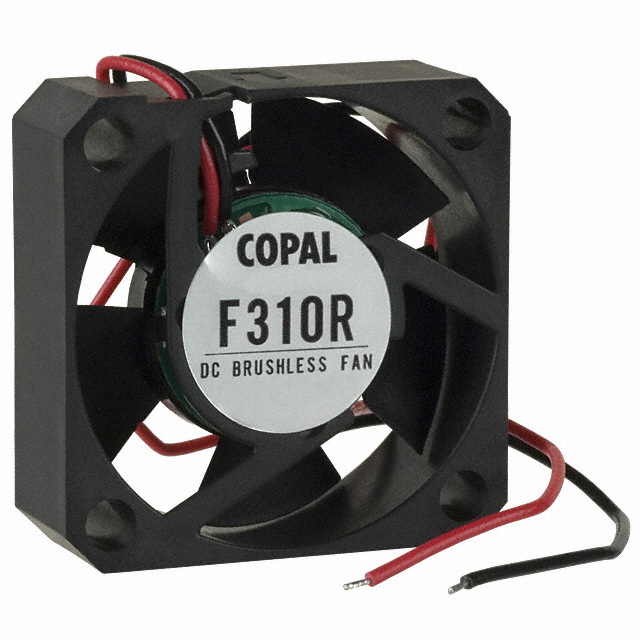

F310R Series

Manufacturer: Nidec Components Corporation

Catalog

AXIAL FAN, 30MM, 5VDC, 2.118CFM, 13DBA

Part	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Material - Blade	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Noise	Voltage - Rated	RPM	Weight	Weight	Bearing Type	Size / Dimension [x]	Size / Dimension [z]	Fan Type	Static Pressure	Static Pressure	Termination	Air Flow	Air Flow	Air Flow	Features
Nidec Components Corporation F310R-05LLC	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	4.5 V	5.7 VDC	50 mA	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	10 mm	-10 °C	60 °C	0.25 W	13 dB(A)	5 V	5500 RPM	8.16 g	0.018 lb	Sleeve	30 mm	30 mm	Tubeaxial	13.9 Pa	0.056 in H2O	2 Wire Leads
Nidec Components Corporation F310R-05LB	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	4.5 V	5.7 VDC	70 mA	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	10 mm	-10 °C	60 °C	350 mW	17 dB	5 V	7000 RPM	8.16 g	0.018 lb	1 Ball 1 Sleeve	30 mm	30 mm	Tubeaxial	23 Pa	0.092 in H2O	2 Wire Leads	3.2 CFM	0.09 mł/min	3.2 CFM
Nidec Components Corporation F310R-12LC	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	10.2 VDC	13.8 VDC	40 mA	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	10 mm	-10 °C	60 °C	0.48 W	17 dB	12 VDC	7000 RPM	8.16 g	0.018 lb	Sleeve	30 mm	30 mm	Tubeaxial	23 Pa	0.092 in H2O	2 Wire Leads		0.09 mł/min	3.2 CFM
Nidec Components Corporation F310R-05LC	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	4.5 V	5.7 VDC	70 mA	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	10 mm	-10 °C	60 °C	350 mW	17 dB	5 V	7000 RPM	8.16 g	0.018 lb	Sleeve	30 mm	30 mm	Tubeaxial	23 Pa	0.092 in H2O	2 Wire Leads		0.09 mł/min	3.2 CFM
Nidec Components Corporation F310R-12LLC	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	10.2 VDC	13.8 VDC	25 mA	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	10 mm	-10 °C	60 °C	300 mW	13 dB(A)	12 VDC	5500 RPM	8.16 g	0.018 lb	Sleeve	30 mm	30 mm	Tubeaxial	13.9 Pa	0.056 in H2O	2 Wire Leads

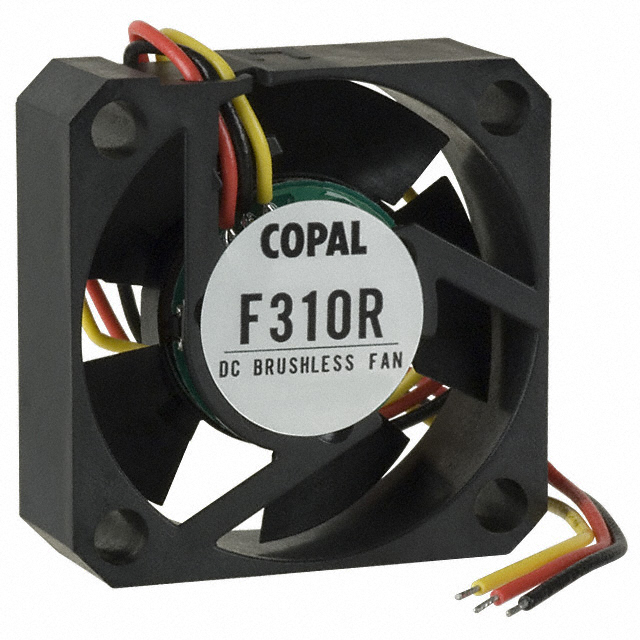

Nidec Components Corporation F310RF-05LB	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	4.5 V	5.7 VDC	70 mA	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	10 mm	-10 °C	60 °C	350 mW	17 dB	5 V	7000 RPM	8.16 g	0.018 lb	1 Ball 1 Sleeve	30 mm	30 mm	Tubeaxial	23 Pa	0.092 in H2O	3 Wire Leads		0.09 mł/min	3.2 CFM	Speed Sensor (Tach)
Nidec Components Corporation F310RF-12LB	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	10.2 VDC	13.8 VDC	40 mA	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	10 mm	-10 °C	60 °C	0.48 W	17 dB	12 VDC	7000 RPM	8.16 g	0.018 lb	1 Ball 1 Sleeve	30 mm	30 mm	Tubeaxial	23 Pa	0.092 in H2O	3 Wire Leads		0.09 mł/min	3.2 CFM	Speed Sensor (Tach)
Nidec Components Corporation F310R-12LB	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	10.2 VDC	13.8 VDC	40 mA	Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT)	10 mm	-10 °C	60 °C	0.48 W	17 dB	12 VDC	7000 RPM	8.16 g	0.018 lb	1 Ball 1 Sleeve	30 mm	30 mm	Tubeaxial	23 Pa	0.092 in H2O	2 Wire Leads		0.09 mł/min	3.2 CFM
