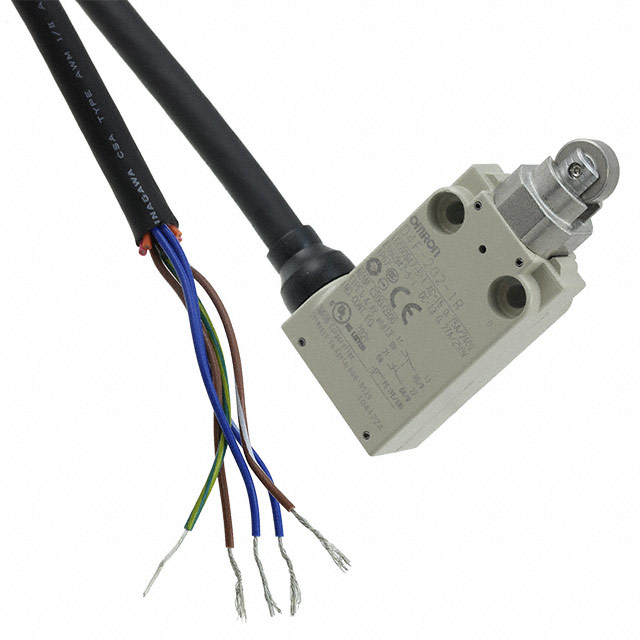

D4F-202 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACT DPST-NC 15A 120V
| Part | Pretravel | Pretravel | Actuator Type | Features | Mechanical Life | Circuit | Termination Style | Switch Function | Electrical Life | Release Force | Operating Force | Ingress Protection | Operating Position | Operating Position | Voltage Rating - DC | Voltage Rating - AC | Mounting Type | Current Rating (Amps) | Overtravel | Overtravel | Operating Temperature [Max] | Operating Temperature [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | 0.047 in | 1.2 mm | Roller Plunger | Cable Length 1m | 10000000 Cycles | DPST-NC | Cable Leads | On-Mom | 150000 Cycles | 153 gf | 1224 gf | IP67 - Dust Tight Waterproof | 29.4 mm | 1.156 " | 125 VDC | 120 V | Chassis Mount | 15 A 550 mA | 0.125 in | 3.2 mm | 70 °C | -30 ░C | |
 Omron Electronics Inc-EMC Div | 0.047 in | 1.2 mm | Roller Plunger | 10000000 Cycles | DPST-NC | Cable Leads | On-Mom | 150000 Cycles | 153 gf | 1224 gf | IP67 - Dust Tight Waterproof | 29.4 mm | 1.156 " | 125 VDC | 120 V | Chassis Mount | 15 A 550 mA | 0.125 in | 3.2 mm | 70 °C | -30 ░C | 3 m | |
 Omron Electronics Inc-EMC Div | 0.047 in | 1.2 mm | Roller Plunger | Cable Length 1m | 10000000 Cycles | DPST-NC | Cable Leads | On-Mom | 150000 Cycles | 153 gf | 1224 gf | IP67 - Dust Tight Waterproof | 29.4 mm | 1.156 " | 125 VDC | 120 V | Chassis Mount | 15 A 550 mA | 0.125 in | 3.2 mm | 70 °C | -30 ░C |
