470097YY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

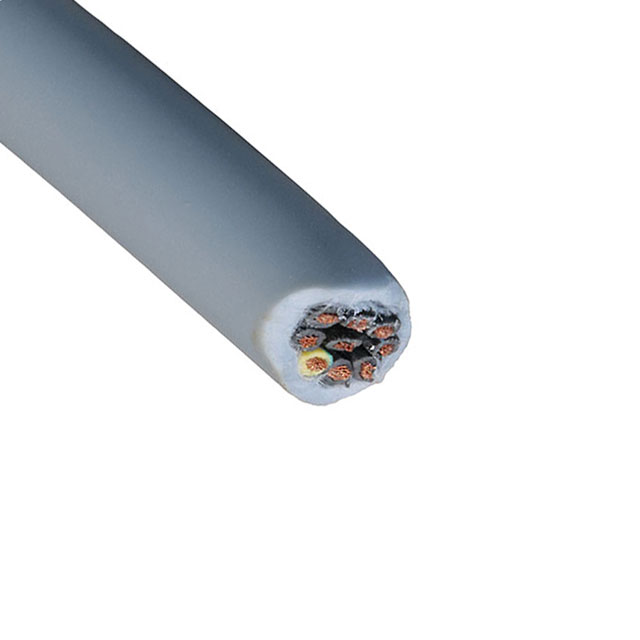

MULTICONDUCTOR CABLE, PRO-MET®, YY CONTROL, UNSHIELDED, 9 CONDUCTOR, 19 AWG, 0.75 MM², 328 FT
| Part | Length [x] | Length [x] | Voltage | Usage | Wire Gauge | Features | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Conductor Strand [custom] | Conductor Strand [diameter] | Conductor Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 328.1 ft | 100 m | 300 VDC | Industrial | 19 AWG | Chemical Resistant Oil Resistant UV Resistant | 80 °C | -40 C | Poly-Vinyl Chloride (PVC) | Gray | 0.0374 " | 0.95 mm | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 8.41 mm | 0.331 in | 9 | 30 | 0.007 in | Copper Bare | ||
 ALPHA WIRE | 98.43 ft | 30 m | 300 VDC | Industrial | 19 AWG | Chemical Resistant Oil Resistant UV Resistant | 80 °C | -40 C | Poly-Vinyl Chloride (PVC) | Gray | 0.0374 " | 0.95 mm | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 8.41 mm | 0.331 in | 9 | 30 | 0.007 in | Copper Bare | 1 m 20 m | 3.28 ft 65.62 ft |
ALPHA WIRE | 300 VDC | Industrial | 19 AWG | Chemical Resistant Oil Resistant UV Resistant | 80 °C | -40 C | Poly-Vinyl Chloride (PVC) | Gray | 0.0374 " | 0.95 mm | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 8.41 mm | 0.331 in | 9 | 30 | 0.007 in | Copper Bare | 50 m | 164 ft |
