EAST1005 Series

Catalog

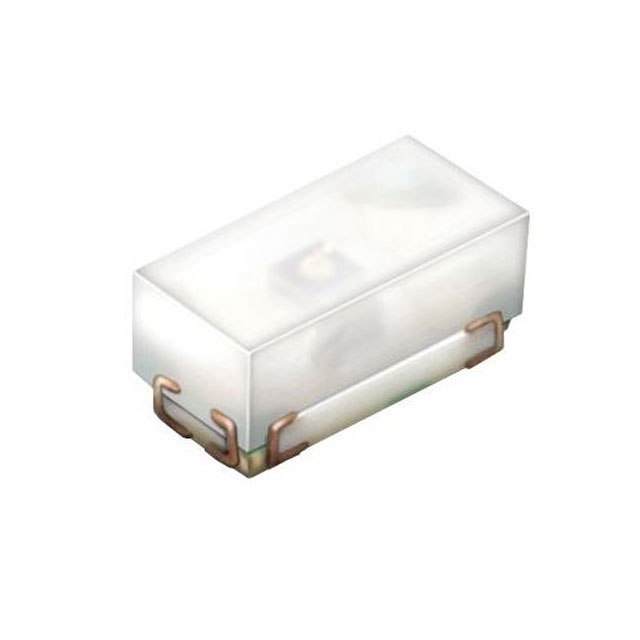

LED GREEN CLEAR 2SMD

Part	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Color	Lens Style	Wavelength - Peak	Package / Case	Configuration	Lens Transparency	Wavelength - Dominant [custom]	Current - Test	Height (Max) [z]	Viewing Angle	Mounting Type	Lens Size [x]	Lens Size [y]	Supplier Device Package	Lens Color	Wavelength - Dominant	Millicandela Rating
Everlight Electronics Co Ltd EAST1005GA0	1 mm	0.5 mm	3.3 V	Green	Rectangle with Flat Top	518 nm	0402 (1005 Metric)	Standard	Clear	528 nm	20 mA	0.45 mm	120 °	Surface Mount	1 mm	0.5 mm	2-SMD	Colorless
Everlight Electronics Co Ltd EAST1005GA1	1 mm	0.5 mm	2.05 V	Yellow-Green	Rectangle with Flat Top	575 nm	0402 (1005 Metric)	Standard	Clear		20 mA	0.45 mm	120 °	Surface Mount	1 mm	0.5 mm	2-SMD	Colorless	574 nm	40 mcd
Everlight Electronics Co Ltd EAST1005RA0	1 mm	0.5 mm	2 V	Red	Rectangle with Flat Top	632 nm	0402 (1005 Metric)	Standard	Clear		10 mA	0.45 mm	120 °	Surface Mount	1 mm	0.5 mm	2-SMD	Colorless	626 nm	30 mcd
Everlight Electronics Co Ltd EAST1005RA1	1 mm	0.5 mm	2.05 V	Red	Rectangle with Flat Top	650 nm	0402 (1005 Metric)	Standard	Clear		20 mA	0.45 mm	120 °	Surface Mount	1 mm	0.5 mm	2-SMD	Colorless	640 nm	85 mcd
Everlight Electronics Co Ltd EAST1005WA0	1 mm	0.5 mm	3 V	White	Rectangle with Flat Top		0402 (1005 Metric)	Standard	Diffused		5 mA	0.45 mm	130 °	Surface Mount	1 mm	0.5 mm	2-SMD	Yellow		79 mcd
