EDF1 Series

Catalog

BRIDGE RECT 1PHASE 150V 1A DFS

Part	Current - Average Rectified (Io)	Voltage - Peak Reverse (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Diode Type	Mounting Type	Technology	Current - Reverse Leakage @ Vr	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case

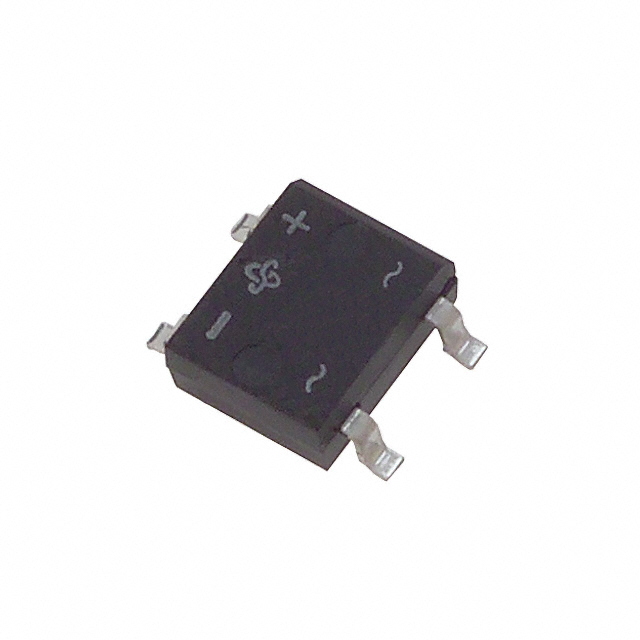

Vishay General Semiconductor - Diodes Division EDF1CS-E3/45	1 A	150 V	1.05 V	Single Phase	Surface Mount	Standard	5 µA	DFS	-55 °C	150 °C	4-SMD Gull Wing

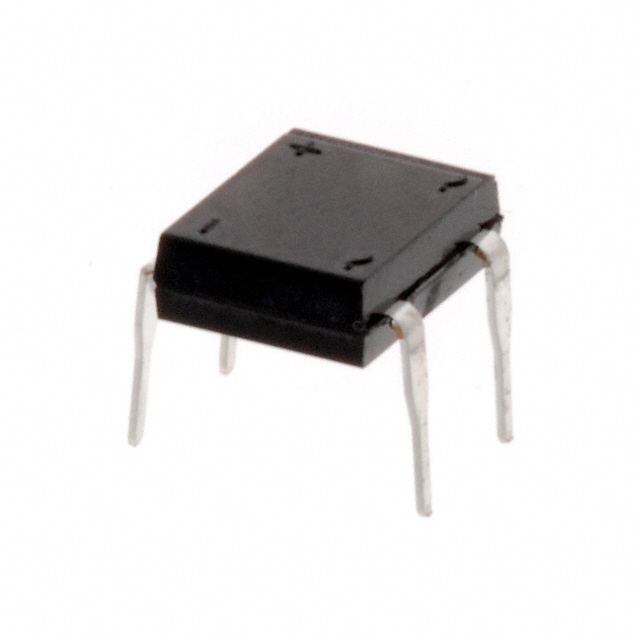

Vishay General Semiconductor - Diodes Division EDF1DM/45	1 A	200 V	1.05 V	Single Phase	Through Hole	Standard	5 µA	DFM	-55 °C	150 °C	4-EDIP (0.300" 7.62mm)
Vishay General Semiconductor - Diodes Division EDF1DS-E3/45	1 A	200 V	1.05 V	Single Phase	Surface Mount	Standard	5 µA	DFS	-55 °C	150 °C	4-SMD Gull Wing
Vishay General Semiconductor - Diodes Division EDF1BS-E3/45	1 A	100 V	1.05 V	Single Phase	Surface Mount	Standard	5 µA	DFS	-55 °C	150 °C	4-SMD Gull Wing
Vishay General Semiconductor - Diodes Division EDF1AS-E3/77	1 A	50 V	1.05 V	Single Phase	Surface Mount	Standard	5 µA	DFS	-55 °C	150 °C	4-SMD Gull Wing
Vishay General Semiconductor - Diodes Division EDF1DM-E3/45	1 A	200 V	1.05 V	Single Phase	Through Hole	Standard	5 µA	DFM	-55 °C	150 °C	4-EDIP (0.300" 7.62mm)
Vishay General Semiconductor - Diodes Division EDF1CS-E3/77	1 A	150 V	1.05 V	Single Phase	Surface Mount	Standard	5 µA	DFS	-55 °C	150 °C	4-SMD Gull Wing
