1734742 Series

FFC & FPC Connectors 100X100 REC 1X07P VERTICAL

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

FFC & FPC Connectors 100X100 REC 1X07P VERTICAL

Catalog

FFC & FPC Connectors 100X100 REC 1X07P VERTICAL

Part	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Mounting Type	Contact Material	Material Flammability Rating	Flat Flex Type	Connector/Contact Type	Current Rating (Amps)	Contact Finish	Contact Finish Thickness	Voltage Rating	Cable End Type	Locking Feature	Termination	Features	Height Above Board	Height Above Board	Housing Material	FFC, FCB Thickness	Housing Color	Number of Positions	Actuator Color	Mating Cycles	FFC, FCB Thickness [custom]
TE Connectivity Raychem Cable Protection 3-1734742-5	Thermoplastic	85 °C	-20 C	0.5 mm	0.02 in	Surface Mount	Phosphor Bronze	UL94 V-0	FFC FPC	Contacts Vertical - 1 Sided	0.5 A	Gold	Flash	50 V	Straight Tapered	Slide Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.163 in	4.15 mm	Thermoplastic Glass Filled	0.3 mm	Black	35	Brown
TE Connectivity Raychem Cable Protection 1-1734742-7	Thermoplastic	85 °C	-20 C	0.5 mm	0.02 in	Surface Mount	Phosphor Bronze	UL94 V-0	FFC FPC	Contacts Vertical - 1 Sided	0.5 A	Gold	Flash	50 V	Straight Tapered	Slide Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.163 in	4.15 mm	Thermoplastic Glass Filled	0.3 mm	Black		Brown
TE Connectivity Raychem Cable Protection 2-1734742-1	Thermoplastic	85 °C	-20 C	0.5 mm	0.02 in	Surface Mount	Phosphor Bronze	UL94 V-0	FFC FPC	Contacts Vertical - 1 Sided	0.5 A	Gold	Flash	50 V	Straight Tapered	Slide Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.163 in	4.15 mm	Thermoplastic Glass Filled	0.3 mm	Black	21	Brown
TE Connectivity Raychem Cable Protection 3-1734742-8	Thermoplastic	85 °C	-20 C	0.5 mm	0.02 in	Surface Mount	Phosphor Bronze	UL94 V-0	FFC FPC	Contacts Vertical - 1 Sided	0.5 A	Gold	Flash	50 V	Straight Tapered	Slide Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.163 in	4.15 mm	Thermoplastic Glass Filled	0.3 mm	Black	38	Brown

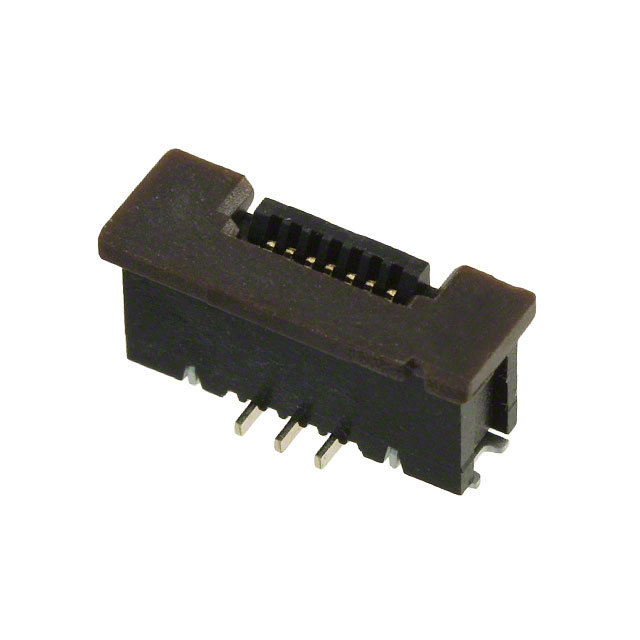

TE Connectivity Raychem Cable Protection 1734742-7	Thermoplastic	85 °C	-20 C	0.5 mm	0.02 in	Surface Mount	Phosphor Bronze	UL94 V-0	FFC FPC	Contacts Vertical - 1 Sided	0.5 A	Gold	Flash	50 V	Straight Tapered	Slide Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.163 in	4.15 mm	Thermoplastic Glass Filled	0.3 mm	Black	7	Brown
TE Connectivity Raychem Cable Protection 3-1734742-1	Thermoplastic	85 °C	-20 C	0.5 mm	0.02 in	Surface Mount	Phosphor Bronze	UL94 V-0	FFC FPC	Contacts Vertical - 1 Sided	0.5 A	Gold	Flash	50 V	Straight Tapered	Slide Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.163 in	4.15 mm	Thermoplastic Glass Filled	0.3 mm	Black	31	Brown

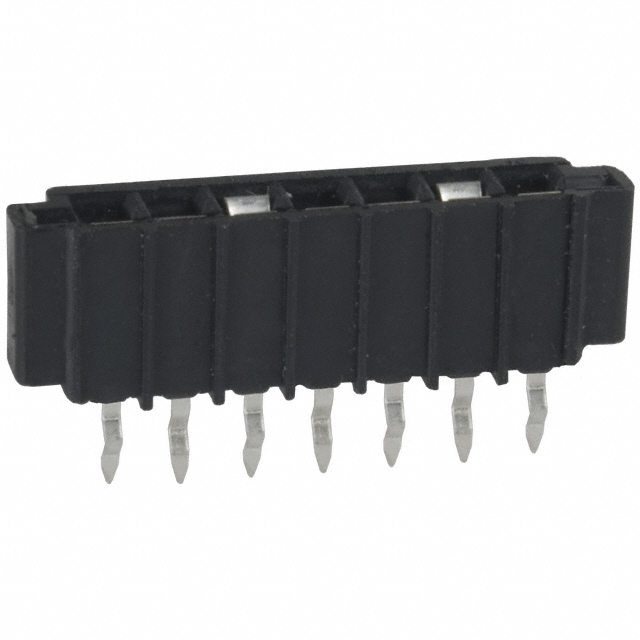

TE Connectivity Raychem Cable Protection 5-520315-7		105 ░C	-55 °C	2.54 mm	0.1 in	Through Hole	Phosphor Bronze	UL94 V-0	FFC FPC	Contacts Vertical - 1 Sided		Tin		250 VDC	Straight		Kinked Pin		0.273 in	6.93 mm	Polyester Thermoplastic Glass Filled		Black	7		25	0.13 mm 0.38 mm

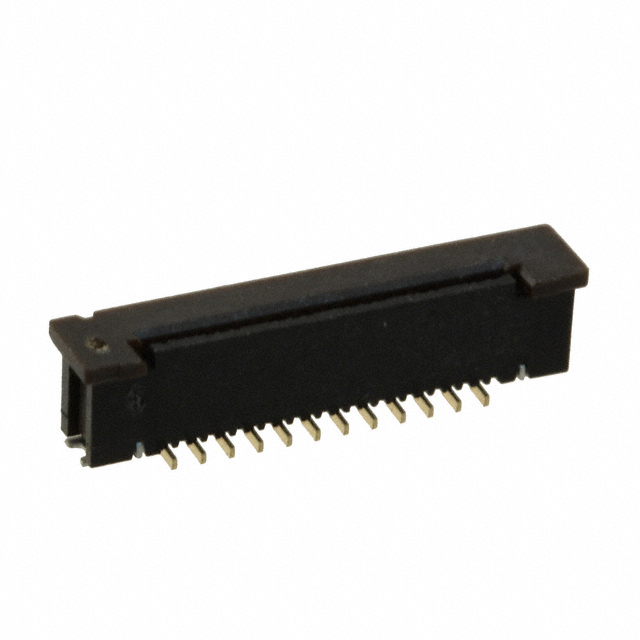

TE Connectivity Raychem Cable Protection 2-1734742-4	Thermoplastic	85 °C	-20 C	0.5 mm	0.02 in	Surface Mount	Phosphor Bronze	UL94 V-0	FFC FPC	Contacts Vertical - 1 Sided	0.5 A	Gold	Flash	50 V	Straight Tapered	Slide Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.163 in	4.15 mm	Thermoplastic Glass Filled	0.3 mm	Black	24	Brown
TE Connectivity Raychem Cable Protection 3-1734742-7	Thermoplastic	85 °C	-20 C	0.5 mm	0.02 in	Surface Mount	Phosphor Bronze	UL94 V-0	FFC FPC	Contacts Vertical - 1 Sided	0.5 A	Gold	Flash	50 V	Straight Tapered	Slide Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.163 in	4.15 mm	Thermoplastic Glass Filled	0.3 mm	Black	37	Brown

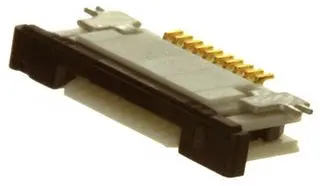

TE Connectivity Raychem Cable Protection 1-1734742-0	Thermoplastic	85 °C	-20 C	0.5 mm	0.02 in	Surface Mount	Phosphor Bronze	UL94 V-0	FFC FPC	Contacts Vertical - 1 Sided	0.5 A	Gold	Flash	50 V	Straight Tapered	Slide Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.163 in	4.15 mm	Thermoplastic Glass Filled	0.3 mm	Black	10	Brown
