DC12.2202 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Filter Type	Voltage Rating - Appliance Inlet	Ingress Protection	Switch Features	Current Rating - Filter	Connector Style	Approval Agency	Connector Type	Material Flammability Rating	Features	Current Rating - Appliance Inlet	Termination	Termination	Termination	Number of Positions

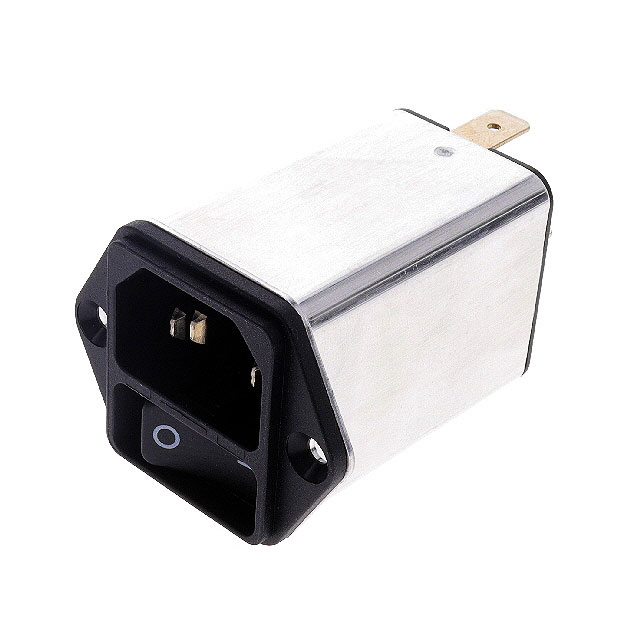

SCHURTER Inc. DC12.2202.001	Flange Panel Mount	33.1 mm	29.1 mm	Filtered (EMI RFI) - Commercial Medical	250 VAC	IP40	Switch On-Off	2 A	IEC 320-C14	CQC cULus ENEC	Receptacle Male Blades - Module	UL94 V-0	Shielded V-Lock Notch	10 A	6.3 mm	Quick Connect	0.25 "

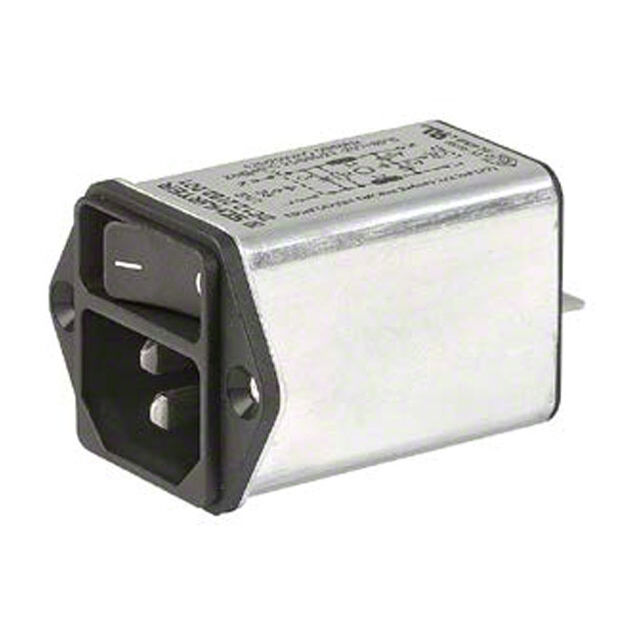

SCHURTER Inc. DC12.2202.031	Flange Panel Mount	33.1 mm	29.1 mm	Filtered (EMI RFI) - Commercial Medical	250 VAC	IP40	Switch On-Off	2 A	IEC 320-C18	CQC cULus ENEC	Receptacle Male Blades - Module	UL94 V-0	Shielded V-Lock Notch	10 A	6.3 mm	Quick Connect	0.25 "	2
SCHURTER Inc. DC12.2202.021	Flange Panel Mount	33.1 mm	29.1 mm	Filtered (EMI RFI) - Commercial Medical	250 VAC	IP40	Switch On-Off	2 A	IEC 320-C18	CQC cULus ENEC	Receptacle Male Blades - Module	UL94 V-0	Shielded V-Lock Notch	10 A	6.3 mm	Quick Connect	0.25 "	2
