2SB115 Series

Catalog

TRANS PNP 80V 20A TOP-3F

Part	Package / Case	Transistor Type	Vce Saturation (Max) @ Ib, Ic	Supplier Device Package	Mounting Type	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Frequency - Transition	Operating Temperature

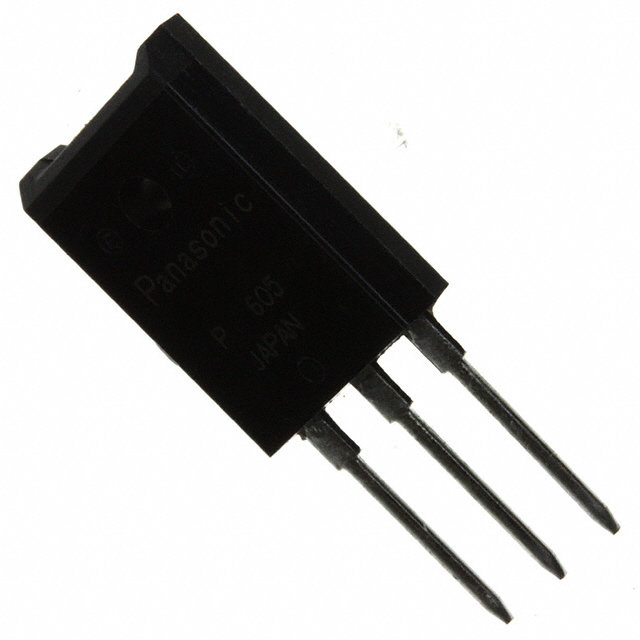

Panasonic Electronic Components 2SB11560P	TOP-3F	PNP	1.5 V	TOP-3F-A1	Through Hole	20 A	10 µA	3 W	130	80 V	30 MHz	150 °C
