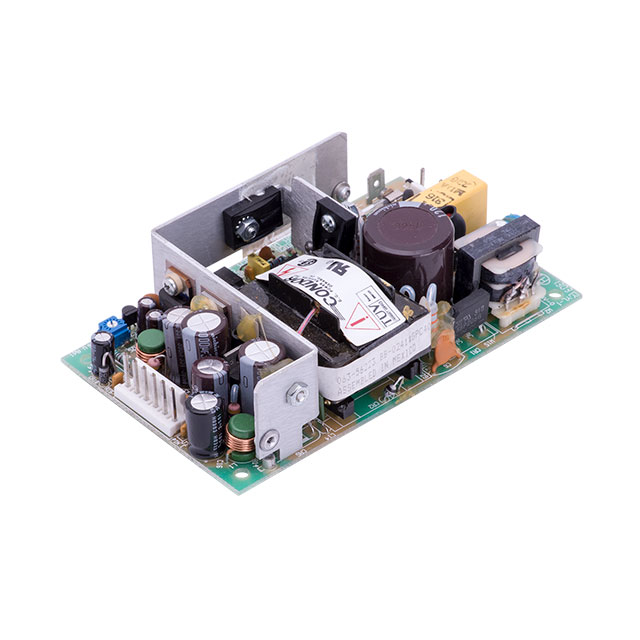

GPM40 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC CONVERTER 5.1V +/-12V 40W
| Part | Minimum Load Required | Type | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Mounting Type | Approval Agency | Current - Output 1 | Features | Voltage - Output 2 | Voltage - Output 1 | Number of Outputs | Power (Watts) | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Current - Output 2 | Voltage - Output 3 | Current - Output 3 | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | Open Frame | 0 °C | 50 °C | Medical | Chassis Mount | CE cURus TUV | 4 A | Adjustable Output Remote Sense Universal Input | 12 V | 5.1 V | 3 | 40 W 50 W | 3 " | 32.5 mm | 127 mm | 76.2 mm | 1.28 " | 5 " | 2 A | -12 V | 400 mA | 70 % | |
 SL POWER / Advanced Energy | Open Frame | 0 °C | 50 °C | Medical | Chassis Mount | CE cURus TUV | 4 A | Adjustable Output Remote Sense Universal Input | 15 V | 5.1 V | 3 | 40 W 50 W | 3 " | 32.5 mm | 127 mm | 76.2 mm | 1.28 " | 5 " | 2 A | -15 V | 400 mA | 70 % |
