213500 Series

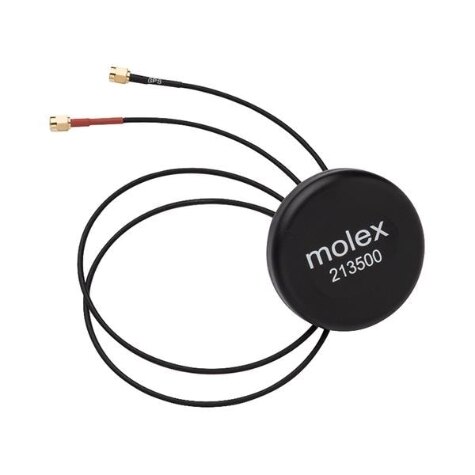

2-in-1 LTE/GPS External Antenna, 75.00mm Diameter, 500.00mm Cables with SMA Male Connectors
Manufacturer: Molex
Catalog
2-in-1 LTE/GPS External Antenna, 75.00mm Diameter, 500.00mm Cables with SMA Male Connectors
Beta
⌘K
2-in-1 LTE/GPS External Antenna, 75.00mm Diameter, 500.00mm Cables with SMA Male Connectors
2-in-1 LTE/GPS External Antenna, 75.00mm Diameter, 500.00mm Cables with SMA Male Connectors
2-in-1 LTE/GPS External Antenna, 75.00mm Diameter, 500.00mm Cables with SMA Male Connectors
| Part | RF Family/Standard | Frequency (Center/Band) | Number of Bands | Termination | Gain | Applications | Mounting Type | Features | Frequency Range [Min] | Frequency Range [Max] | Frequency Group | Antenna Type | Height (Max) [Max] | Height (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Cellular Navigation | 1.575 GHz 2.2 GHz 892 MHz | 3 | SMA Male (2) | 0.77 dBi 3.73 dBi | GPS LTE | Adhesive Panel Mount | Cable - 500mm | 1.574 GHz 1.71 GHz 824 MHz | 1.576 GHz 2.69 GHz 960 MHz | Wide Band | Module | 14.9 mm | 0.587 in |
