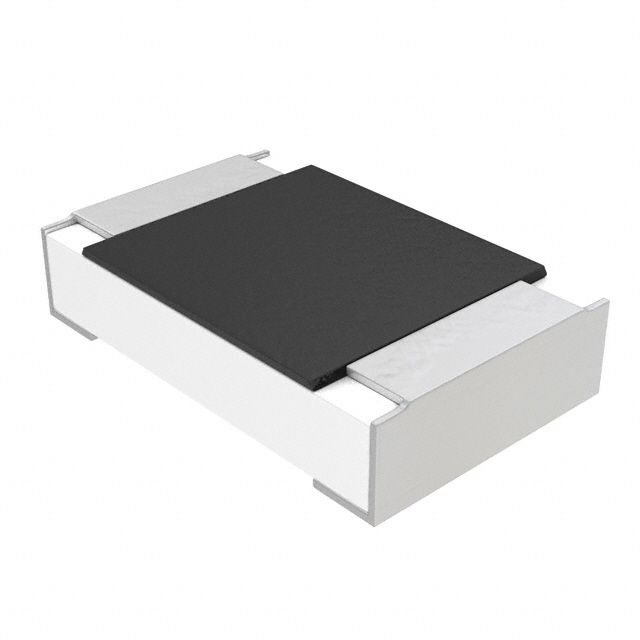

MCU0805 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

Catalog

RES 147 OHM 0.1% 1/8W 0805

...

Part	Resistance	Features	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Temperature Coefficient	Composition	Power (Watts)	Power (Watts)	Number of Terminations	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings
Vishay General Semiconductor - Diodes Division MCU08050D1470BP100	147 Ohms	Anti-Sulfur	0805	0.022 in	0.55 mm	0805	25 ppm/°C	Thin Film	0.125 W	0.125 W	2	2 mm	0.079 in	0.049 in	1.25 mm	-55 °C	125 °C	0.1 %
Vishay General Semiconductor - Diodes Division MCU0805HC2003FP100	200000 Ohms		0805	0.022 in	0.55 mm	0805	50 ppm/°C	Thin Film	0.125 W	0.125 W	2	2 mm	0.079 in	0.049 in	1.25 mm	-55 °C	125 °C	1 %
Vishay General Semiconductor - Diodes Division MCU08050D4752BP500	47.5 kOhms	Anti-Sulfur	0805	0.022 in	0.55 mm	0805	25 ppm/°C	Thin Film	0.125 W	0.125 W	2	2 mm	0.079 in	0.049 in	1.25 mm	-55 °C	125 °C	0.1 %
Vishay General Semiconductor - Diodes Division MCU08050D3302BP100	33 kOhms	Anti-Sulfur	0805	0.022 in	0.55 mm	0805	25 ppm/°C	Thin Film	0.125 W	0.125 W	2	2 mm	0.079 in	0.049 in	1.25 mm	-55 °C	125 °C	0.1 %
Vishay General Semiconductor - Diodes Division MCU08050D6340BP100	634 Ohms	Anti-Sulfur	0805	0.022 in	0.55 mm	0805	25 ppm/°C	Thin Film	0.125 W	0.125 W	2	2 mm	0.079 in	0.049 in	1.25 mm	-55 °C	125 °C	0.1 %
Vishay General Semiconductor - Diodes Division MCU08050D1540BP100	154 Ohms	Anti-Sulfur	0805	0.022 in	0.55 mm	0805	25 ppm/°C	Thin Film	0.125 W	0.125 W	2	2 mm	0.079 in	0.049 in	1.25 mm	-55 °C	125 °C	0.1 %
Vishay General Semiconductor - Diodes Division MCU0805PD3321DP500	3.32 kOhms	Anti-Sulfur Automotive AEC-Q200	0805			0805	25 ppm/°C	Thin Film	0.125 W	0.125 W	2	2 mm	0.079 in	0.049 in	1.25 mm	-55 °C	347 °F		0.024 in	0.62 mm	AEC-Q200
Vishay General Semiconductor - Diodes Division MCU08050D1620BP100	162 Ohms	Anti-Sulfur	0805	0.022 in	0.55 mm	0805	25 ppm/°C	Thin Film	0.125 W	0.125 W	2	2 mm	0.079 in	0.049 in	1.25 mm	-55 °C	125 °C	0.1 %
Vishay General Semiconductor - Diodes Division MCU08050C2744FP500	2.74 MOhms	Anti-Sulfur	0805	0.022 in	0.55 mm	0805	50 ppm/°C	Thin Film	0.125 W	0.125 W	2	2 mm	0.079 in	0.049 in	1.25 mm	-55 °C	155 °C	1 %
Vishay General Semiconductor - Diodes Division MCU08050C7879FP500	78.7 Ohms	Anti-Sulfur	0805	0.022 in	0.55 mm	0805	50 ppm/°C	Thin Film	0.125 W	0.125 W	2	2 mm	0.079 in	0.049 in	1.25 mm	-55 °C	155 °C	1 %
