2132499 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

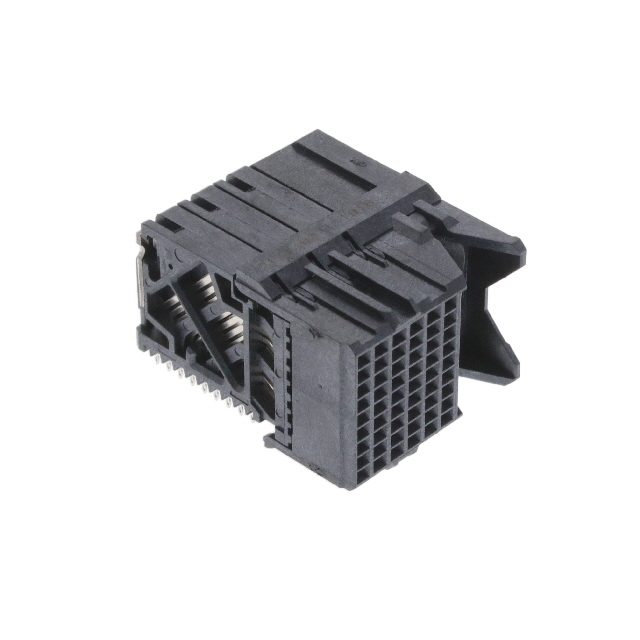

IMP100S,R,RA3P6C,RG,39
| Part | Number of Columns | Color | Material Flammability Rating | Connector Usage | Number of Rows | Contact Finish | Mounting Type | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Features | Number of Positions | Connector Type | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Number of Positions Loaded | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 6 | Black | UL94 V-0 | Daughtercard | 9 | Gold | Board Edge Right Angle Through Hole | 750 mA | 0.76 Ám | 30 Áin | Board Guide | 54 | Receptacle Female Sockets | 36 | 18 | 85 °C | -55 °C | Press-Fit | All | 0.075 in | 1.91 mm |
