9937 Series
Manufacturer: Belden Inc.
Beta
⌘K

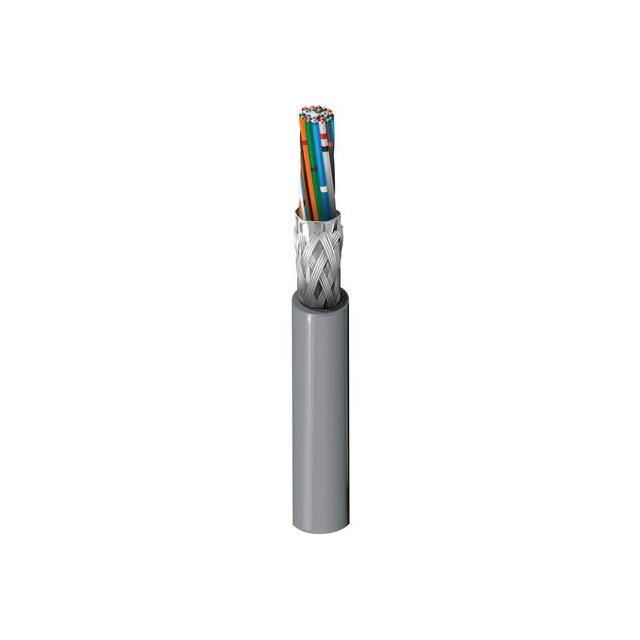

CABLE 25COND 24AWG CHRM SHD
| Part | Shield Material | Shield Coverage | Usage | Ratings | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Number of Conductors [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Length | Length | Cable Type | Features | Wire Gauge | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Computer | UL Style 2919 | Foam Polyethylene (FPE) | 80 °C | -30 ░C | Braid Foil | 0.445 in | 11.3 mm | Chrome | 7 | 32 AWG | Copper Tinned | 25 | 0.049 " | 1.245 mm | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Multi-Conductor | Drain Wire | 24 AWG | ||
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Computer | UL Style 2919 | Foam Polyethylene (FPE) | 80 °C | -30 ░C | Braid Foil | 0.445 in | 11.3 mm | Chrome | 7 | 32 AWG | Copper Tinned | 25 | 0.049 " | 1.245 mm | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Drain Wire | 24 AWG | 100 ft | 30.5 m | ||
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Computer | UL Style 2919 | Foam Polyethylene (FPE) | 80 °C | -30 ░C | Braid Foil | 0.445 in | 11.3 mm | Chrome | 7 | 32 AWG | Copper Tinned | 25 | 0.049 " | 1.245 mm | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Multi-Conductor | Drain Wire | 24 AWG |
