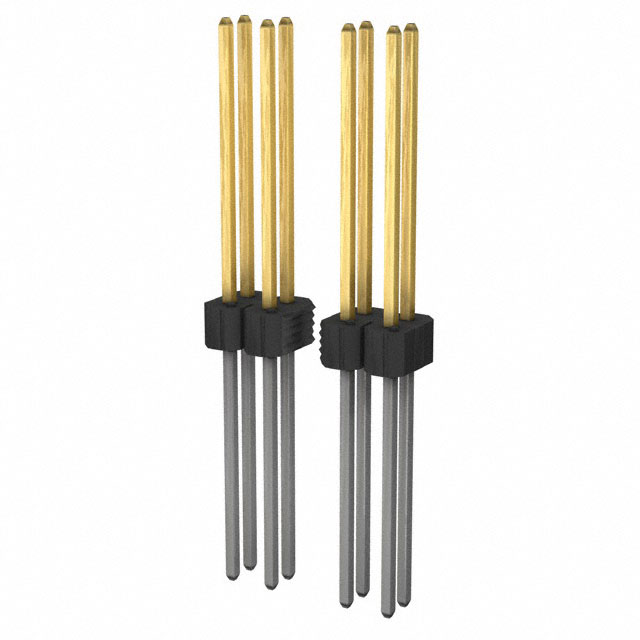

86834 Series

Catalog

CONN HEADER VERT 72POS 2.54MM

Part	Fastening Type	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Shape	Insulation Color	Material Flammability Rating	Insulation Height	Insulation Height	Mounting Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Contact Type	Contact Finish - Mating	Connector Type	Number of Positions
Amphenol ICC (FCI) 86834-172	Push-Pull	33.91 mm	1.335 in	14.86 mm	0.585 in	Phosphor Bronze	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Square	Black	UL94 V-0	0.1 in	2.54 mm	Through Hole	Unshrouded	30 Áin	0.76 Ám	All	0.65 in	16.51 mm	Male Pin	Gold or Gold GXT™	Header	72
