PTC04 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 4POS 2.54MM

Part	Connector Type	Termination	Number of Rows	Contact Type	Current Rating (Amps)	Material Flammability Rating	Contact Finish - Post	Shrouding	Overall Contact Length [x]	Overall Contact Length [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Fastening Type	Style	Contact Shape	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Mounting Type	Insulation Material	Contact Length - Post	Contact Length - Post	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Overall Contact Length	Overall Contact Length	Overall Contact Length	Contact Length - Post [custom]	Contact Length - Post [custom]

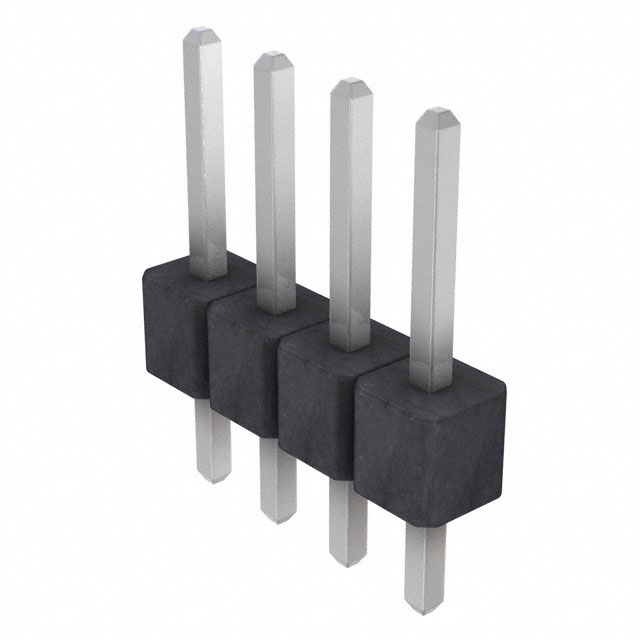

Sullins Connector Solutions PTC04SAAN	Header	Solder	1	Male Pin	3 A	UL94 V-0	Tin	Unshrouded	11.43 mm	0.45 in	100 çin	2.54 çm	Copper Alloy	Push-Pull	Board to Board Cable	Square	0.1 "	2.54 mm	All	0.1 in	2.54 mm	4	2.54 µm	100 µin	0.23 in	5.84 mm	Through Hole	Polyester Thermoplastic	3.05 mm	0.12 in	Black

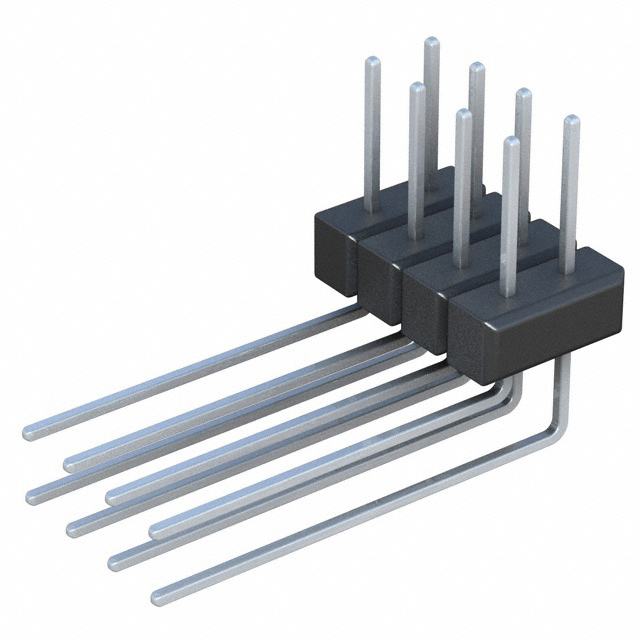

Sullins Connector Solutions PTC04DBEN	Header	Solder		Male Pin	3 A	UL94 V-0	Tin	Unshrouded			100 çin	2.54 çm	Copper Alloy	Push-Pull	Board to Board Cable	Square	0.1 "	2.54 mm	All			8	2.54 µm	100 µin	0.23 in	5.84 mm	Right Angle Through Hole	Polyester Thermoplastic	13.21 mm	0.52 in	Black	0.1 in	2.54 mm	6.1 mm	0.24 in	2
Sullins Connector Solutions PTC04SABN	Header	Solder	1	Male Pin	3 A	UL94 V-0	Tin	Unshrouded			100 çin	2.54 çm	Copper Alloy	Push-Pull	Board to Board Cable	Square	0.1 "	2.54 mm	All	0.1 in	2.54 mm	4	2.54 µm	100 µin	0.23 in	5.84 mm	Through Hole	Polyester Thermoplastic	5.84 mm	0.23 "	Black						0.56 in	14.22 mm

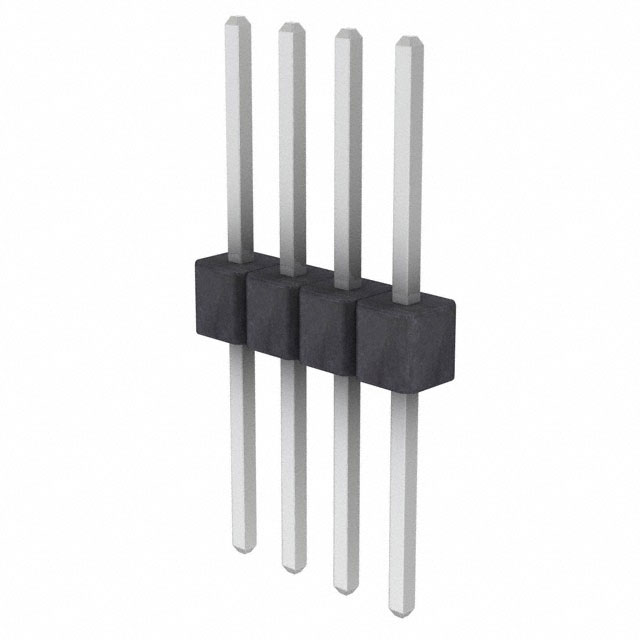

Sullins Connector Solutions PTC04SFCN	Header	Solder	1	Male Pin	3 A	UL94 V-0	Tin	Unshrouded			100 çin	2.54 çm	Copper Alloy	Push-Pull	Board to Board Cable	Square	0.1 "	2.54 mm	All	0.1 in	2.54 mm	4	2.54 µm	100 µin	0.318 in	8.08 mm	Through Hole	Polyester Thermoplastic	8.13 mm	0.32 in	Black							18.75 mm	0.738 in
Sullins Connector Solutions PTC04SAHN	Header	Solder	1	Male Pin	3 A	UL94 V-0	Tin	Unshrouded			100 çin	2.54 çm	Copper Alloy	Push-Pull	Board to Board Cable	Square	0.1 "	2.54 mm	All	0.1 in	2.54 mm	4	2.54 µm	100 µin	0.23 in	5.84 mm	Through Hole	Polyester Thermoplastic	20.83 mm	0.82 in	Black						1.15 in	29.21 mm
Sullins Connector Solutions PTC04DAHN	Header	Solder		Male Pin	3 A	UL94 V-0	Tin	Unshrouded			100 çin	2.54 çm	Copper Alloy	Push-Pull	Board to Board Cable	Square	0.1 "	2.54 mm	All	0.1 in	2.54 mm	8	2.54 µm	100 µin	0.23 in	5.84 mm	Through Hole	Polyester Thermoplastic	20.83 mm	0.82 in	Black	0.1 in	2.54 mm			2	1.15 in	29.21 mm

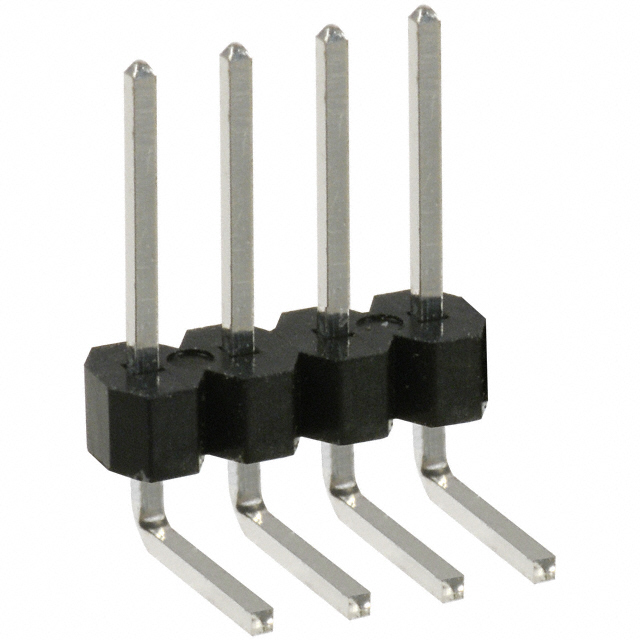

Sullins Connector Solutions PTC04SGBN	Header	Solder	1	Male Pin	3 A	UL94 V-0	Tin	Unshrouded			100 çin	2.54 çm	Copper Alloy	Push-Pull	Board to Board Cable	Square	0.1 "	2.54 mm	All	0.14 in	3.56 mm	4	2.54 µm	100 µin	0.318 in	8.08 mm	Right Angle Through Hole	Polyester Thermoplastic	5.58 mm	0.22 in	Black

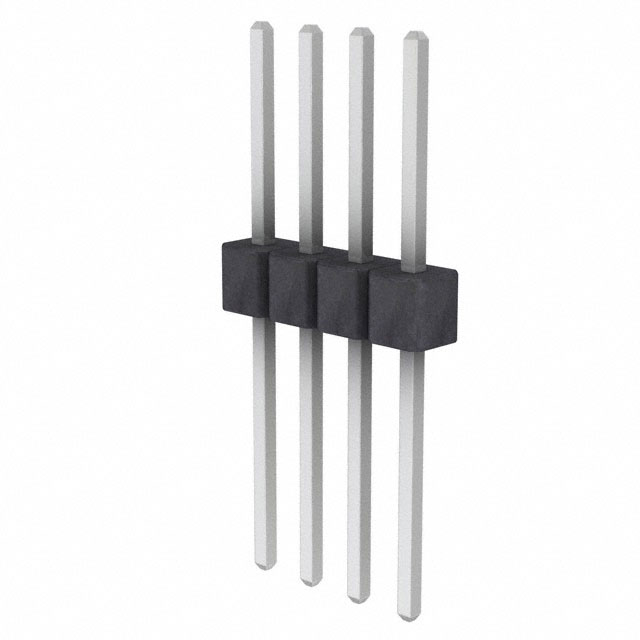

Sullins Connector Solutions PTC04SFDN	Header	Solder	1	Male Pin	3 A	UL94 V-0	Tin	Unshrouded			100 çin	2.54 çm	Copper Alloy	Push-Pull	Board to Board Cable	Square	0.1 "	2.54 mm	All	0.1 in	2.54 mm	4	2.54 µm	100 µin	0.318 in	8.08 mm	Through Hole	Polyester Thermoplastic	10.67 mm	0.42 in	Black						0.838 in	21.29 mm

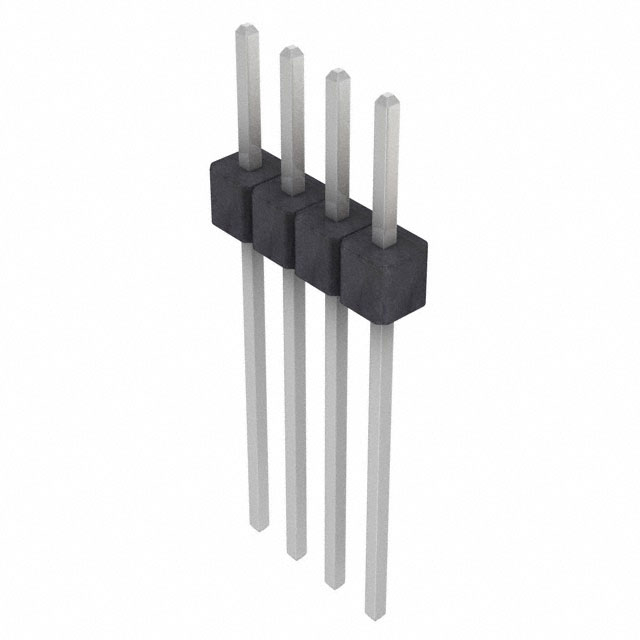

Sullins Connector Solutions PTC04SAFN	Header	Solder	1	Male Pin	3 A	UL94 V-0	Tin	Unshrouded			100 çin	2.54 çm	Copper Alloy	Push-Pull	Board to Board Cable	Square	0.1 "	2.54 mm	All	0.1 in	2.54 mm	4	2.54 µm	100 µin	0.23 in	5.84 mm	Through Hole	Polyester Thermoplastic			Black						0.95 in	24.13 mm		15.75 mm	0.62 "
Sullins Connector Solutions PTC04DFAN	Header	Solder		Male Pin	3 A	UL94 V-0	Tin	Unshrouded	13.67 mm	0.538 in	100 çin	2.54 çm	Copper Alloy	Push-Pull	Board to Board Cable	Square	0.1 "	2.54 mm	All	0.1 in	2.54 mm	8	2.54 µm	100 µin	0.318 in	8.08 mm	Through Hole	Polyester Thermoplastic	3.05 mm	0.12 in	Black	0.1 in	2.54 mm			2
