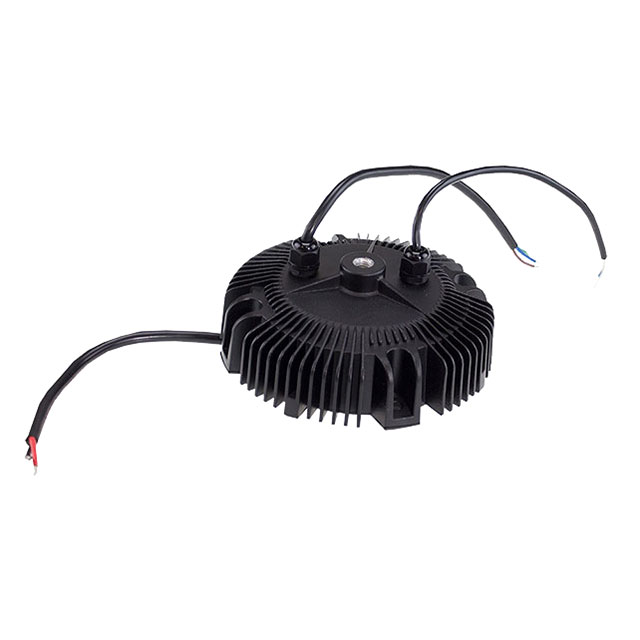

HBGC-300 Series

Catalog

300W CONSTANT POWER MODE LED DRI

Part	Mounting Type	Termination Style	Voltage - Input (Min) [Min]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Voltage - Isolation	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Number of Outputs	Efficiency	Voltage - Output [Min]	Voltage - Output [Max]	Current - Output (Max) [Max]	Power (Watts)	Dimming	Type	Topology	Features
MEAN WELL USA Inc. HBGC-300-M-A	Chassis Mount	Wire Leads	90 VAC	CB CCC CE cURus	80 °C	-40 C	IP67	3750 VDC	191.5 mm	2.72 in	7.54 in	69 mm	305 VAC	1	93.5 %	58 V	116 V	2.8 A	302 W	Analog PWM	Constant Current	AC DC Converter	OTP OVP SCP
MEAN WELL USA Inc. HBGC-300-M-AB	Chassis Mount	Wire Leads	90 VAC	CB CCC CE cURus	80 °C	-40 C	IP67	3750 VDC	191.5 mm	2.72 in	7.54 in	69 mm	305 VAC	1	93.5 %	58 V	116 V	2.8 A	302 W	Analog PWM	Constant Current	AC DC Converter	OTP OVP SCP
MEAN WELL USA Inc. HBGC-300-H-A	Chassis Mount	Wire Leads	90 VAC	CB CCC CE cURus	80 °C	-40 C	IP67	3750 VDC	191.5 mm	2.72 in	7.54 in	69 mm	305 VAC	1	92.5 %	29 V	58 V	5.6 A	302 W	Analog PWM	Constant Current	AC DC Converter	OTP OVP SCP
