DNFR18 Series

Catalog

QUICK DISCONNECT TERMINAL, DNFR-FIB SERIES, FEMALE QUICK DISCONNECT, 6.35MM X 0.81MM

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Features	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Contact Finish	Tab Thickness	Tab Thickness	Termination	Gender	Insulation	Contact Material	Tab Width [x]	Tab Width [x]	Color	Tab Width	Tab Width

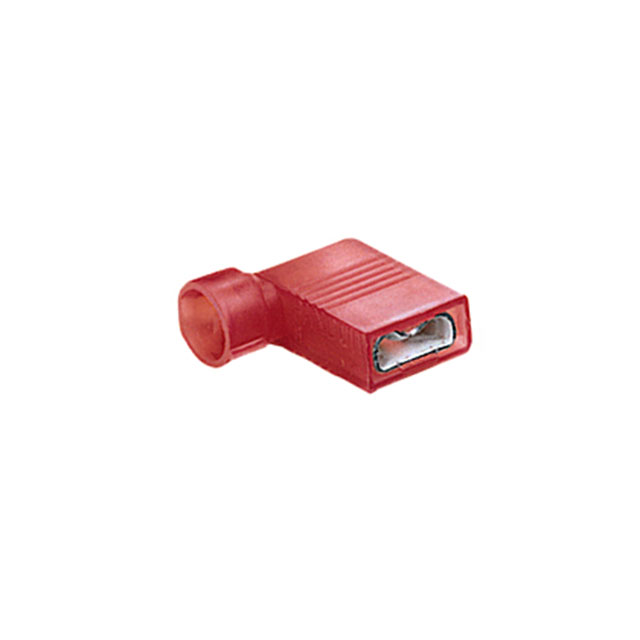

Panduit Corp DNFR18-250FIB-L	4.52 mm	0.178 in	Butted Seam	Free Hanging (In-Line) Right Angle	22 AWG	17.5 AWG	Angled - 90° Flag	Tin	0.81 mm	0.032 in	Crimp	Female	Fully Insulated	Brass	6.35 mm	0.25 in	Red

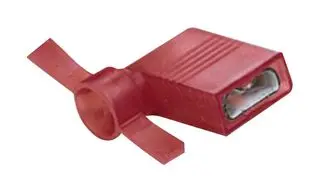

Panduit Corp DNFR18206FIB-KD	4.57 mm	0.18 in	Butted Seam	Free Hanging (In-Line) Right Angle	22 AWG	17.5 AWG	Angled - 90° Flag	Tin	0.51 mm	0.02 in	Crimp	Female	Fully Insulated	Brass			Red	0.187 " 0.205 in	4.75 mm 5.21 mm
Panduit Corp DNFR18-205FIB-M	4.52 mm	0.178 in	Butted Seam	Free Hanging (In-Line) Right Angle	22 AWG	17.5 AWG	Angled - 90° Flag	Tin	0.81 mm	0.032 in	Crimp	Female	Fully Insulated	Brass			Red	0.187 " 0.205 in	4.75 mm 5.21 mm
Panduit Corp DNFR18205FIB-KD	4.57 mm	0.18 in	Butted Seam	Free Hanging (In-Line) Right Angle	22 AWG	17.5 AWG	Angled - 90° Flag	Tin	0.81 mm	0.032 in	Crimp	Female	Fully Insulated	Brass			Red	0.187 " 0.205 in	4.75 mm 5.21 mm

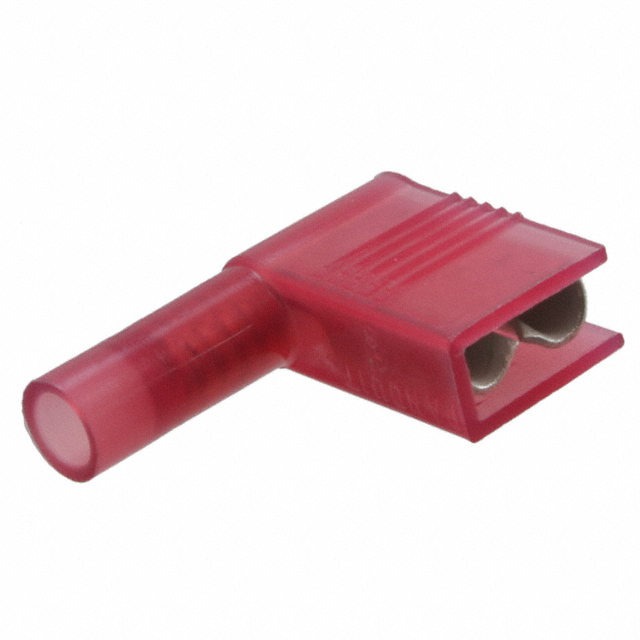

Panduit Corp DNFR18-206B-M	3.3 mm	0.13 in	Butted Seam	Free Hanging (In-Line) Right Angle	22 AWG	17.5 AWG	Angled - 90° Flag	Tin	0.51 mm	0.02 in	Crimp	Female	Fully Insulated	Brass			Red	0.187 " 0.205 in	4.75 mm 5.21 mm
Panduit Corp DNFR18-205B-M	3.3 mm	0.13 in	Butted Seam	Free Hanging (In-Line) Right Angle	22 AWG	17.5 AWG	Angled - 90° Flag	Tin	0.81 mm	0.032 in	Crimp	Female	Fully Insulated	Brass			Red	0.187 " 0.205 in	4.75 mm 5.21 mm
Panduit Corp DNFR18-206FIB-L	4.52 mm	0.178 in	Butted Seam	Free Hanging (In-Line) Right Angle	22 AWG	17.5 AWG	Angled - 90° Flag	Tin	0.51 mm	0.02 in	Crimp	Female	Fully Insulated	Brass			Red	0.187 " 0.205 in	4.75 mm 5.21 mm
Panduit Corp DNFR18-206B-L	3.3 mm	0.13 in		Free Hanging (In-Line) Right Angle	22 AWG	17.5 AWG	Angled - 90° Flag	Tin	0.51 mm	0.02 in	Crimp	Female	Fully Insulated	Brass			Red	0.187 " 0.205 in	4.75 mm 5.21 mm
Panduit Corp DNFR18250FIB-KD	4.57 mm	0.18 in	Butted Seam	Free Hanging (In-Line) Right Angle	22 AWG	17.5 AWG	Angled - 90° Flag	Tin	0.81 mm	0.032 in	Crimp	Female	Fully Insulated	Brass	6.35 mm	0.25 in	Red
Panduit Corp DNFR18-250B-L	3.3 mm	0.13 in	Butted Seam	Free Hanging (In-Line) Right Angle	22 AWG	17.5 AWG	Angled - 90° Flag	Tin	0.81 mm	0.032 in	Crimp	Female	Fully Insulated	Brass			Red	0.187 " 0.205 in	4.75 mm 5.21 mm
