892-030 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 30POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Card Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows [custom]	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Features	Pitch	Pitch	Mounting Type	Gender	Contact Type	Contact Finish	Read Out	Termination Rows	Number of Rows

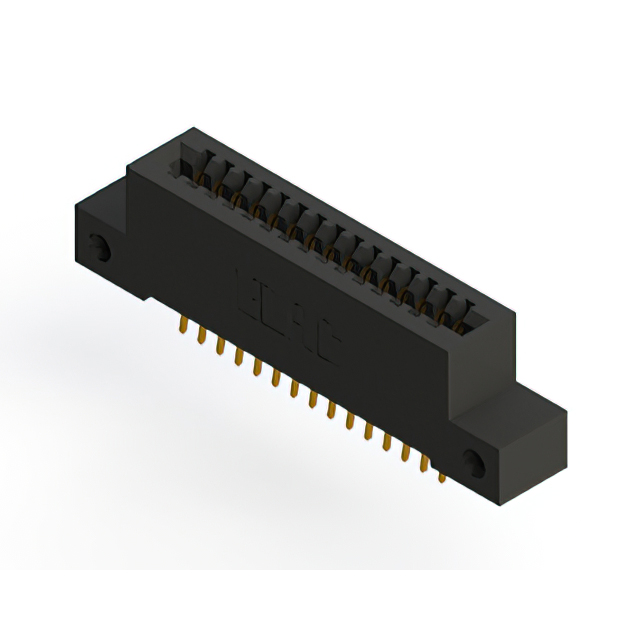

EDAC Inc. 892-030-556-212	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Non Specified - Dual Edge	Solder	0.25 Ám	10 Áin	Black	30	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	2	15	125 °C	-40 C	Card Extender	0.1 "	2.54 mm	Board Edge Straddle Mount	Female	Cantilever	Gold	Dual

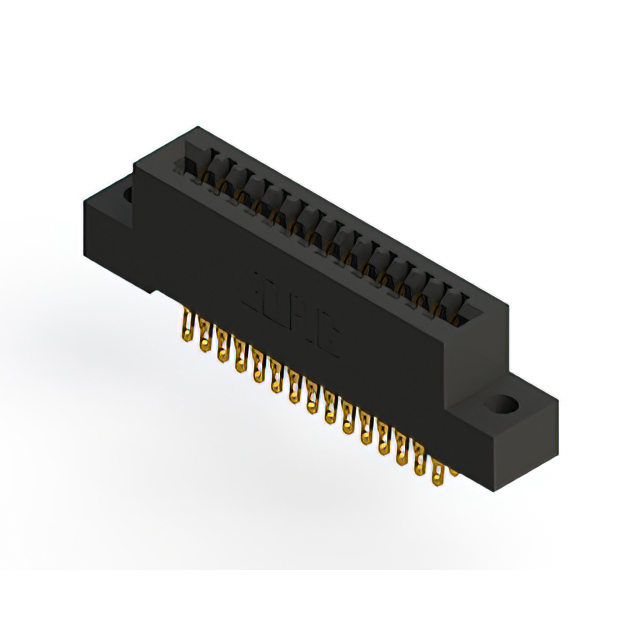

EDAC Inc. 892-030-555-202	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Non Specified - Dual Edge	Solder	0.25 Ám	10 Áin	Black	30	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	2	15	125 °C	-40 C	Card Extender	0.1 "	2.54 mm	Board Edge Straddle Mount	Female	Cantilever	Gold	Dual

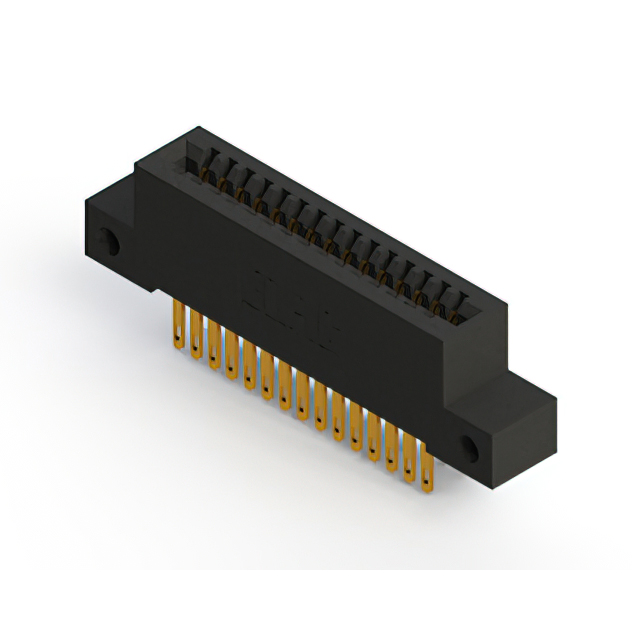

EDAC Inc. 892-030-500-212	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Non Specified - Dual Edge	Solder Eyelet(s)	0.25 Ám	10 Áin	Black	30	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	2	15	125 °C	-40 C		0.1 "	2.54 mm	Through Hole	Female	Cantilever	Gold	Dual

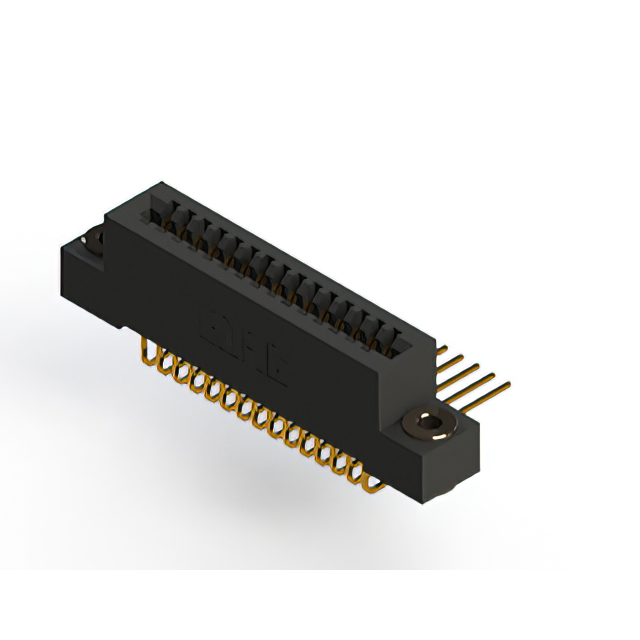

EDAC Inc. 892-030-559-203	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Non Specified - Dual Edge	Solder	0.25 Ám	10 Áin	Black	30	Floating Bobbin Flush Mount	0.116 "	2.95 mm	2	15	125 °C	-40 C		0.1 "	2.54 mm	Right Angle Through Hole	Female	Cantilever	Gold	Dual

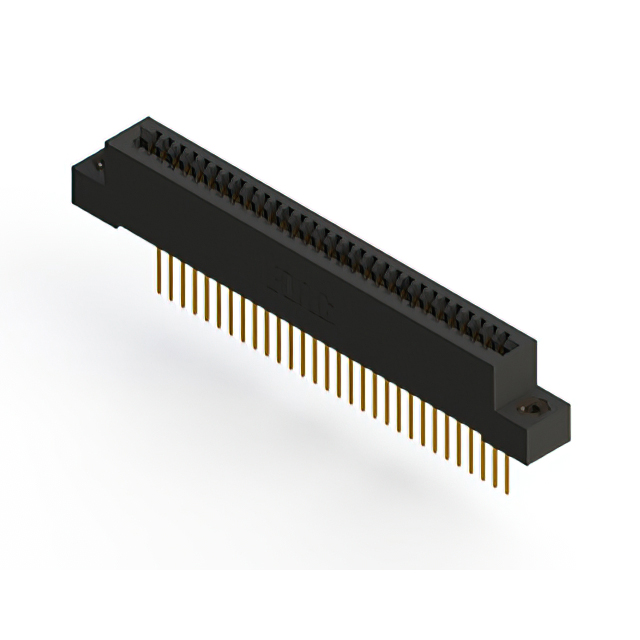

EDAC Inc. 892-030-540-108		Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Non Specified - Single Edge	Wire Wrap	0.25 Ám	10 Áin	Black	30	4-40 Flush Mount Threaded Insert Top Opening				30	125 °C	-40 C		0.1 "	2.54 mm	Through Hole	Female	Cantilever	Gold	Single	1	1

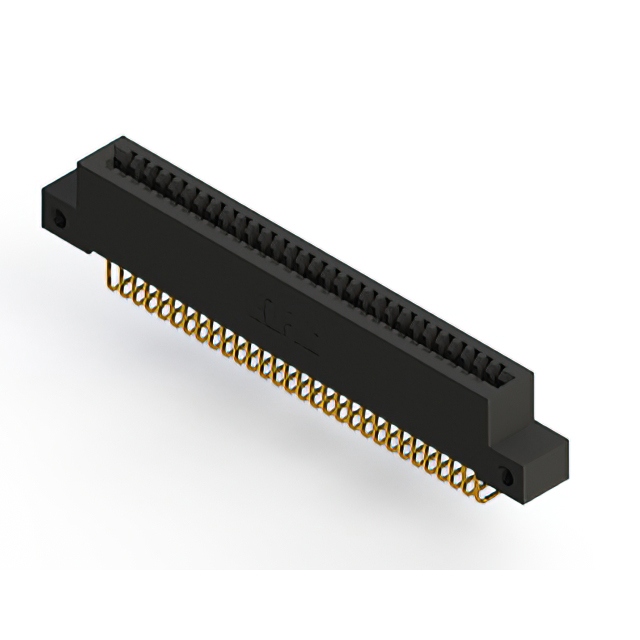

EDAC Inc. 892-030-558-112		Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Non Specified - Single Edge	Solder	0.25 Ám	10 Áin	Black	30	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm		30	125 °C	-40 C		0.1 "	2.54 mm	Right Angle Through Hole	Female	Cantilever	Gold	Single	1	1

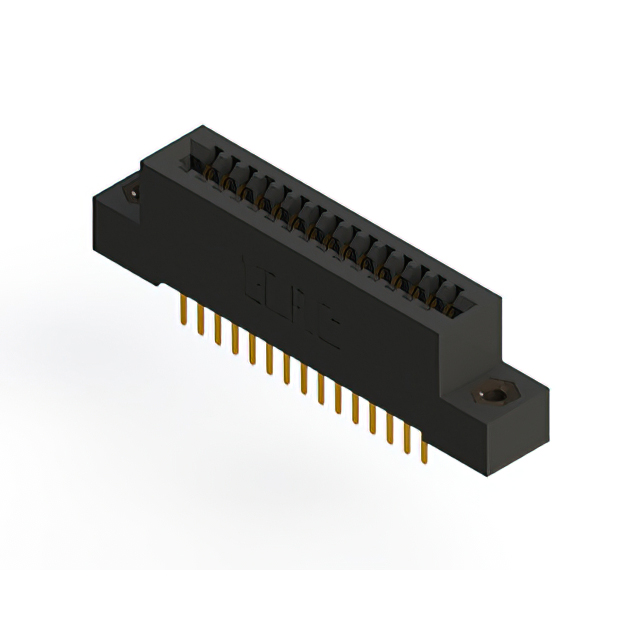

EDAC Inc. 892-030-520-208	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Non Specified - Dual Edge	Solder	0.25 Ám	10 Áin	Black	30	4-40 Flush Mount Threaded Insert Top Opening			2	15	125 °C	-40 C		0.1 "	2.54 mm	Through Hole	Female	Cantilever	Gold	Dual

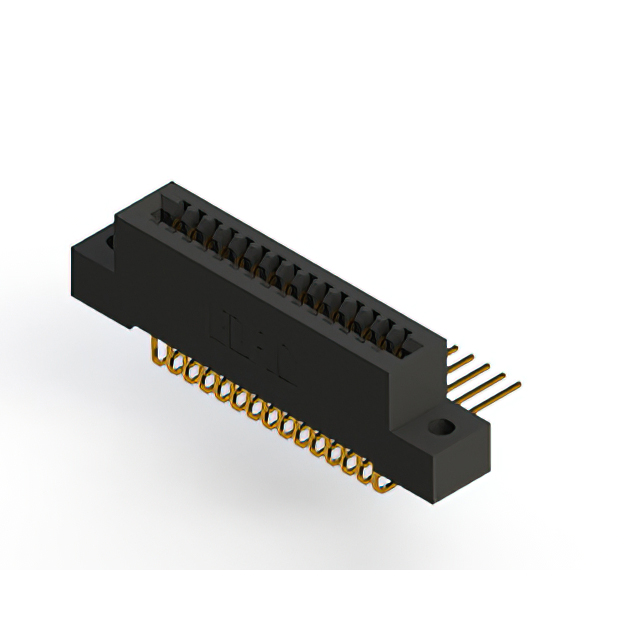

EDAC Inc. 892-030-559-202	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Non Specified - Dual Edge	Solder	0.25 Ám	10 Áin	Black	30	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	2	15	125 °C	-40 C		0.1 "	2.54 mm	Right Angle Through Hole	Female	Cantilever	Gold	Dual

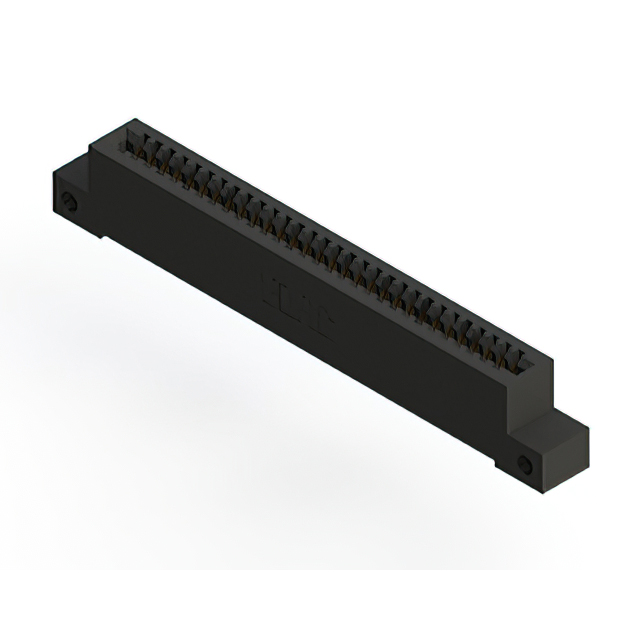

EDAC Inc. 892-030-520-112		Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Non Specified - Single Edge	Solder	0.25 Ám	10 Áin	Black	30	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm		30	125 °C	-40 C		0.1 "	2.54 mm	Through Hole	Female	Cantilever	Gold	Single	1	1

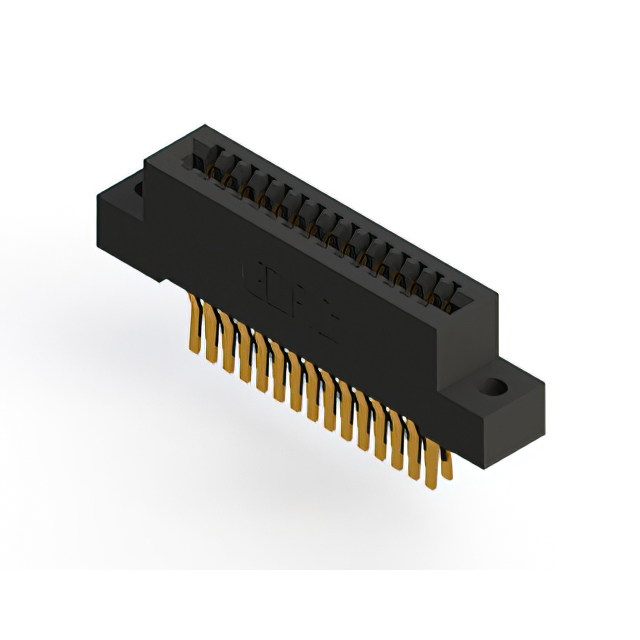

EDAC Inc. 892-030-560-202	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Non Specified - Dual Edge	Solder	0.25 Ám	10 Áin	Black	30	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	2	15	125 °C	-40 C	Card Extender	0.1 "	2.54 mm	Board Edge Straddle Mount	Female	Cantilever	Gold	Dual
