LAA1 Series

Catalog

CONN TERM RECT TONG 1/0 AWG #3/8

Part	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Contact Material	Contact Finish	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Width - Outer Edges	Width - Outer Edges	Stud/Tab Size	Features	Mounting Type	Tab Thickness [custom]	Tab Thickness [custom]	Terminal Style	Wire Gauge	Insulation	Length - Overall [x]	Length - Overall [x]	Termination	Terminal Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Tab Thickness	Tab Thickness

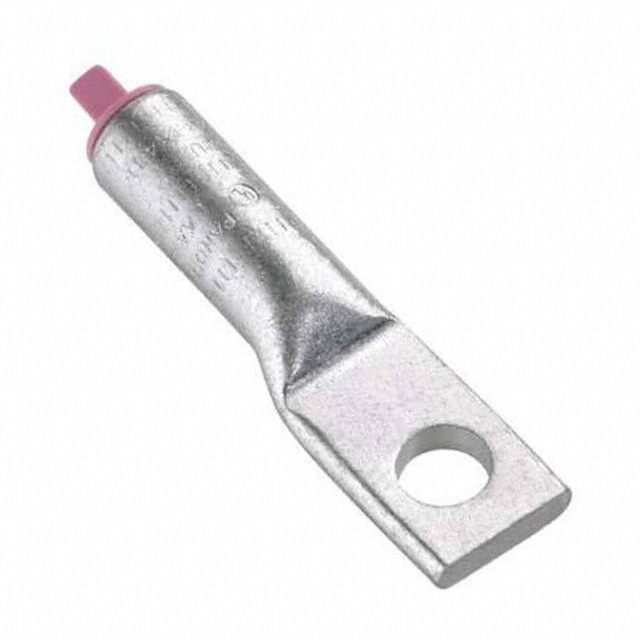

Panduit Corp LAA1/0-38-X	0.39 in	9.91 mm	Aluminum	Tin	16.26 mm	0.64 in	0.88 "	22.35 mm	0.375 Stud	Gel Filled	Free Hanging (In-Line)	0.25 in	6.35 mm	Single Stud Hole	44 AWG	Non-Insulated	3.23 in	82.04 mm	Barrel Crimp	Rectangular Tongue
Panduit Corp LAA1/0-12-X	0.39 in	9.91 mm	Aluminum	Tin	16.26 mm	0.64 in	0.88 "	22.35 mm	0.5 Stud	Gel Filled	Free Hanging (In-Line)	0.25 in	6.35 mm	Single Stud Hole	44 AWG	Non-Insulated	3.23 in	82.04 mm	Barrel Crimp	Rectangular Tongue

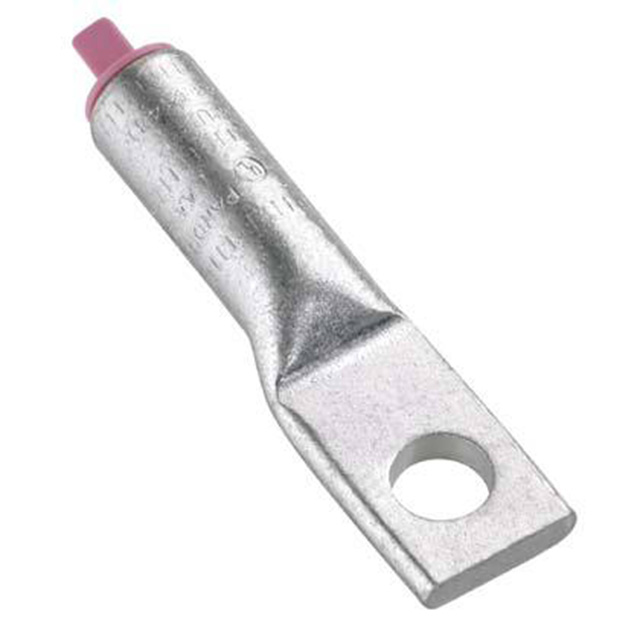

Panduit Corp LAA1-14-X	0.31 in	7.87 mm	Aluminum	Tin	13.46 mm	0.53 in			0.25 Stud	Gel Filled	Free Hanging (In-Line)			Single Stud Hole	1 AWG	Non-Insulated	2.63 in	66.8 mm	Barrel Crimp	Rectangular Tongue	19.05 mm	0.75 in	4.32 mm	0.17 in
