TPS63000 Series

Catalog

IC REG BUCK-BST ADJ 1.6A 10VSON

Part	Topology	Function	Mounting Type	Voltage - Input (Max) [Max]	Current - Output	Supplier Device Package	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Max) [Max]	Output Configuration	Voltage - Input (Min) [Min]	Package / Case	Frequency - Switching [Max]	Frequency - Switching [Min]	Number of Outputs	Voltage - Output (Min/Fixed)	Frequency - Switching	Supplied Contents	Utilized IC / Part	Voltage - Output	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Outputs and Type	Outputs and Type	Main Purpose	Board Type
Texas Instruments TPS63000DRCRG4	Buck-Boost	Step-Up/Step-Down	Surface Mount	5.5 V	1.6 A	10-VSON (3x3)	Adjustable	85 °C	-40 °C	5.5 V	Positive	1.8 V	10-VFDFN Exposed Pad	1.5 MHz	1.25 MHz	1	1.2 V
Texas Instruments TPS63000DRCR	Buck-Boost	Step-Up/Step-Down	Surface Mount	5.5 V	1.6 A	10-VSON (3x3)	Adjustable	85 °C	-40 °C	5.5 V	Positive	1.8 V	10-VFDFN Exposed Pad	1.5 MHz	1.25 MHz	1	1.2 V

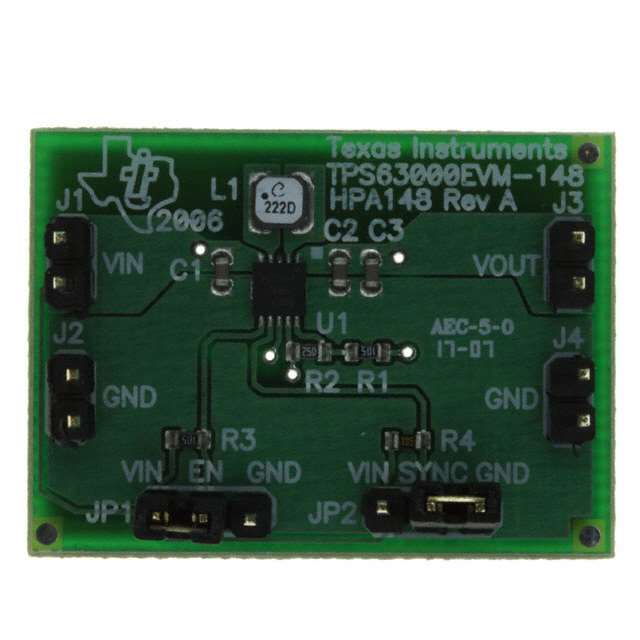

Texas Instruments TPS63000EVM-148					1 A													1 MHz	Board(s)	TPS63000	3.3 V	Buck-Boost	5.5 V	3 V	Non-Isolated	1	DC/DC Step Up or Down	Fully Populated
Texas Instruments TPS63000DRCTG4	Buck-Boost	Step-Up/Step-Down	Surface Mount	5.5 V	1.6 A	10-VSON (3x3)	Adjustable	85 °C	-40 °C	5.5 V	Positive	1.8 V	10-VFDFN Exposed Pad	1.5 MHz	1.25 MHz	1	1.2 V
Texas Instruments TPS63000DRCT	Buck-Boost	Step-Up/Step-Down	Surface Mount	5.5 V	1.6 A	10-VSON (3x3)	Adjustable	85 °C	-40 °C	5.5 V	Positive	1.8 V	10-VFDFN Exposed Pad	1.5 MHz	1.25 MHz	1	1.2 V
