MAX4684 Series

Catalog

IC SWITCH SPDTX2 800MOHM 12UCSP

Part	Mounting Type	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Channel-to-Channel Matching (ΔRon) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	On-State Resistance (Max) [Max]	Switch Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Crosstalk	Number of Circuits	Current - Leakage (IS(off)) (Max)	Multiplexer/Demultiplexer Circuit	Package / Case	Supplier Device Package	Package / Case [x]	Package / Case [x]
Analog Devices Inc./Maxim Integrated MAX4684EBC+T	Surface Mount	1.8 V	5.5 V	60 mOhm	30 ns	50 ns	84 pF	37 pF	800 mOhm	SPDT	85 °C	-40 °C	-68 dB	2	1 nA	2:1	12-WFBGA CSPBGA	12-UCSP

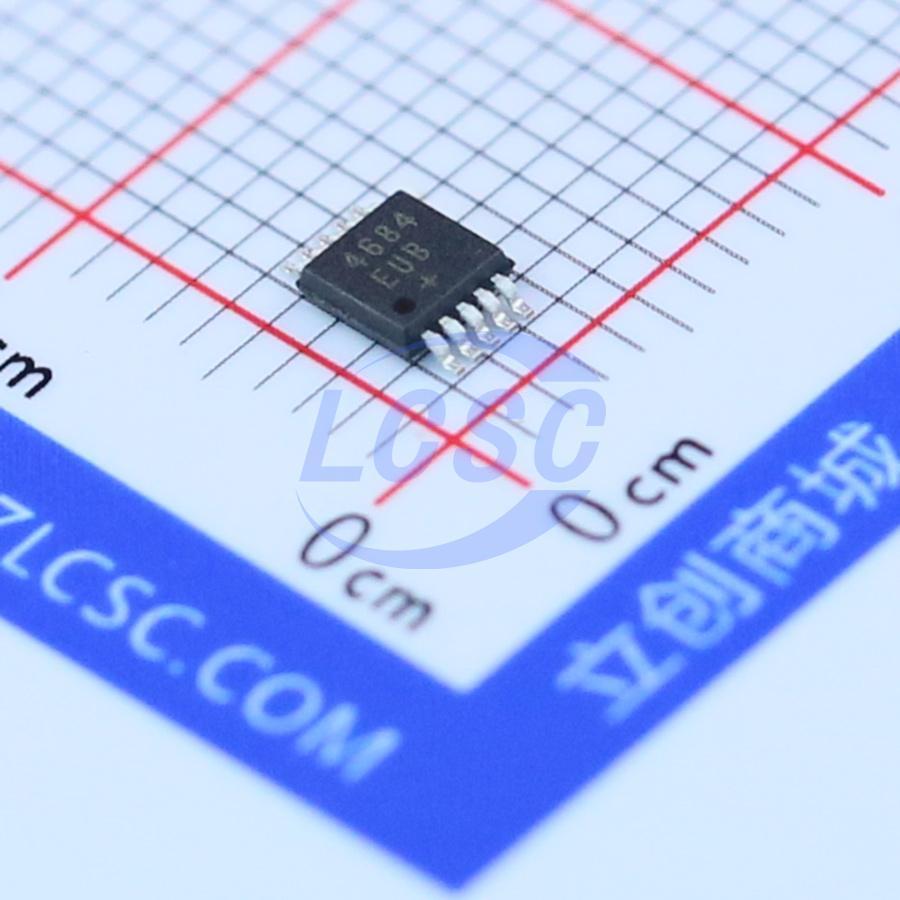

Analog Devices Inc./Maxim Integrated MAX4684EUB+	Surface Mount	1.8 V	5.5 V	60 mOhm	30 ns	50 ns	84 pF	37 pF	800 mOhm	SPDT	85 °C	-40 °C	-68 dB	2	1 nA	2:1	10-MSOP 10-TFSOP	10-uMAX/uSOP	3 mm	0.118 in
Analog Devices Inc./Maxim Integrated MAX4684EUB+T	Surface Mount	1.8 V	5.5 V	60 mOhm	30 ns	50 ns	84 pF	37 pF	800 mOhm	SPDT	85 °C	-40 °C	-68 dB	2	1 nA	2:1	10-MSOP 10-TFSOP	10-uMAX/uSOP	3 mm	0.118 in
Analog Devices Inc./Maxim Integrated MAX4684AEBC+T	Surface Mount	1.8 V	5.5 V	60 mOhm	30 ns	50 ns	84 pF	37 pF	800 mOhm	SPDT	85 °C	-40 °C	-68 dB	2	1 nA	2:1	12-WFBGA CSPBGA	12-UCSP
