782401 Series

Catalog

HOOK-UP SOLID 24AWG BROWN 1000'

Part	Ratings	Jacket Color	Voltage	Cable Type	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Conductor Strand	Length	Length	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]
ALPHA WIRE 782401 BR001	UL Style 1015/1230	Brown	600 V	Hook-Up	24 AWG	0.81 mm	0.032 in	0.084 "	2.13 mm	Poly-Vinyl Chloride (PVC)	Solid	1000 ft	304.8 m	Copper Tinned	-20 C	105 ░C
ALPHA WIRE 782401 BK001	UL Style 1015/1230	Black	600 V	Hook-Up	24 AWG	0.81 mm	0.032 in	0.084 "	2.13 mm	Poly-Vinyl Chloride (PVC)	Solid	1000 ft	304.8 m	Copper Tinned	-20 C	105 ░C
ALPHA WIRE 782401 RD001	UL Style 1015/1230	Red	600 V	Hook-Up	24 AWG	0.81 mm	0.032 in	0.084 "	2.13 mm	Poly-Vinyl Chloride (PVC)	Solid	1000 ft	304.8 m	Copper Tinned	-20 C	105 ░C
ALPHA WIRE 782401 WH001	UL Style 1015/1230		600 V	Hook-Up	24 AWG	0.81 mm	0.032 in	0.084 "	2.13 mm	Poly-Vinyl Chloride (PVC)	Solid	1000 ft	304.8 m	Copper Tinned	-20 C	105 ░C
ALPHA WIRE 782401 BR005	UL Style 1015/1230	Brown	600 V	Hook-Up	24 AWG	0.81 mm	0.032 in	0.084 "	2.13 mm	Poly-Vinyl Chloride (PVC)	Solid			Copper Tinned	-20 C	105 ░C	30.5 m	100 ft
ALPHA WIRE 782401 GR005	UL Style 1015/1230	Green	600 V	Hook-Up	24 AWG	0.81 mm	0.032 in	0.084 "	2.13 mm	Poly-Vinyl Chloride (PVC)	Solid			Copper Tinned	-20 C	105 ░C	30.5 m	100 ft
ALPHA WIRE 782401 GR001	UL Style 1015/1230	Green	600 V	Hook-Up	24 AWG	0.81 mm	0.032 in	0.084 "	2.13 mm	Poly-Vinyl Chloride (PVC)	Solid	1000 ft	304.8 m	Copper Tinned	-20 C	105 ░C

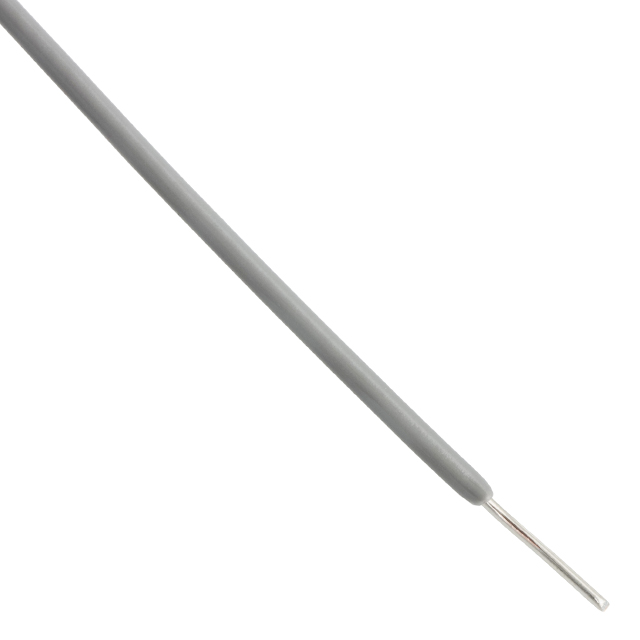

ALPHA WIRE 782401 SL001	UL Style 1015/1230	Slate	600 V	Hook-Up	24 AWG	0.81 mm	0.032 in	0.084 "	2.13 mm	Poly-Vinyl Chloride (PVC)	Solid	1000 ft	304.8 m	Copper Tinned	-20 C	105 ░C
ALPHA WIRE 782401 VI001	UL Style 1015/1230	Violet	600 V	Hook-Up	24 AWG	0.81 mm	0.032 in	0.084 "	2.13 mm	Poly-Vinyl Chloride (PVC)	Solid	1000 ft	304.8 m	Copper Tinned	-20 C	105 ░C
ALPHA WIRE 782401 BL005	UL Style 1015/1230	Blue	600 V	Hook-Up	24 AWG	0.81 mm	0.032 in	0.084 "	2.13 mm	Poly-Vinyl Chloride (PVC)	Solid			Copper Tinned	-20 C	105 ░C	30.5 m	100 ft
