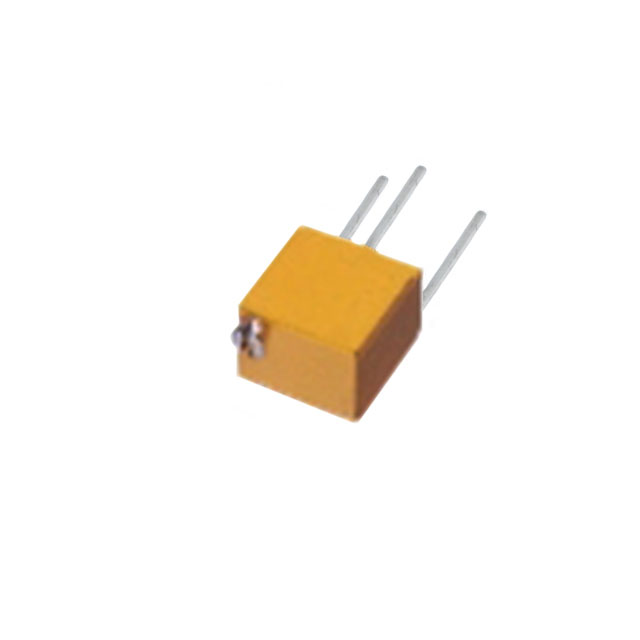

RJ5EW Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 5K OHM 0.25W PC PIN TOP

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Power (Watts)	Tolerance	Adjustment Type	Termination Style	Temperature Coefficient	Resistance	Mounting Type	Resistive Material	Number of Turns
Nidec Components Corporation RJ-5EW502	4.3 mm	6 mm	0.236 in	0.169 in	0.25 W	250 mW	10 %	Top Adjustment	PC Pins	100 ppm/°C	5 kOhms	Through Hole	Cermet	14
Nidec Components Corporation RJ-5EW500	4.3 mm	6 mm	0.236 in	0.169 in	0.25 W	250 mW	10 %	Top Adjustment	PC Pins	250 ppm/°C	50 Ohms	Through Hole	Cermet	14
Nidec Components Corporation RJ-5EW204	4.3 mm	6 mm	0.236 in	0.169 in	0.25 W	250 mW	10 %	Top Adjustment	PC Pins	100 ppm/°C	200000 Ohms	Through Hole	Cermet	14
Nidec Components Corporation RJ-5EW100	4.3 mm	6 mm	0.236 in	0.169 in	0.25 W	250 mW	10 %	Top Adjustment	PC Pins	250 ppm/°C	10 Ohms	Through Hole	Cermet	14
Nidec Components Corporation RJ-5EW101	4.3 mm	6 mm	0.236 in	0.169 in	0.25 W	250 mW	10 %	Top Adjustment	PC Pins	100 ppm/°C	100 Ohms	Through Hole	Cermet	14
Nidec Components Corporation RJ-5EW203	4.3 mm	6 mm	0.236 in	0.169 in	0.25 W	250 mW	10 %	Top Adjustment	PC Pins	100 ppm/°C	20 kOhms	Through Hole	Cermet	14
Nidec Components Corporation RJ-5EW503	4.3 mm	6 mm	0.236 in	0.169 in	0.25 W	250 mW	10 %	Top Adjustment	PC Pins	100 ppm/°C	50 kOhms	Through Hole	Cermet	14
Nidec Components Corporation RJ-5EW202	4.3 mm	6 mm	0.236 in	0.169 in	0.25 W	250 mW	10 %	Top Adjustment	PC Pins	100 ppm/°C	2 kOhms	Through Hole	Cermet	14
Nidec Components Corporation RJ-5EW501	4.3 mm	6 mm	0.236 in	0.169 in	0.25 W	250 mW	10 %	Top Adjustment	PC Pins	100 ppm/°C	500 Ohms	Through Hole	Cermet	14
Nidec Components Corporation RJ-5EW205	4.3 mm	6 mm	0.236 in	0.169 in	0.25 W	250 mW	10 %	Top Adjustment	PC Pins	100 ppm/°C	2 MOhms	Through Hole	Cermet	14
