78152 Series

Catalog

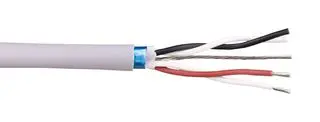

MULTIPAIR CABLE, ECOGEN™ ECOCABLE® MINI, SHIELDED, 2 PAIR, 28 AWG, 0.0925 MM², 100 FT, 30.5 M

Part	Shield Coverage	Shield Material	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Conductor Material	Voltage	Jacket Color	Number of Conductors	Features	Cable Type	Shield Type	Wire Gauge	Conductor Insulation	Length [x]	Length [x]	Spool Size [x]	Spool Size [x]	Length
ALPHA WIRE 78152 SL005	100 %	Aluminum	3.45 mm	0.136 in	40 AWG	19	0.381 mm	0.015 in	Polyphenylene Ether Modified (mPPE)	80 °C	-40 C	ISO 10993 UL Style 21460	Copper Tinned	300 VDC	Slate	4	Biological Compatibility Drain Wire Rip Cord	Multi-Pair	Foil	28 AWG	Polyphenylene Ether Modified (mPPE)	100 ft	30.5 m
ALPHA WIRE 78152 SL199	100 %	Aluminum	3.45 mm	0.136 in	40 AWG	19	0.381 mm	0.015 in	Polyphenylene Ether Modified (mPPE)	80 °C	-40 C	ISO 10993 UL Style 21460	Copper Tinned	300 VDC	Slate	4	Biological Compatibility Drain Wire Rip Cord	Multi-Pair	Foil	28 AWG	Polyphenylene Ether Modified (mPPE)			304.8 m	1000 ft	Enter Number of Feet in Order Quantity
