RDDW10H Series

Catalog

DC/DC CONVERTER

Part	Approval Agency	Type	Number of Outputs	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Efficiency	Voltage - Output 2	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Package / Case	Voltage - Output 1	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Features	Voltage - Input (Max) [Max]	Voltage - Isolation	Current - Output (Max)
MEAN WELL USA Inc. RDDW10H-12	CE EAC UKCA	Isolated Module	2	416 mA	416 mA	87 %	-12 V	10 W	-40 °C	85 °C	ITE (Commercial)	24-DIP Module 9 Leads	12 V	43 V	1.25 in	31.8 mm	12.7 mm	0.8 "	20.3 mm	0.5 in	Through Hole	Remote On/Off	160 V	3000 V

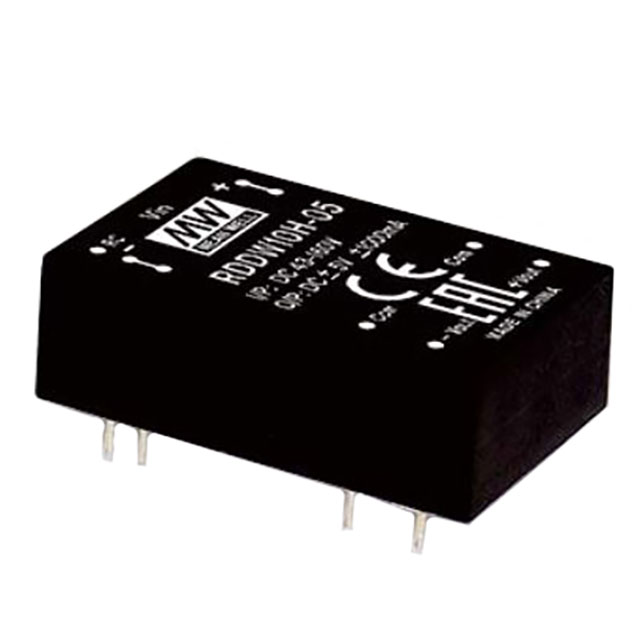

MEAN WELL USA Inc. RDDW10H-05	CE EAC UKCA	Isolated Module	2			85 %	-5 V	10 W	-40 °C	85 °C	ITE (Commercial)	24-DIP Module 9 Leads	5 V	43 V	1.25 in	31.8 mm	12.7 mm	0.8 "	20.3 mm	0.5 in	Through Hole	Remote On/Off	160 V	3000 V	1 A
