VM.ECI Series

Catalog

STANDARD MOTOR 4000 RPM 24V

Part	Size / Dimension	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Motor Type	Operating Temperature [Max]	Function	Termination Style	Mounting Hole Spacing [custom]	Mounting Hole Spacing [custom]	RPM	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Voltage - Rated	Features
ebm-papst Inc. VM.ECI6340BK1	Round	2.48 in	63 mm	DC Motor	6 mm	0.236 in	Brushless (BLDC)	40 °C	Standard	Wire Leads	49 mm	1.929 in	4000 RPM	670 mNm	94.88 oz-in	20 mm	0.787 in	24 VDC

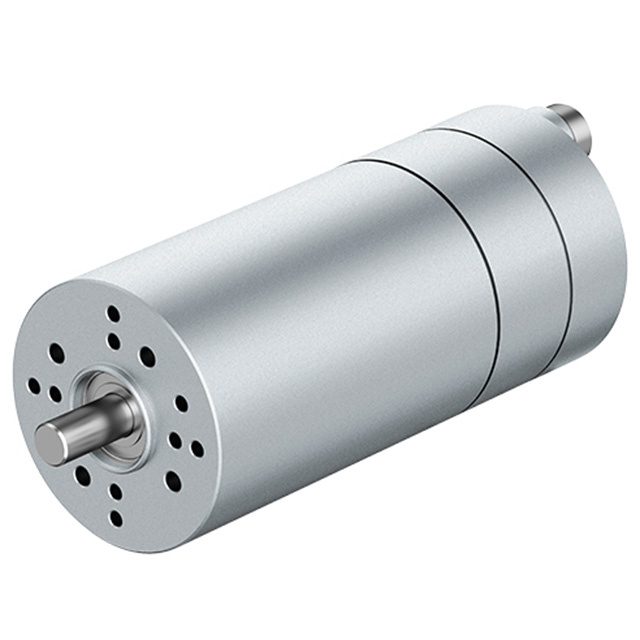

ebm-papst Inc. VM.ECI6340BK4	Round	2.48 in	63 mm	DC Motor	6 mm	0.236 in	Brushless (BLDC)	40 °C	Standard	Wire Leads	49 mm	1.929 in	4000 RPM	600 mNm	84.99 oz-in	20 mm	0.787 in	24 VDC	Integrated Controller

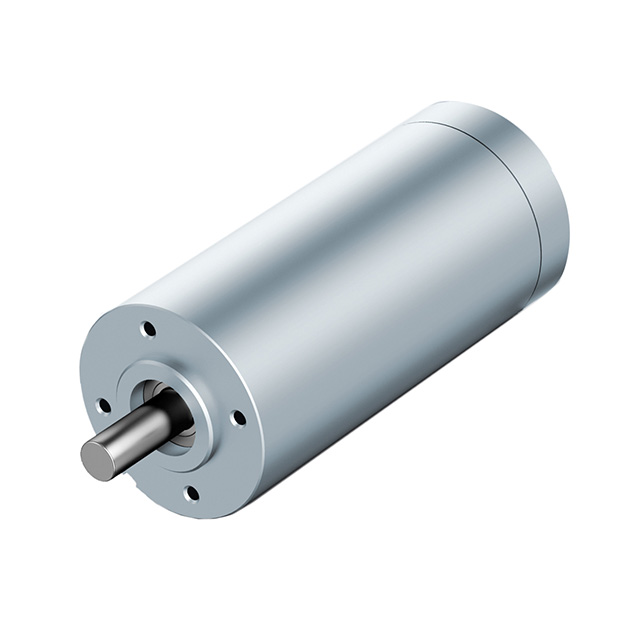

ebm-papst Inc. VM.ECI4240BK1	Round	1.654 "	42 mm	DC Motor	8 mm	0.315 in	Brushless (BLDC)	40 °C	Standard		32 mm	1.26 in	4000 RPM	220 mNm	31.15 oz-in	20 mm	0.787 in	24 VDC

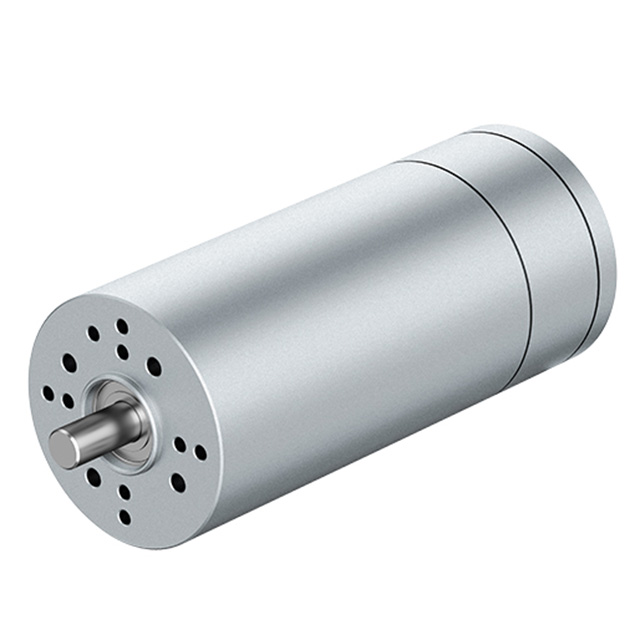

ebm-papst Inc. VM.ECI6360DK1	Round	2.48 in	63 mm	DC Motor	10 mm	0.394 in	Brushless (BLDC)	40 °C	Standard	Wire Leads	49 mm	1.929 in	4000 RPM	880 mNm	124.6 oz-in	20 mm	0.787 in	48 VDC
