LHB-02 Series
Manufacturer: Adam Tech
Beta
⌘K

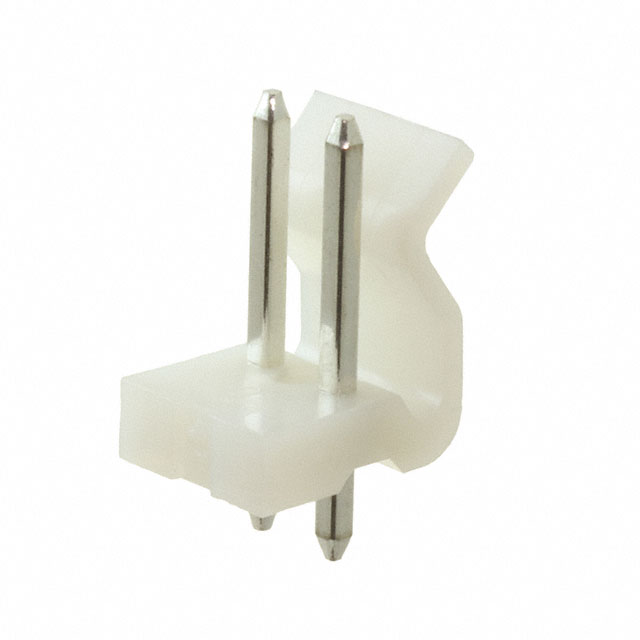

CONN WIRE TO BOARD HDR 2 POS 3.96MM SOLDER ST THRU-HOLE BAG
| Part | Fastening Type | Style | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Insulation Material | Connector Type | Contact Length - Mating | Contact Length - Mating | Overall Contact Length | Overall Contact Length | Mounting Type | Termination | Contact Shape | Contact Material | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Insulation Color | Voltage Rating | Shrouding | Number of Positions | Current Rating (Amps) | Number of Rows | Material Flammability Rating | Contact Type | Insulation Height [z] | Insulation Height [z] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Friction Lock | Board to Cable/Wire | Tin | 3.96 mm | 0.156 in | Nylon 6/6 Polyamide (PA66) | Header | 1.04 mm | 0.041 in | 17.53 mm | 0.69 in | Through Hole | Solder | Square | Brass | All | 3.68 mm | 0.145 in | White | 250 VAC | Shrouded - 1 Wall | 2 | 5 A | 1 | UL94 V-2 | Male Pin | 12.8 mm | 0.504 " | 85 °C | -25 °C |
