TR9CI1000 Series

Catalog

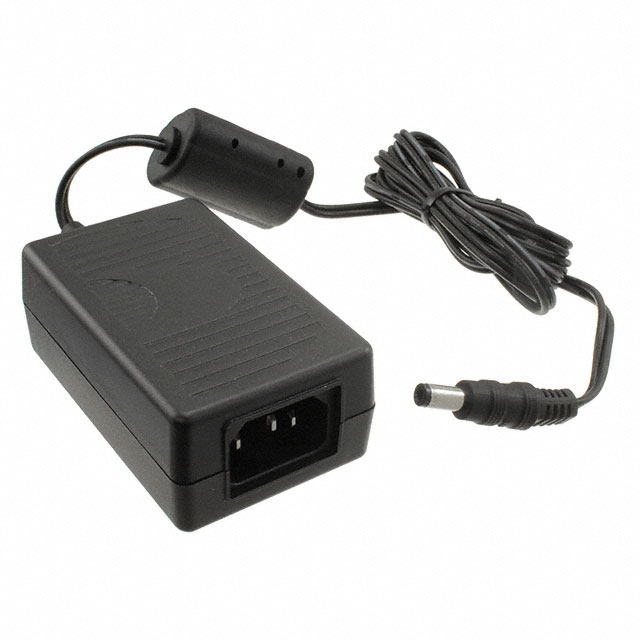

AC/DC DESKTOP ADAPTER 24V 24W

Part	Cord Length	Cord Length	Standard Number	Voltage - Output	Current - Output (Max) [Max]	Input Type	Input Connector	Polarization	Operating Temperature [Max]	Operating Temperature [Min]	No Load Power Consumption	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Applications	Form	Region Utilized	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Output Connector [diameter]	Output Connector	Output Connector [x]	Efficiency
GlobTek, Inc. TR9CI1000LCP-N(R6B)	60.2 in	1.53 m	60950-1	24 V	1 A	Cord (Sold Separately)	IEC 320-C14	Positive Center	40 °C	0 °C	75 mW	264 VAC	90 VAC	24 W	ITE (Commercial)	Desktop (Class I)	International	31 mm	1.97 in	80.6 mm	50 mm	1.22 in	3.17 in	CB CCC CE cULus EAC LPS PSE RCM S-Mark SIQ UkrSEPRO VCCI	2.5 mm 5.5 mm	Barrel Plug	11 mm	Level VI
GlobTek, Inc. TR9CI1000CCP-N(R6B)	60.2 in	1.53 m	60950-1	24 V	1 A	Cord (Sold Separately)	IEC 320-C14	Positive Center	40 °C	0 °C	75 mW	264 VAC	90 VAC	24 W	ITE (Commercial)	Desktop (Class I)	International	31 mm	1.97 in	80.6 mm	50 mm	1.22 in	3.17 in	CB CCC CE cULus EAC LPS PSE RCM S-Mark SIQ UkrSEPRO VCCI	2.1 mm 5.5 mm	Barrel Plug	11 mm	Level VI
