M1142 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

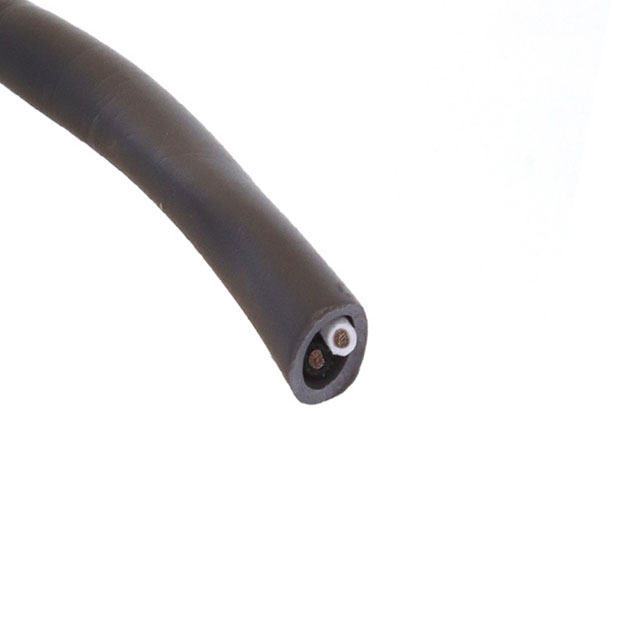

CABLE 2COND 18AWG SHLD 3000'
| Part | Shield Coverage | Shield Material | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Cable Type | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Jacket (Insulation) Material | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Length | Length | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 90 % | Copper Tinned | 18 AWG | 41 | 34 | Polyethylene (PE) | Multi-Conductor | Braid | 0.253 in | 6.43 mm | Slate | Poly-Vinyl Chloride (PVC) | 300 VDC | 0.035 in | 0.889 mm | 2 | 914.4 m | 3000 ' | Copper Tinned |
ALPHA WIRE | 90 % | Copper Tinned | 18 AWG | 41 | 34 | Polyethylene (PE) | Multi-Conductor | Braid | 0.253 in | 6.43 mm | Slate | Poly-Vinyl Chloride (PVC) | 300 VDC | 0.035 in | 0.889 mm | 2 | 304.8 m | 1000 ft | Copper Tinned |
