DAM15 Series

Catalog

CONN D-SUB PLUG 15POS VERT SLDR

Part	Contact Type	Flange Feature	Contact Finish	Connector Style	Current Rating (Amps)	Shell Material, Finish	Contact Material	Material Flammability Rating	Shell Size, Connector Layout	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Voltage Rating	Number of Rows	Dielectric Material	Termination	Shell Material, Finish [custom]	Shell Material, Finish [custom]	Features	Backset Spacing	Backset Spacing

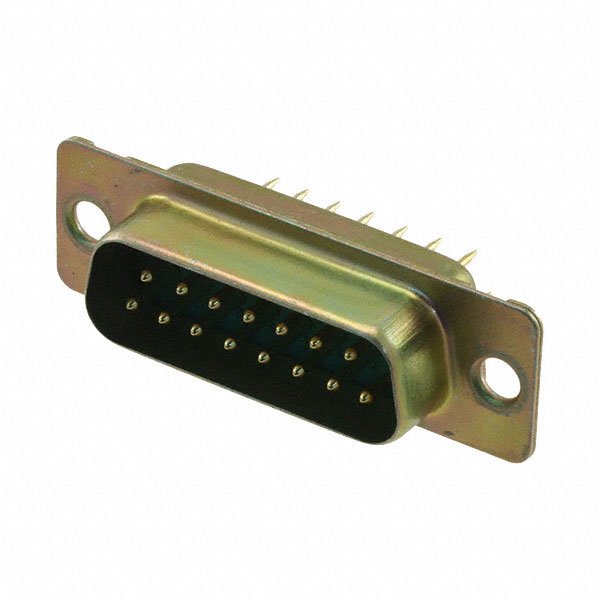

Amphenol ICC (FCI) DAM15P300	Signal	Housing/Shell (Unthreaded)	Gold	D-Sub	7.5 A	Steel Yellow Cadmium Plated	Brass	UL94 V-0	2	Male Pins Plug	-55 °C	125 °C	15	Through Hole	300 VDC	2	Thermoplastic	Solder
Amphenol ICC (FCI) DAM15S732N	Signal	Housing/Shell (Unthreaded)	Gold	D-Sub	7.5 A		Copper Alloy	UL94 V-0	2	Receptacle Female Sockets	-55 °C	155 °C	15	Through Hole Right Angle	300 VDC	2	Thermoplastic	Solder	Steel	Cadmium Plated	Mounting Brackets	8.08 mm	0.318 "
Amphenol ICC (FCI) DAM15S400	Signal	Housing/Shell (Unthreaded)	Gold	D-Sub	7.5 A	Steel Yellow Cadmium Plated	Phosphor Bronze	UL94 V-0	2	Receptacle Female Sockets	-55 °C	125 °C	15	Panel Mount Through Hole	300 VDC	2	Thermoplastic	Wire Wrap
Amphenol ICC (FCI) DAM15S500	Signal	Housing/Shell (Unthreaded)	Gold	D-Sub	7.5 A	Steel Yellow Cadmium Plated	Phosphor Bronze	UL94 V-0	2	Receptacle Female Sockets	-55 °C	125 °C	15	Through Hole Right Angle	300 VDC	2	Thermoplastic	Solder				10.3 mm	0.406 in
Amphenol ICC (FCI) DAM15P300N	Signal	Housing/Shell (Unthreaded)	Gold	D-Sub	7.5 A	Steel Yellow Cadmium Plated	Brass	UL94 V-0	2	Male Pins Plug	-55 °C	155 °C	15	Through Hole	300 VDC	2	Thermoplastic	Solder
Amphenol ICC (FCI) DAM15P500M	Signal	Housing/Shell (Unthreaded)	Gold	D-Sub	7.5 A	Steel Yellow Cadmium Plated	Brass	UL94 V-0	2	Male Pins Plug	-55 °C	125 °C	15	Through Hole Right Angle	300 VDC	2	Thermoplastic	Solder			Mounting Brackets	10.3 mm	0.406 in

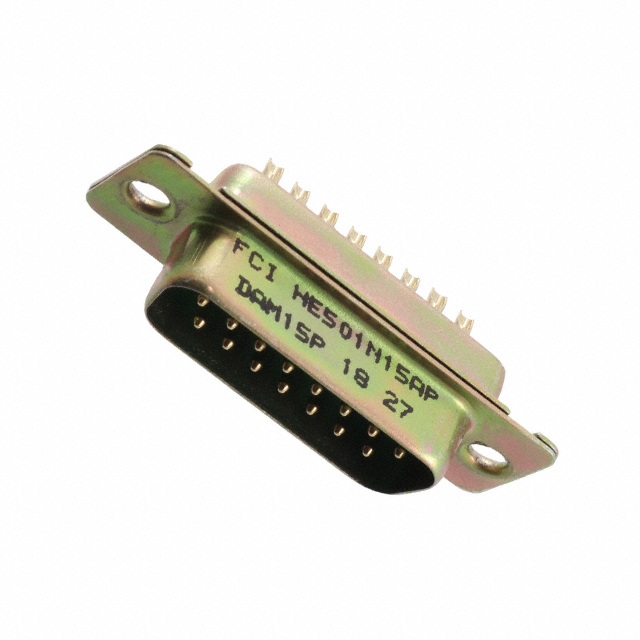

Amphenol ICC (FCI) DAM15P	Signal	Housing/Shell (Unthreaded)	Gold	D-Sub	7.5 A	Steel Yellow Cadmium Plated	Brass	UL94 V-0	2	Male Pins Plug	-55 °C	125 °C	15	Free Hanging (In-Line)	300 VDC	2	Thermoplastic
Amphenol ICC (FCI) DAM15S743M	Signal	Housing/Shell (Unthreaded)	Gold	D-Sub	7.5 A	Steel Yellow Cadmium Plated	Phosphor Bronze	UL94 V-0	2	Receptacle Female Sockets	-55 °C	125 °C	15	Through Hole Right Angle	300 VDC	2	Thermoplastic	Solder			Mounting Brackets	8.08 mm	0.318 "

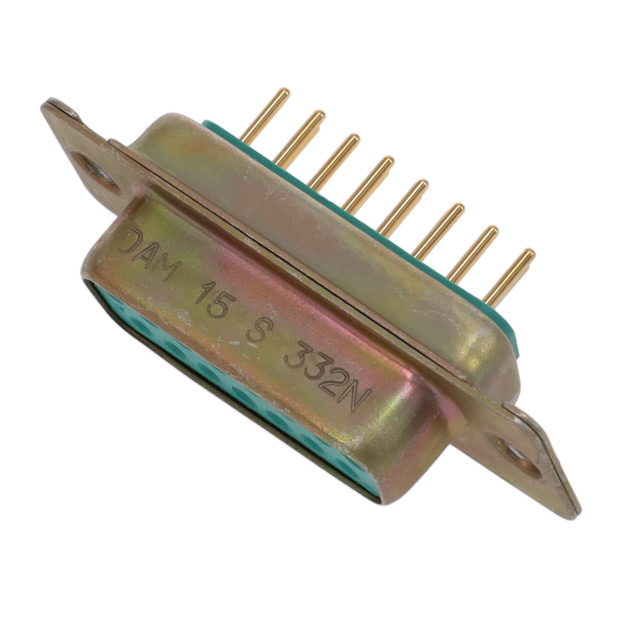

Amphenol ICC (FCI) DAM15S332N	Signal	Housing/Shell (Unthreaded)	Gold	D-Sub	7.5 A		Phosphor Bronze	UL94 V-0	2	Receptacle Female Sockets	-55 °C	155 °C	15	Through Hole	300 VDC	2	Thermoplastic	Solder	Steel	Cadmium Plated
Amphenol ICC (FCI) DAM15P500CN	Signal	Housing/Shell (Unthreaded)	Gold	D-Sub	7.5 A	Steel Yellow Cadmium Plated	Brass	UL94 V-0	2	Male Pins Plug	-55 °C	155 °C	15	Through Hole Right Angle	300 VDC	2	Thermoplastic	Solder				10.3 mm	0.406 in
