202E334 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

BLOW-MOLDED PARTS

Part	Material	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Large Recovered Length	Large Recovered Length	Total Length Recovered [x]	Total Length Recovered [x]	Type	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Small Recovered Length	Small Recovered Length [custom]	Shell Size - Insert	Color
TE Connectivity Aerospace, Defense and Marine 202E334-71-0	Polyolefin (PO) Flexible	2.79 mm	0.11 "	1.62 in	41.15 mm	2.5 in	63.5 mm	Boot	10.67 mm	0.42 in	12.7 mm	0.5 in	0.44 "	11.18 mm	15.75 mm	0.62 in	34	Black
TE Connectivity Aerospace, Defense and Marine 202E334-71/86-0	Polyolefin (PO) Flexible	2.79 mm	0.11 "	1.62 in	41.15 mm	2.5 in	63.5 mm	Boot	10.67 mm	0.42 in	12.7 mm	0.5 in	0.44 "	11.18 mm	15.75 mm	0.62 in	34	Black
TE Connectivity Aerospace, Defense and Marine 202E334-51-0-CS5324	Polyolefin (PO) Flexible	2.79 mm	0.11 "	1.62 in	41.15 mm	2.5 in	63.5 mm	Boot	10.67 mm	0.42 in	12.7 mm	0.5 in	0.44 "	11.18 mm	15.75 mm	0.62 in	34	Black
TE Connectivity Aerospace, Defense and Marine 202E334-71/42-0	Polyolefin (PO) Flexible	2.79 mm	0.11 "	1.62 in	41.15 mm	2.5 in	63.5 mm	Boot	10.67 mm	0.42 in	12.7 mm	0.5 in	0.44 "	11.18 mm	15.75 mm	0.62 in	34	Black

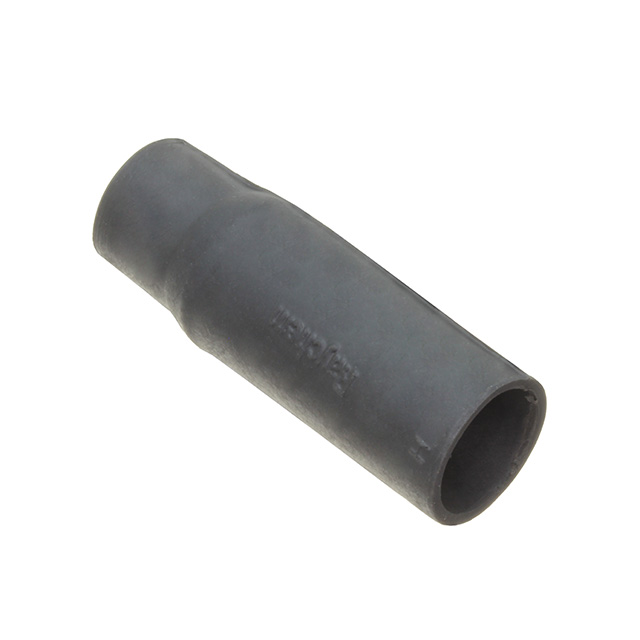

TE Connectivity Aerospace, Defense and Marine 202E334-51-0	Fluoroelastomer (FKM) Flexible	2.79 mm	0.11 "	1.62 in	41.15 mm	2.5 in	63.5 mm	Boot	10.67 mm	0.42 in	12.7 mm	0.5 in	0.44 "	11.18 mm	15.75 mm	0.62 in	34	Black
TE Connectivity Aerospace, Defense and Marine 202E334-51/164-0-CS7135	Polyolefin (PO) Flexible	2.79 mm	0.11 "	1.62 in	41.15 mm	2.5 in	63.5 mm	Boot	10.67 mm	0.42 in	12.7 mm	0.5 in	0.44 "	11.18 mm	15.75 mm	0.62 in	34	Black
TE Connectivity Aerospace, Defense and Marine 202E334-51/164-0	Polyolefin (PO) Flexible	2.79 mm	0.11 "	1.62 in	41.15 mm	2.5 in	63.5 mm	Boot	10.67 mm	0.42 in	12.7 mm	0.5 in	0.44 "	11.18 mm	15.75 mm	0.62 in	34	Black
TE Connectivity Aerospace, Defense and Marine 202E334-51/86-0	Polyolefin (PO) Flexible	2.79 mm	0.11 "	1.62 in	41.15 mm	2.5 in	63.5 mm	Boot	10.67 mm	0.42 in	12.7 mm	0.5 in	0.44 "	11.18 mm	15.75 mm	0.62 in	34	Black
