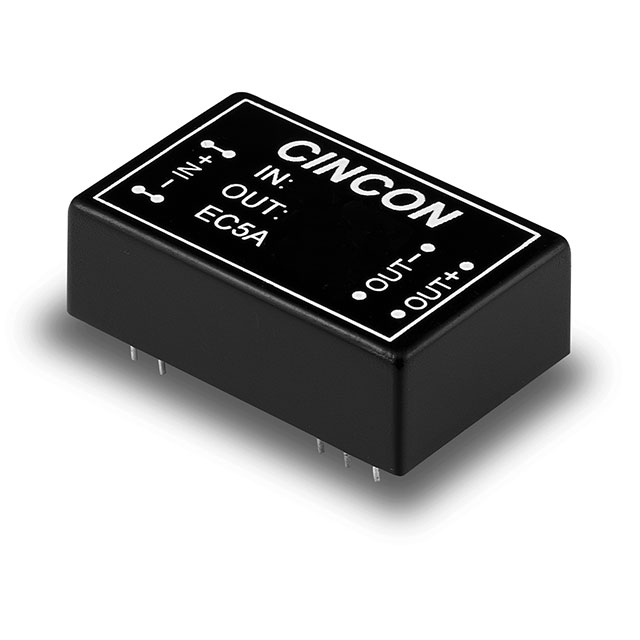

EC5A-05 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
CONVERTER: DC/DC; 6.6W; UIN: 4.7÷6VDC; UOUT: 3.3VDC; 3.3V; IOUT: 2A
| Part | Voltage - Input (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Power (Watts) | Mounting Type | Voltage - Input (Min) [Min] | Efficiency | Applications | Package / Case | Voltage - Output 1 | Approval Agency | Features | Type | Number of Outputs | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 6 V | -40 °C | 100 °C | 2 A | 6.6 W | Through Hole | 4.7 V | 85 % | ITE (Commercial) | 24-DIP Module 14 Leads | 3.3 V | CE | OCP | Non-Isolated PoL Module | 1 | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in |
