TS12A4516 Series
Manufacturer: Texas Instruments
Beta
⌘K

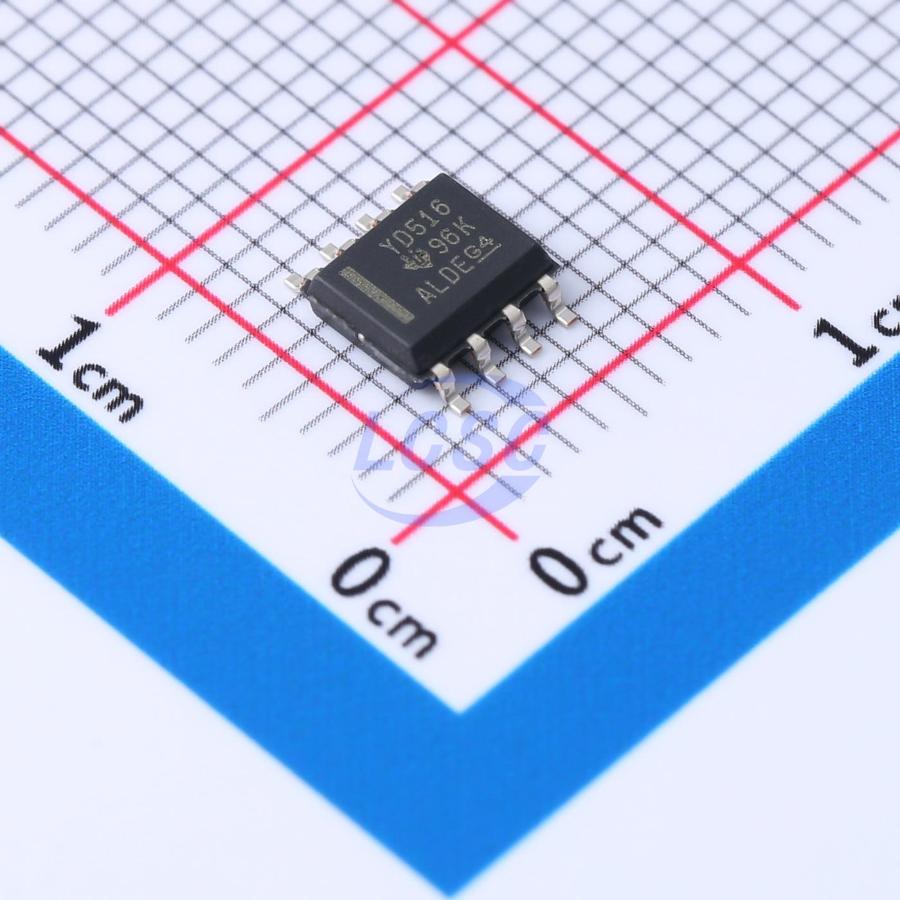

ANALOG SWITCH ICS LO-VLTG LO ON-ST RES IST SPST CMOS A 595-TS12A4516DR
| Part | Supplier Device Package | Current - Leakage (IS(off)) (Max) [Max] | -3db Bandwidth | Voltage - Supply, Dual (V±) [Max] | Voltage - Supply, Dual (V±) [Min] | Multiplexer/Demultiplexer Circuit | On-State Resistance (Max) [Max] | Mounting Type | Switch Time (Ton, Toff) (Max) [custom] | Switch Time (Ton, Toff) (Max) [custom] | Switch Circuit | Channel Capacitance (CS(off), CD(off)) [custom] | Channel Capacitance (CS(off), CD(off)) [custom] | Package / Case | Package / Case | Package / Case | Number of Circuits | Operating Temperature [Max] | Operating Temperature [Min] | Charge Injection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 8-SOIC | 5 nA | 464 MHz | 6 V | -1 V | 1:1 | 20 Ohm | Surface Mount | 45 ns | 75 ns | SPST - NO | 5.5 pF | 5.5 pF | 0.154 in | 8-SOIC | 3.9 mm | 1 | 85 C | -40 ¯C | -13 pC |
Texas Instruments | 8-SOIC | 5 nA | 464 MHz | 6 V | -1 V | 1:1 | 20 Ohm | Surface Mount | 45 ns | 75 ns | SPST - NO | 5.5 pF | 5.5 pF | 0.154 in | 8-SOIC | 3.9 mm | 1 | 85 C | -40 ¯C | -13 pC |
 Texas Instruments | SOT-23-5 | 5 nA | 464 MHz | 6 V | -1 V | 1:1 | 20 Ohm | Surface Mount | 45 ns | 75 ns | SPST - NO | 5.5 pF | 5.5 pF | SC-74A SOT-753 | 1 | 85 C | -40 ¯C | -13 pC |
