XJ8B Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
CONN HEADER VERT 16POS 2.54MM
| Part | Style | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Overall Contact Length | Overall Contact Length | Connector Type | Material Flammability Rating | Number of Positions Loaded | Number of Rows | Current Rating (Amps) | Shrouding | Mounting Type | Insulation Color | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Contact Material | Insulation Material | Voltage Rating | Contact Length - Post [custom] | Contact Length - Post | Number of Positions | Insulation Height | Insulation Height | Contact Type | Contact Finish - Mating | Contact Length - Mating | Contact Length - Mating | Fastening Type | Contact Shape | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

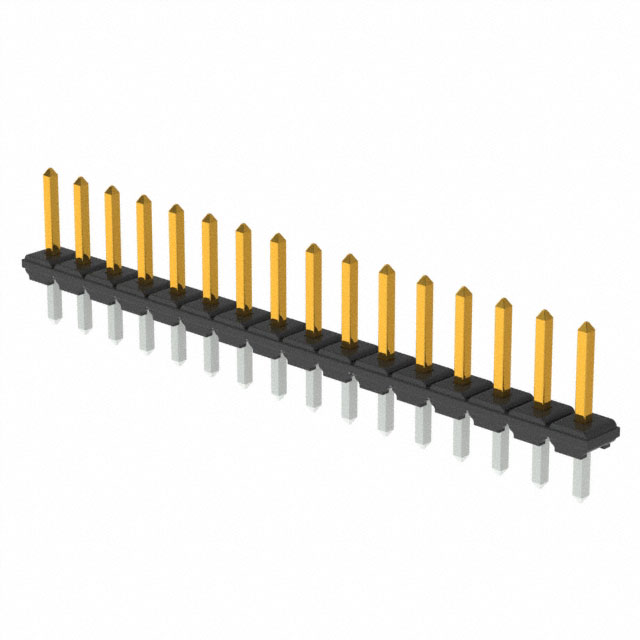

 Omron Electronics Inc-EMC Div | Board to Board Cable | Solder | -55 C | 105 ░C | 8.6 mm | 0.339 in | Header | UL94 V-0 | All | 1 | 2 A | Unshrouded | Through Hole | Black | 5.9 µin | 0.15 µm | Brass Nickel | Polyphenylene Sulfide (PPS) Glass Filled | 300 VDC | 0.11 in | 2.79 mm | 16 | 0.059 in | 1.5 mm | Male Pin | Gold | 0.169 in | 4.3 mm | Push-Pull | Square | 0.1 " | 2.54 mm |

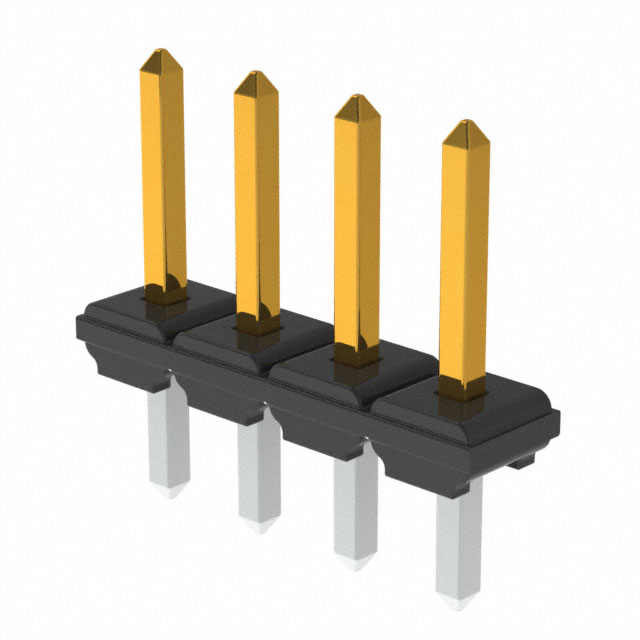

 Omron Electronics Inc-EMC Div | Board to Board Cable | Solder | -55 C | 105 ░C | 8.6 mm | 0.339 in | Header | UL94 V-0 | All | 1 | 2 A | Unshrouded | Through Hole | Black | 5.9 µin | 0.15 µm | Brass Nickel | Polyphenylene Sulfide (PPS) Glass Filled | 300 VDC | 0.11 in | 2.79 mm | 4 | 0.059 in | 1.5 mm | Male Pin | Gold | 0.169 in | 4.3 mm | Push-Pull | Square | 0.1 " | 2.54 mm |
