1744429 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

3.96 EP HDR ASSY 2P W/PEGS, GW

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Number of Positions	Features	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Material	Contact Shape	Material Flammability Rating	Overall Contact Length [x]	Overall Contact Length [x]	Contact Finish - Post	Number of Rows	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Mounting Type	Style	Fastening Type	Voltage Rating	Insulation Material	Termination	Shrouding	Insulation Color	Pitch - Mating	Pitch - Mating

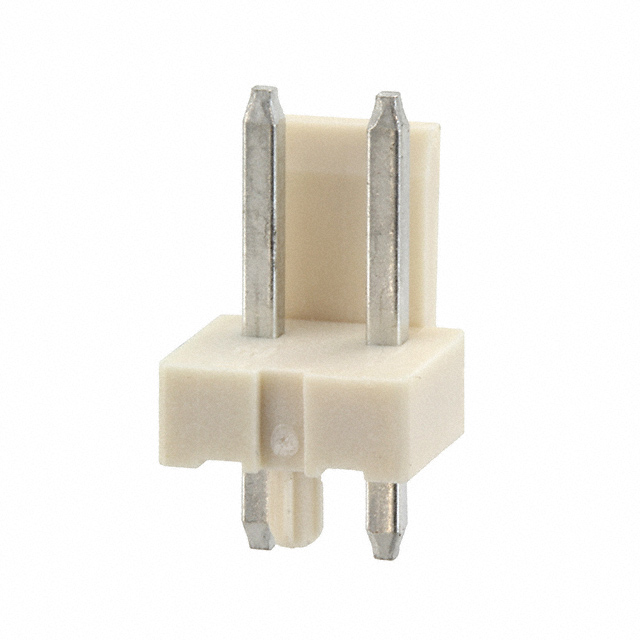

TE Connectivity AMP Connectors 1744429-2	General Purpose Industrial Lighting	120 Áin	3.05 Ám	0.127 in	3.22 mm	120 µin	3.05 µm	Header	2	Board Guide Glow Wire Compliant	Male Pin	105 ░C	-25 °C	All	Brass	Square	UL94 V-0	14.6 mm	0.575 in	Tin	1	3.68 mm	0.145 in	0.303 in	7.7 mm	7.5 A	Through Hole	Board to Cable/Wire	Locking Ramp	250 VAC	Nylon Polyamide (PA)	Solder	Shrouded - 1 Wall	Natural	3.96 mm	0.156 in
TE Connectivity AMP Connectors 1744429-4	General Purpose Industrial Lighting	120 Áin	3.05 Ám	0.127 in	3.22 mm	120 µin	3.05 µm	Header	4	Board Guide Glow Wire Compliant	Male Pin	105 ░C	-25 °C	All	Brass	Square	UL94 V-0	14.6 mm	0.575 in	Tin	1	3.68 mm	0.145 in	0.303 in	7.7 mm	7.5 A	Through Hole	Board to Cable/Wire	Locking Ramp	250 VAC	Nylon Polyamide (PA)	Solder	Shrouded - 1 Wall	Natural	3.96 mm	0.156 in

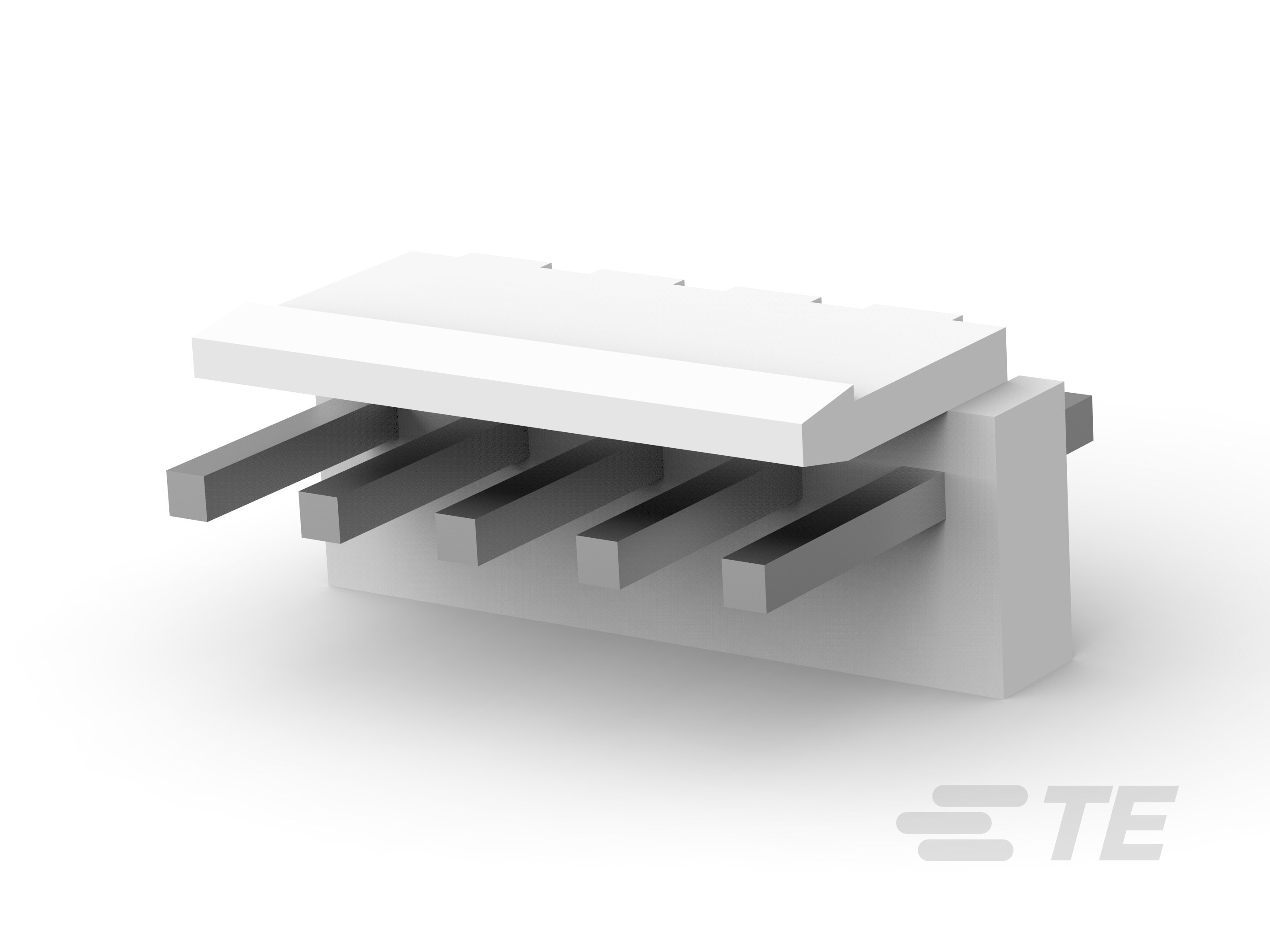

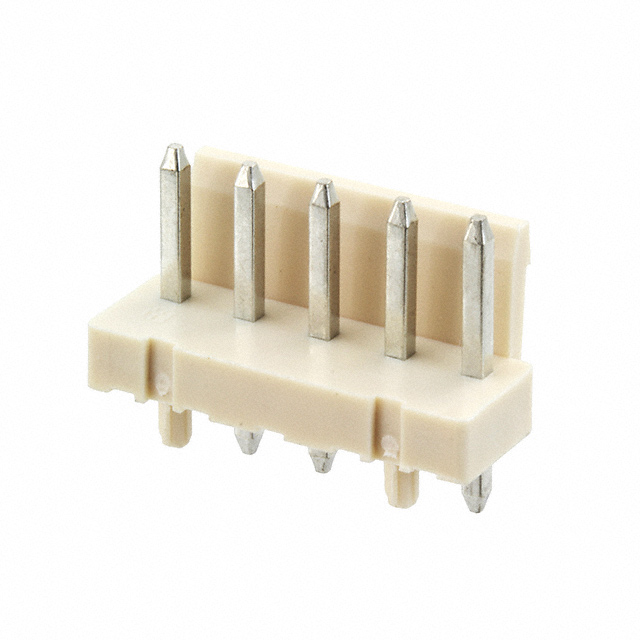

TE Connectivity AMP Connectors 1744429-5	General Purpose Industrial Lighting	120 Áin	3.05 Ám	0.127 in	3.22 mm	120 µin	3.05 µm	Header	5	Board Guide Glow Wire Compliant	Male Pin	105 ░C	-25 °C	All	Brass	Square	UL94 V-0	14.6 mm	0.575 in	Tin	1	3.68 mm	0.145 in	0.303 in	7.7 mm	7.5 A	Through Hole	Board to Cable/Wire	Locking Ramp	250 VAC	Nylon Polyamide (PA)	Solder	Shrouded - 1 Wall	Natural	3.96 mm	0.156 in

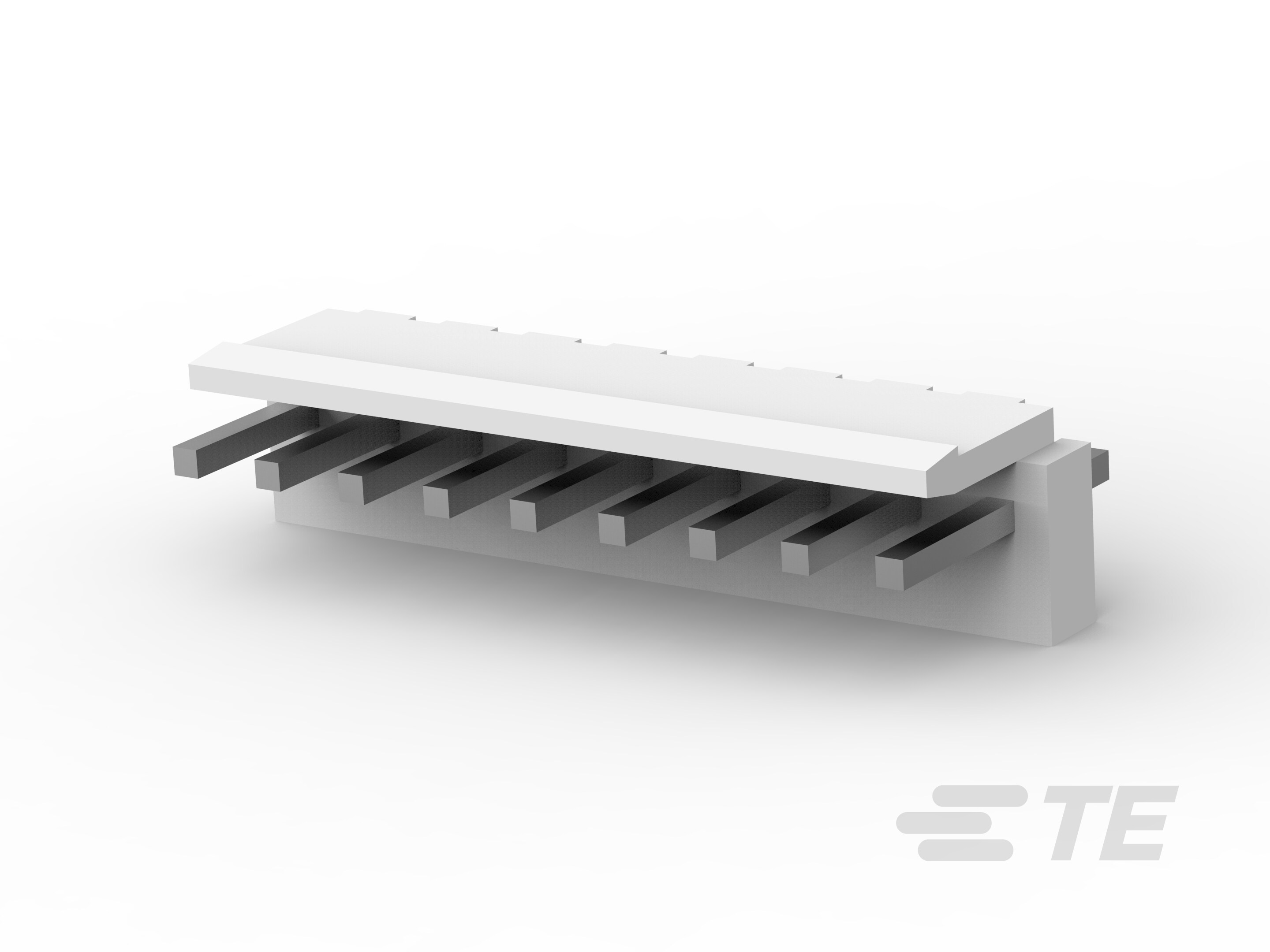

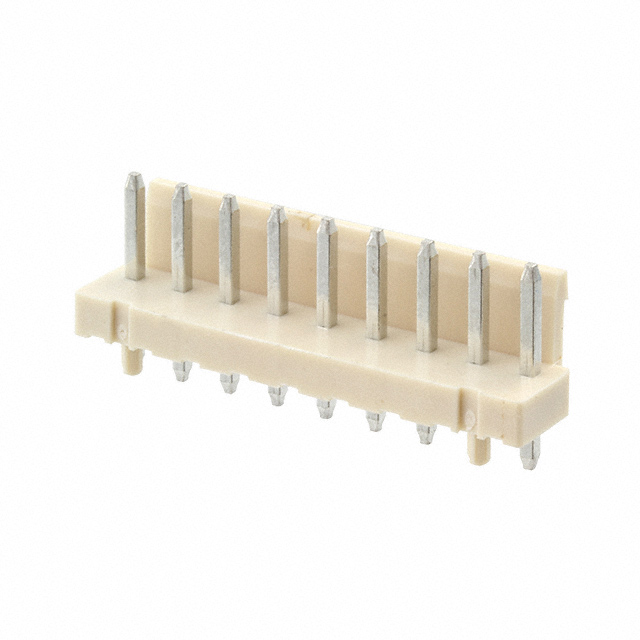

TE Connectivity AMP Connectors 1744429-9	General Purpose Industrial Lighting	120 Áin	3.05 Ám	0.127 in	3.22 mm	120 µin	3.05 µm	Header	9	Board Guide Glow Wire Compliant	Male Pin	105 ░C	-25 °C	All	Brass	Square	UL94 V-0	14.6 mm	0.575 in	Tin	1	3.68 mm	0.145 in	0.303 in	7.7 mm	7.5 A	Through Hole	Board to Cable/Wire	Locking Ramp	250 VAC	Nylon Polyamide (PA)	Solder	Shrouded - 1 Wall	Natural	3.96 mm	0.156 in
TE Connectivity AMP Connectors 1-1744429-6				0.127 in	3.22 mm	120 µin	3.05 µm	Header	6		Male Pin	105 ░C	-25 °C	All	Brass	Square	UL94 V-0	14.6 mm	0.575 in	Tin	1	3.68 mm	0.145 in	0.303 in	7.7 mm	8 A	Through Hole	Board to Cable/Wire	Locking Ramp	250 VAC	Nylon Polyamide (PA)	Solder	Shrouded - 1 Wall	Natural	3.96 mm	0.156 in
TE Connectivity AMP Connectors 1-1744429-2	General Purpose Industrial Lighting	120 Áin	3.05 Ám	0.127 in	3.22 mm	120 µin	3.05 µm	Header	12	Board Guide Glow Wire Compliant	Male Pin	105 ░C	-25 °C	All	Brass	Square	UL94 V-0	14.6 mm	0.575 in	Tin	1	3.68 mm	0.145 in	0.303 in	7.7 mm	7.5 A	Through Hole	Board to Cable/Wire	Locking Ramp	250 VAC	Nylon Polyamide (PA)	Solder	Shrouded - 1 Wall	Natural	3.96 mm	0.156 in

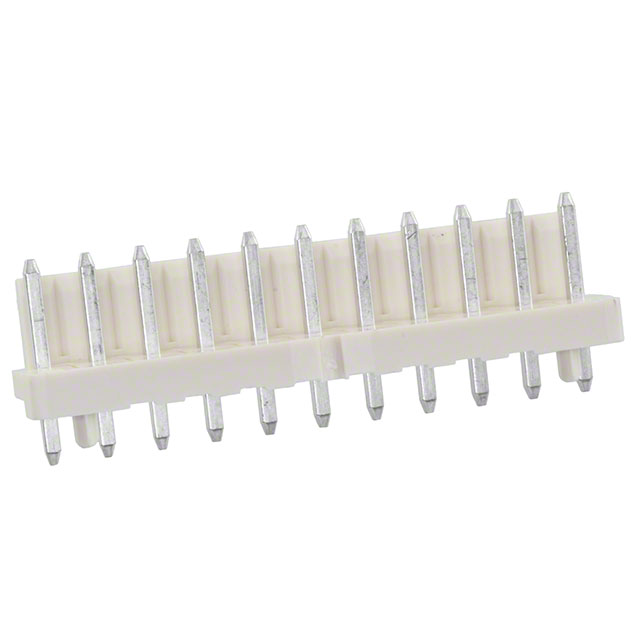

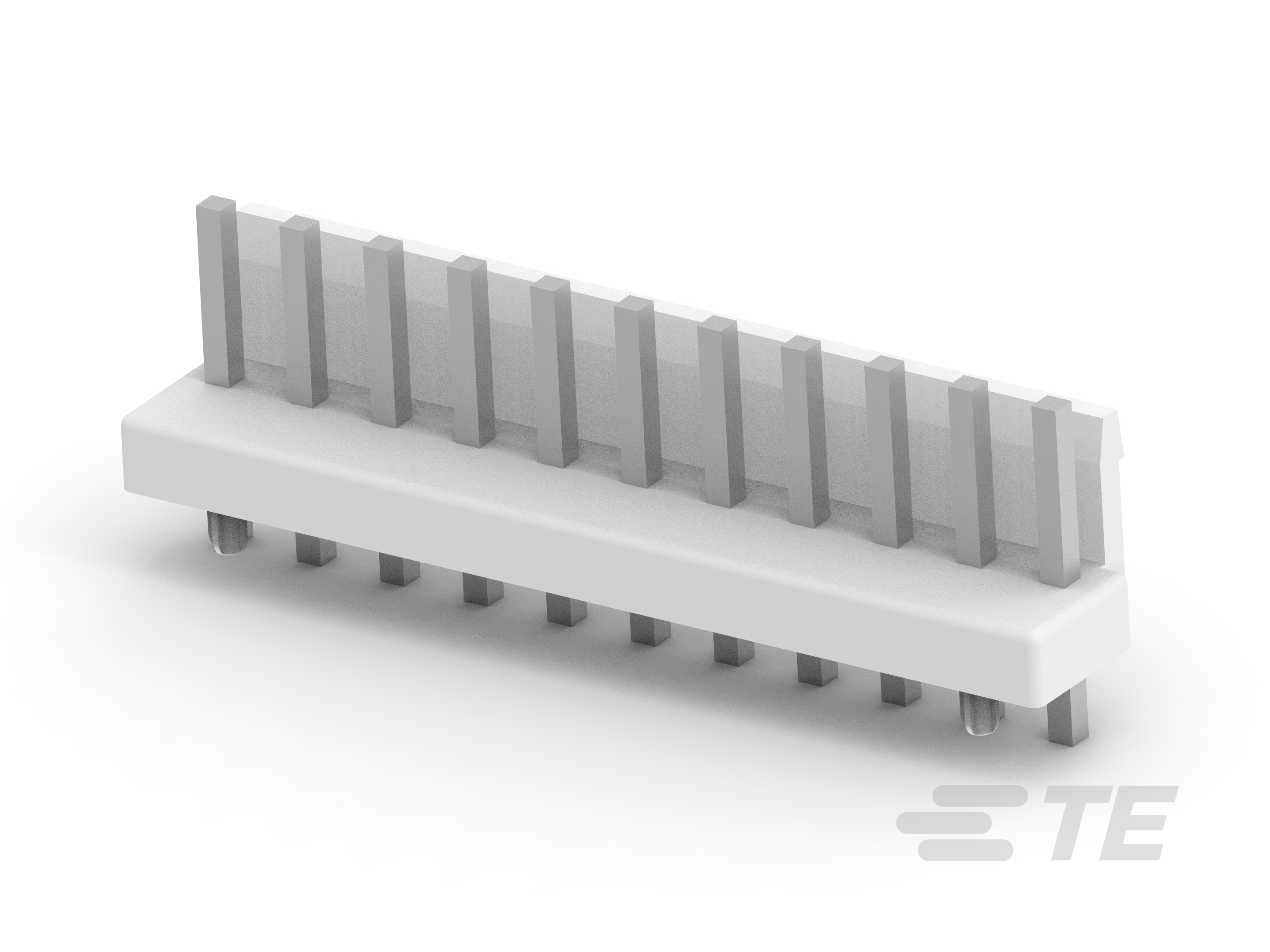

TE Connectivity AMP Connectors 1-1744429-1	General Purpose Industrial Lighting	120 Áin	3.05 Ám	0.127 in	3.22 mm	120 µin	3.05 µm	Header	11	Board Guide Glow Wire Compliant	Male Pin	105 ░C	-25 °C	All	Brass	Square	UL94 V-0	14.6 mm	0.575 in	Tin	1	3.68 mm	0.145 in	0.303 in	7.7 mm	7.5 A	Through Hole	Board to Cable/Wire	Locking Ramp	250 VAC	Nylon Polyamide (PA)	Solder	Shrouded - 1 Wall	Natural	3.96 mm	0.156 in
