2384030 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

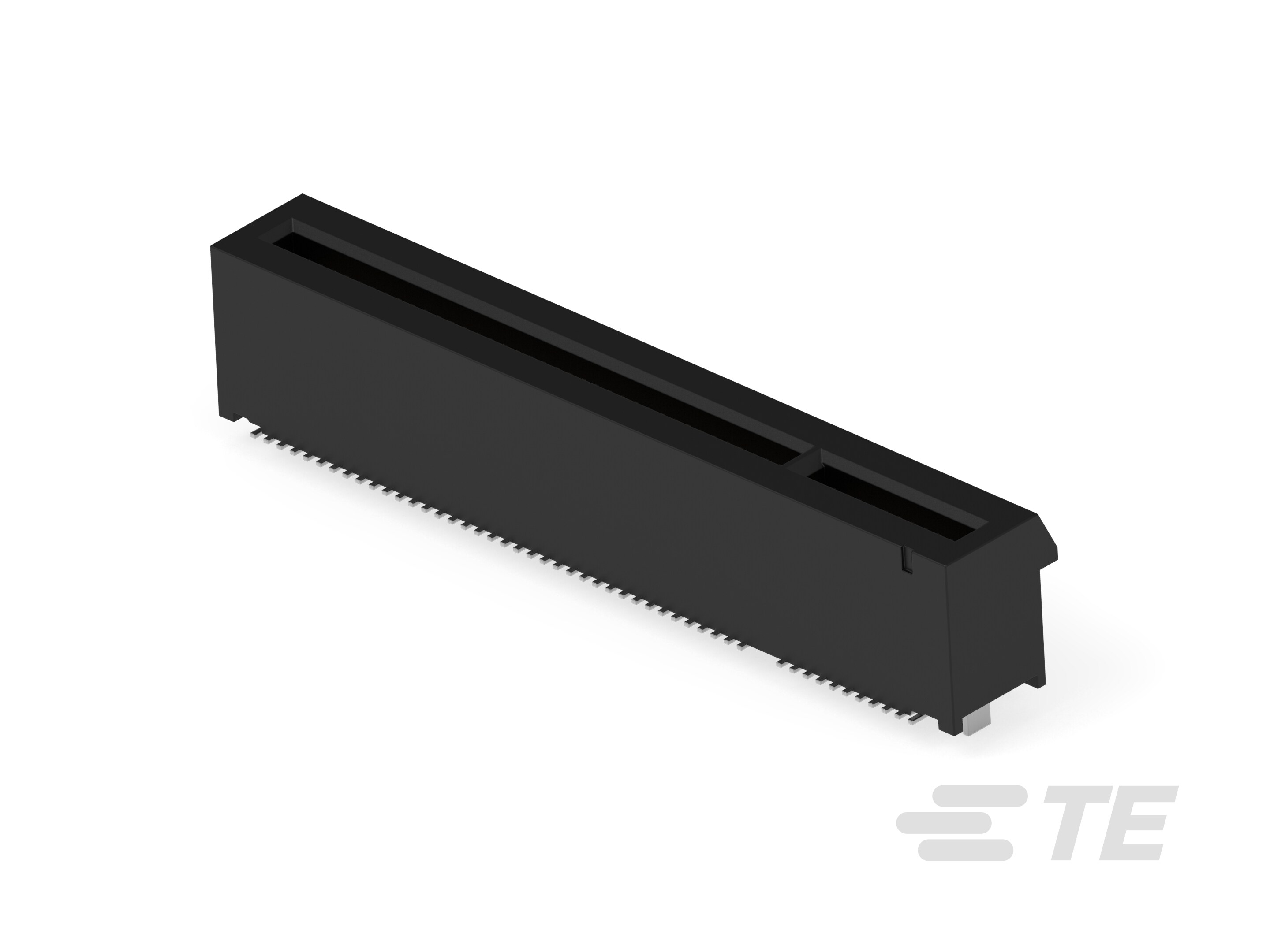

CARD EDGE CONNECTOR, 98 CONTACT(S), STRAIGHT, SURFACE MOUNT TERMINAL, BLACK INSULATOR

Part	Number of Rows	Contact Finish	Color	Mounting Type	Card Thickness	Card Thickness	Material - Insulation [custom]	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Material	Features	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Number of Positions	Gender	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Read Out	Pitch [x]	Pitch [x]	Card Type	Material - Insulation	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Contact Finish Thickness
TE Connectivity Raychem Cable Protection 5-2384030-7	2	Gold	Black	Surface Mount	0.062 in	1.57 mm	Plastic	Cantilever	85 °C	-40 °C	Solder	Copper Alloy	Board Guide Locking Ramp Solder Retention	0.76 Ám	30 Áin	2	98	Female	38	11	Dual	0.039 in	1 mm	PCI Express™

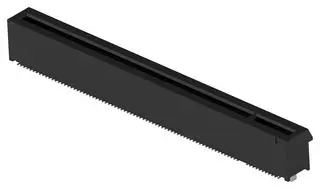

TE Connectivity Raychem Cable Protection 4-2384030-4	2	Gold	Black	Surface Mount	0.062 in	1.57 mm		Cantilever	85 °C	-40 °C	Solder	Copper Alloy	Board Guide Solder Retention	0.38 µm	15 µin	2	164	Female			Dual	0.039 in	1 mm	PCI Express™	Thermoplastic	71	11
TE Connectivity Raychem Cable Protection 4-2384030-3	2	Gold	Black	Surface Mount	0.062 in	1.57 mm		Cantilever	85 °C	-40 °C	Solder	Copper Alloy	Board Guide Solder Retention	0.38 µm	15 µin	2	98	Female	38	11	Dual	0.039 in	1 mm	PCI Express™	Thermoplastic
TE Connectivity Raychem Cable Protection 2-2384030-3	2	Gold	Black	Surface Mount	0.062 in	1.57 mm	Plastic	Cantilever	85 °C	-40 °C	Solder	Copper Alloy	Board Guide Locking Ramp Solder Retention	0.76 Ám	30 Áin	2	98	Female	38	11	Dual	0.039 in	1 mm	PCI Express™
TE Connectivity Raychem Cable Protection 3-2384030-4	2	Gold	Black	Surface Mount	0.062 in	1.57 mm	Plastic	Cantilever	85 °C	-40 °C	Solder	Copper Alloy	Board Guide Locking Ramp Solder Retention			2	164	Female			Dual	0.039 in	1 mm	PCI Express™		71	11	Flash
