EVQ-21 Series

Catalog

SWITCH TACTILE SPST-NO 0.02A 15V

Part	Mechanical Life	Circuit	Switch Function	Mounting Type	Outline [y]	Outline [x]	Actuator Height off PCB, Vertical	Illumination	Actuator Orientation	Termination Style	Operating Force	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating @ Voltage [x]	Actuator Type	Switch Travel	Actuator Height off PCB, Vertical [z]

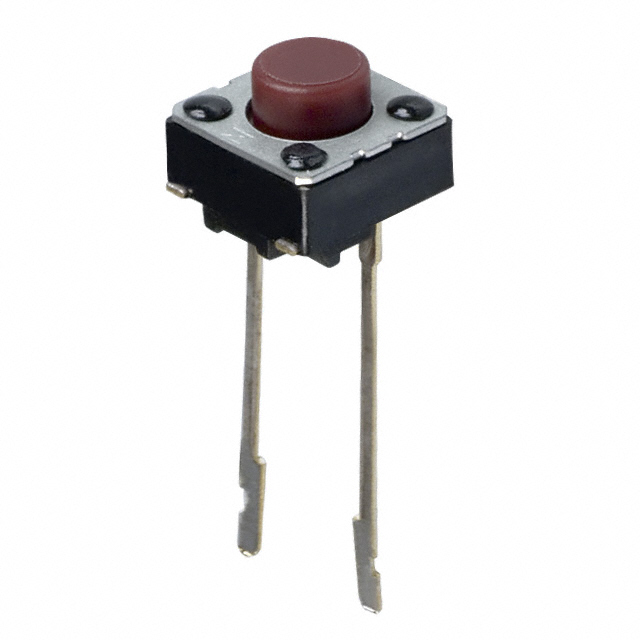

Panasonic Industrial Automation Sales EVQ-21405R	100000 Cycles	SPST-NO	Off-Mom	Through Hole	6 mm	6 mm	5 mm	Non-Illuminated	Top Actuated	PC Pin	130 gf	-20 C	70 °C	0.02 A 15 VDC	Standard	0.25 mm
Panasonic Industrial Automation Sales EVQ-21504M	100000 Cycles	SPST-NO	Off-Mom	Through Hole	6 mm	6 mm		Non-Illuminated	Top Actuated	PC Pin		-20 C	70 °C	0.02 A 15 VDC	Standard	0.25 mm	4.3 mm

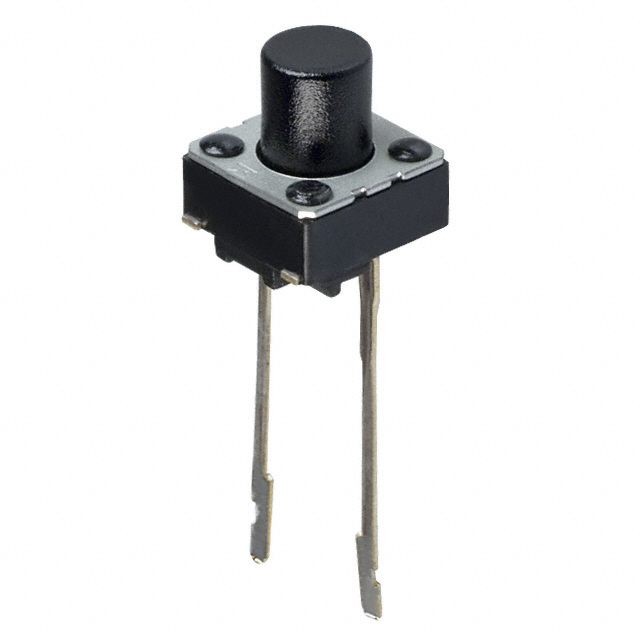

Panasonic Industrial Automation Sales EVQ-21307K	100000 Cycles	SPST-NO	Off-Mom	Through Hole	6 mm	6 mm		Non-Illuminated	Top Actuated	PC Pin	100 gf	-20 C	70 °C	0.02 A 15 VDC	Standard	0.25 mm	7 mm
Panasonic Industrial Automation Sales EVQ-21407K	100000 Cycles	SPST-NO	Off-Mom	Through Hole	6 mm	6 mm		Non-Illuminated	Top Actuated	PC Pin	130 gf	-20 C	70 °C	0.02 A 15 VDC	Standard	0.25 mm	7 mm
Panasonic Industrial Automation Sales EVQ-21304M	100000 Cycles	SPST-NO	Off-Mom	Through Hole	6 mm	6 mm		Non-Illuminated	Top Actuated	PC Pin	100 gf	-20 C	70 °C	0.02 A 15 VDC	Standard	0.25 mm	4.3 mm
Panasonic Industrial Automation Sales EVQ-21305R	100000 Cycles	SPST-NO	Off-Mom	Through Hole	6 mm	6 mm	5 mm	Non-Illuminated	Top Actuated	PC Pin	100 gf	-20 C	70 °C	0.02 A 15 VDC	Standard	0.25 mm
