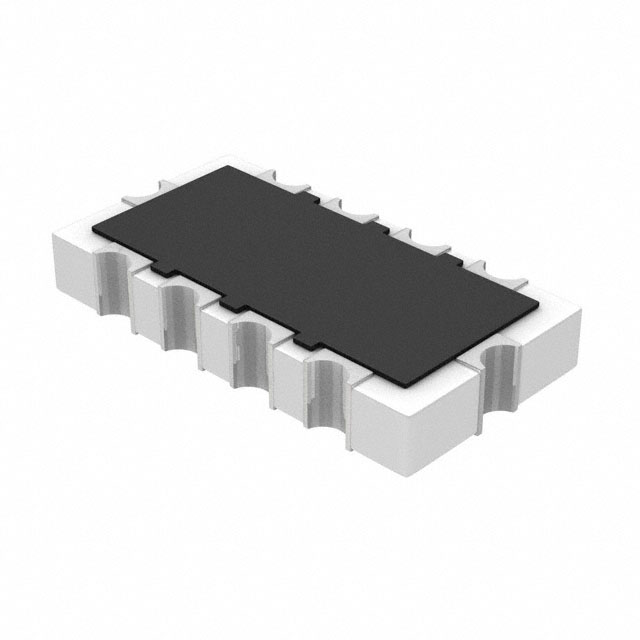

EZA-ST Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
FILTER RC(PI) 22 OHM/100PF SMD
| Part | ESD Protection | Applications | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Values | Technology | Filter Order | Number of Channels | Resistance - Channel (Ohms) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Height [z] | Height [z] | Type | Voltage - Rated | Resistance - Channel (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Data Lines for Mobile Devices | 1608 (4021 Metric) Concave | -25 °C | 85 °C | 22 Ohms 100 pF | RC (Pi) | 4th | 4 | 22 Ohms | 4 mm | 0.083 " | 0.157 " | 2.1 mm | Surface Mount | 0.033 in | 0.85 mm | Low Pass | 25 VDC | ||
Panasonic Industrial Automation Sales | Data Lines for Mobile Devices | 1608 (4021 Metric) Concave | -25 °C | 85 °C | 22 pF 100 Ohms | RC (Pi) | 4th | 4 | 100 Ohms | 4 mm | 0.083 " | 0.157 " | 2.1 mm | Surface Mount | 0.033 in | 0.85 mm | Low Pass | 25 VDC | ||
Panasonic Industrial Automation Sales | Data Lines for Mobile Devices | 1608 (4021 Metric) Concave | -25 °C | 85 °C | 1 kOhms 100 pF | RC (Pi) | 4th | 4 | 4 mm | 0.083 " | 0.157 " | 2.1 mm | Surface Mount | 0.033 in | 0.85 mm | Low Pass | 25 VDC | 1k | ||
Panasonic Industrial Automation Sales | Data Lines for Mobile Devices | 1608 (4021 Metric) Concave | -25 °C | 85 °C | 47 pF 100 Ohms | RC (Pi) | 4th | 4 | 100 Ohms | 4 mm | 0.083 " | 0.157 " | 2.1 mm | Surface Mount | 0.033 in | 0.85 mm | Low Pass | 25 VDC | ||
Panasonic Industrial Automation Sales | Data Lines for Mobile Devices | 1608 (4021 Metric) Concave | -25 °C | 85 °C | 22 pF 220 Ohms | RC (Pi) | 4th | 4 | 220 Ohms | 4 mm | 0.083 " | 0.157 " | 2.1 mm | Surface Mount | 0.033 in | 0.85 mm | Low Pass | 25 VDC | ||
Panasonic Industrial Automation Sales | Data Lines for Mobile Devices | 1608 (4021 Metric) Concave | -25 °C | 85 °C | 1 kOhms 22 pF | RC (Pi) | 4th | 4 | 4 mm | 0.083 " | 0.157 " | 2.1 mm | Surface Mount | 0.033 in | 0.85 mm | Low Pass | 25 VDC | 1k | ||
Panasonic Industrial Automation Sales | Data Lines for Mobile Devices | 1608 (4021 Metric) Concave | -25 °C | 85 °C | 22 Ohms 47 pF | RC (Pi) | 4th | 4 | 22 Ohms | 4 mm | 0.083 " | 0.157 " | 2.1 mm | Surface Mount | 0.033 in | 0.85 mm | Low Pass | 25 VDC | ||
Panasonic Industrial Automation Sales | Data Lines for Mobile Devices | 1608 (4021 Metric) Concave | -25 °C | 85 °C | 47 pF 470 Ohms | RC (Pi) | 4th | 4 | 470 Ohms | 4 mm | 0.083 " | 0.157 " | 2.1 mm | Surface Mount | 0.033 in | 0.85 mm | Low Pass | 25 VDC | ||
Panasonic Industrial Automation Sales | Data Lines for Mobile Devices | 1608 (4021 Metric) Concave | -25 °C | 85 °C | 1 kOhms 47 pF | RC (Pi) | 4th | 4 | 4 mm | 0.083 " | 0.157 " | 2.1 mm | Surface Mount | 0.033 in | 0.85 mm | Low Pass | 25 VDC | 1k | ||
Panasonic Industrial Automation Sales | Data Lines for Mobile Devices | 1608 (4021 Metric) Concave | -25 °C | 85 °C | 47 pF 220 Ohms | RC (Pi) | 4th | 4 | 220 Ohms | 4 mm | 0.083 " | 0.157 " | 2.1 mm | Surface Mount | 0.033 in | 0.85 mm | Low Pass | 25 VDC |
