8210-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

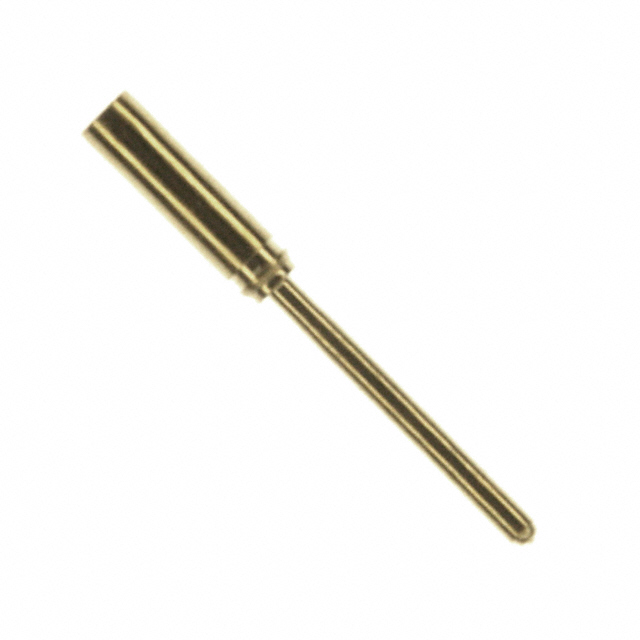

CONN PIN RCPT .008-.013 PRESSFIT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Length - Overall [x] | Length - Overall [x] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Contact Material | Contact Finish | Mounting Hole Diameter | Mounting Hole Diameter | Tail Type | Contact Finish Thickness | Contact Finish Thickness | Tail Diameter [diameter] | Tail Diameter [diameter] | Termination | Socket Depth | Socket Depth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 6.35 mm | 0.25 in | 0.52 mm | 0.02 in | Beryllium Copper | Gold | 0.024 in 0.027 in 0.61 mm 0.69 mm | Stepped | Standard Tail | 30 Áin | 0.76 Ám | 0.3 mm | 0.012 " | Press-Fit | 0.08 in | 2.03 mm |
