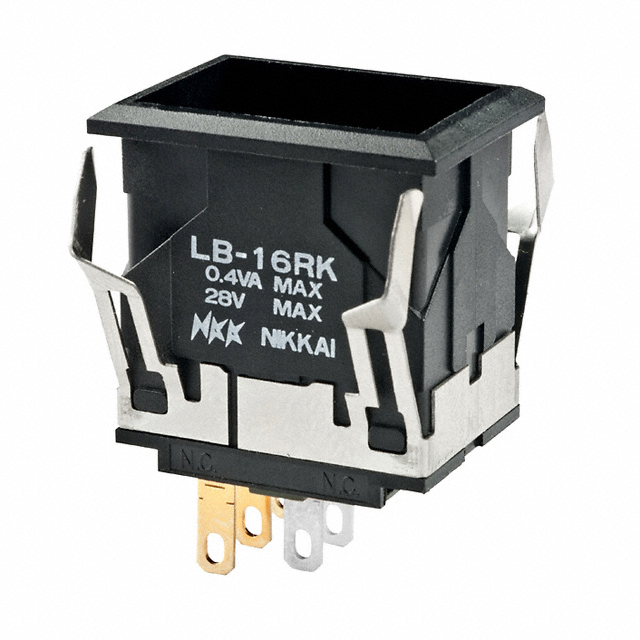

LB16RKG01 Series

Catalog

STANDARD SIZE PANEL SEAL PUSHBUTTON

Part	Mechanical Life	Electrical Life	Actuator Marking	Voltage Rating - AC	Mounting Type	Color - Actuator/Cap	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Circuit	Current Rating (Amps)	Type	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Switch Function	Actuator Type	Illumination Voltage (Nominal)	Illumination Type, Color
NKK Switches LB16RKG01-C	200000 Cycles	100000 Cycles	No Marking	28 V	Panel Mount Snap-In	Red	16.2 mm	22.4 mm	SPDT	0.4 VA	Standard	28 V	-25 °C	70 °C	Solder Quick Connect - 0.110" (2.8mm)	On-On	Button Rectangular
NKK Switches LB16RKG01-5F05-JB	200000 Cycles	100000 Cycles	No Marking	28 V	Panel Mount Snap-In	Clear	16.2 mm	22.4 mm	SPDT	0.4 VA	Illuminated Standard	28 V	-25 °C	50 °C	Solder Quick Connect - 0.110" (2.8mm)	On-On	Button Rectangular	5 VDC	Green LED
NKK Switches LB16RKG01-01-JE	200000 Cycles	100000 Cycles	No Marking	28 V	Panel Mount Snap-In	Clear	16.2 mm	22.4 mm	SPDT	0.4 VA	Illuminated Standard	28 V	-25 °C	50 °C	Solder Quick Connect - 0.110" (2.8mm)	On-On	Button Rectangular	110 VAC	Neon Yellow
NKK Switches LB16RKG01-5F-JB	200000 Cycles	100000 Cycles	No Marking	28 V	Panel Mount Snap-In	Clear	16.2 mm	22.4 mm	SPDT	0.4 VA	Illuminated Standard	28 V	-25 °C	50 °C	Solder Quick Connect - 0.110" (2.8mm)	On-On	Button Rectangular	2.1 VDC	Green LED
NKK Switches LB16RKG01-6B-JB	200000 Cycles	100000 Cycles	No Marking	28 V	Panel Mount Snap-In	Clear	16.2 mm	22.4 mm	SPDT	0.4 VA	Illuminated Standard	28 V	-25 °C	50 °C	Solder Quick Connect - 0.110" (2.8mm)	On-On	Button Rectangular	3.3 VDC	LED White
NKK Switches LB16RKG01-5D05-JD	200000 Cycles	100000 Cycles	No Marking	28 V	Panel Mount Snap-In	Clear	16.2 mm	22.4 mm	SPDT	0.4 VA	Illuminated Standard	28 V	-25 °C	50 °C	Solder Quick Connect - 0.110" (2.8mm)	On-On	Button Rectangular	5 VDC	Amber LED
