PRPC013 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 26POS 2.54MM

Part	Contact Finish Thickness - Post	Mounting Type	Current Rating (Amps)	Contact Type	Insulation Color	Contact Length - Mating	Contact Length - Mating	Shrouding	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Shape	Termination	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Contact Finish - Mating	Contact Material	Contact Length - Post	Contact Length - Post	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Material	Number of Rows [custom]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Positions Loaded	Style	Overall Contact Length [x]	Overall Contact Length [x]	Number of Rows	Overall Contact Length
Sullins Connector Solutions PRPC013DAAN-RC	Flash	Through Hole	3 A	Male Pin	Black	0.23 in	5.84 mm	Unshrouded	Header Breakaway	0.1 in	2.54 mm	Flash	Square	Solder	UL94 V-0	0.448 in	11.39 mm	Gold	Gold	Brass	3.05 mm	0.12 in	Push-Pull	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	2	26	-40 C	105 ░C	0.098 "	2.5 mm	All	Board to Board Cable

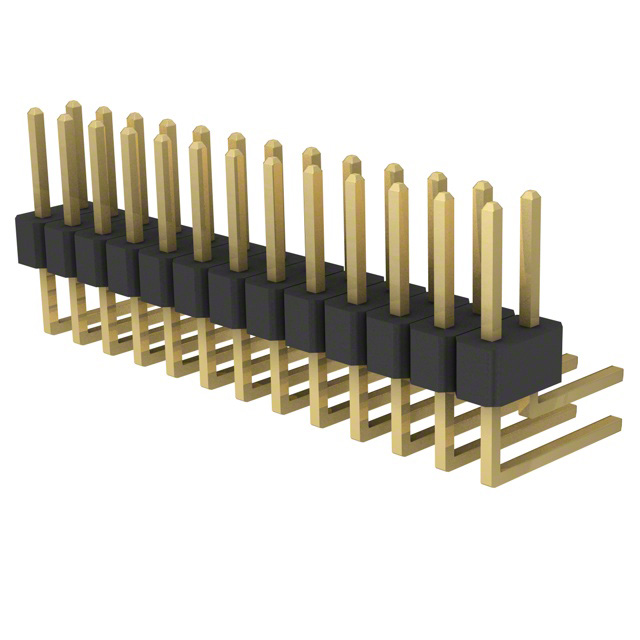

Sullins Connector Solutions PRPC013DBBN-M71RC	Flash	Right Angle Through Hole	3 A	Male Pin	Black	0.23 in	5.84 mm	Unshrouded	Header Breakaway	0.1 in	2.54 mm	Flash	Square	Solder	UL94 V-0			Gold	Gold	Brass	5.58 mm	0.22 in	Push-Pull	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	2	26	-40 C	105 ░C	0.197 "	5 mm	All	Board to Board Cable
Sullins Connector Solutions PRPC013SACN-RC	Flash	Through Hole	3 A	Male Pin	Black	0.23 in	5.84 mm	Unshrouded	Header Breakaway			Flash	Square	Solder	UL94 V-0			Gold	Gold	Brass	8.13 mm	0.32 in	Push-Pull	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)		13	-40 C	105 ░C	0.098 "	2.5 mm	All	Board to Board Cable	0.648 in	16.47 mm	1
Sullins Connector Solutions PRPC013SFAN-RC	Flash	Through Hole	3 A	Male Pin	Black	0.318 in	8.08 mm	Unshrouded	Header Breakaway			Flash	Square	Solder	UL94 V-0			Gold	Gold	Brass	3.05 mm	0.12 in	Push-Pull	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)		13	-40 C	105 ░C	0.098 "	2.5 mm	All	Board to Board Cable	0.537 in	13.63 mm	1

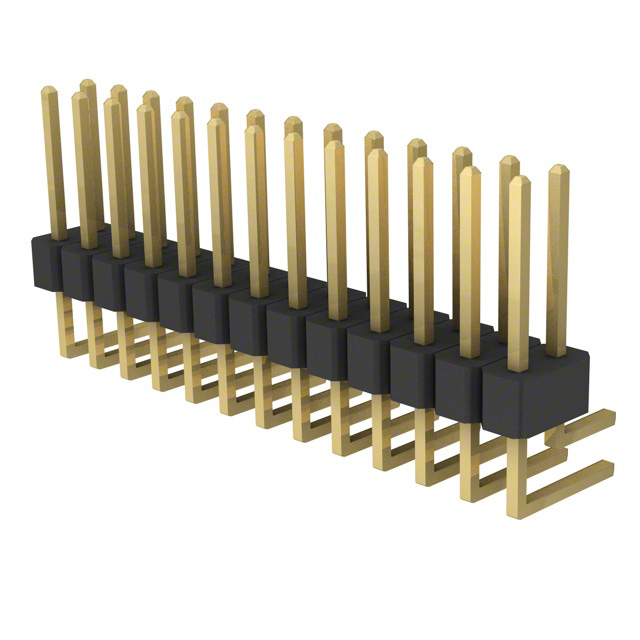

Sullins Connector Solutions PRPC013DGAN-M71RC	Flash	Right Angle Through Hole	3 A	Male Pin	Black	0.318 in	8.08 mm	Unshrouded	Header Breakaway	0.1 in	2.54 mm	Flash	Square	Solder	UL94 V-0			Gold	Gold	Brass	3.05 mm	0.12 in	Push-Pull	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	2	26	-40 C	105 ░C	0.197 "	5 mm	All	Board to Board Cable

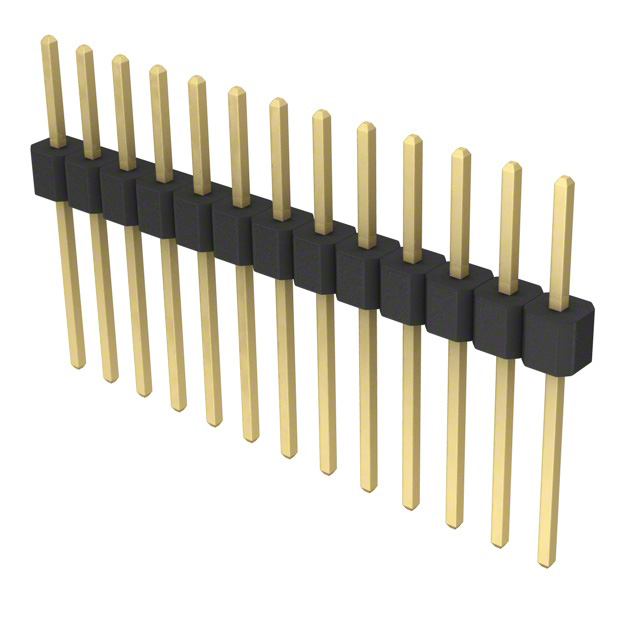

Sullins Connector Solutions PRPC013SADN-RC	Flash	Through Hole	3 A	Male Pin	Black	0.23 in	5.84 mm	Unshrouded	Header Breakaway			Flash	Square	Solder	UL94 V-0	0.748 in	19.01 mm	Gold	Gold	Brass	10.67 mm	0.42 in	Push-Pull	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)		13	-40 C	105 ░C	0.098 "	2.5 mm	All	Board to Board Cable			1
Sullins Connector Solutions PRPC013SAAN-RC	Flash	Through Hole	3 A	Male Pin	Black	0.23 in	5.84 mm	Unshrouded	Header Breakaway			Flash	Square	Solder	UL94 V-0	0.448 in	11.39 mm	Gold	Gold	Brass	3.05 mm	0.12 in	Push-Pull	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)		13	-40 C	105 ░C	0.098 "	2.5 mm	All	Board to Board Cable			1
Sullins Connector Solutions PRPC013DFAN-RC	Flash	Through Hole	3 A	Male Pin	Black	0.318 in	8.08 mm	Unshrouded	Header Breakaway	0.1 in	2.54 mm	Flash	Square	Solder	UL94 V-0			Gold	Gold	Brass	3.05 mm	0.12 in	Push-Pull	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	2	26	-40 C	105 ░C	0.098 "	2.5 mm	All	Board to Board Cable	0.537 in	13.63 mm

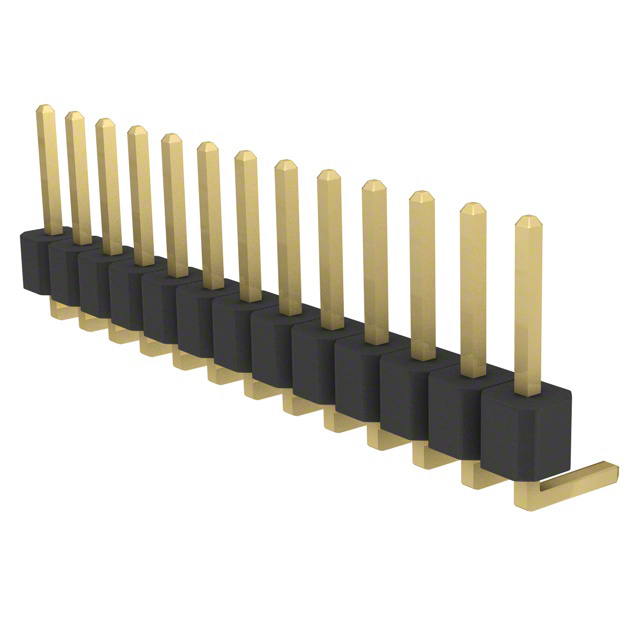

Sullins Connector Solutions PRPC013SBBN-M71RC	Flash	Right Angle Through Hole	3 A	Male Pin	Black	0.23 in	5.84 mm	Unshrouded	Header Breakaway			Flash	Square	Solder	UL94 V-0			Gold	Gold	Brass	5.58 mm	0.22 in	Push-Pull	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)		13	-40 C	105 ░C	0.098 "	2.5 mm	All	Board to Board Cable			1

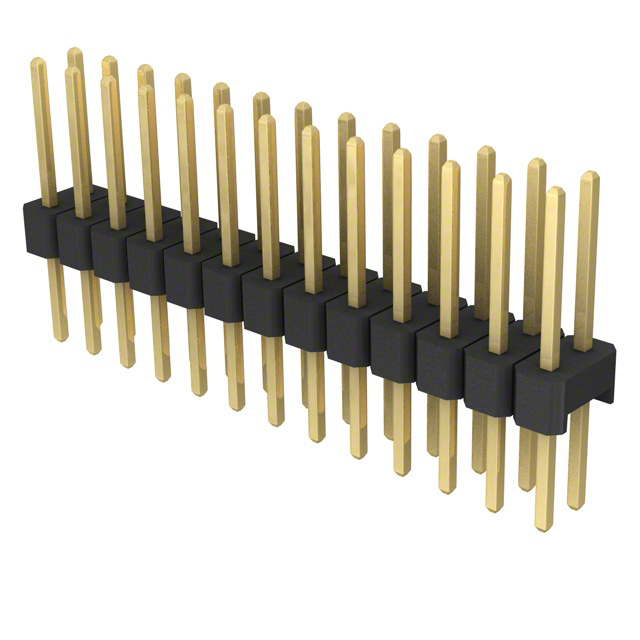

Sullins Connector Solutions PRPC013DFBN-RC	Flash	Through Hole	3 A	Male Pin	Black	0.318 in	8.08 mm	Unshrouded	Header Breakaway	0.1 in	2.54 mm	Flash	Square	Solder	UL94 V-0		0.637 in	Gold	Gold	Brass	5.58 mm	0.22 in	Push-Pull	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	2	26	-40 C	105 ░C	0.098 "	2.5 mm	All	Board to Board Cable				16.17 mm
