316-022 Series
Manufacturer: EDAC Inc.
Beta
⌘K

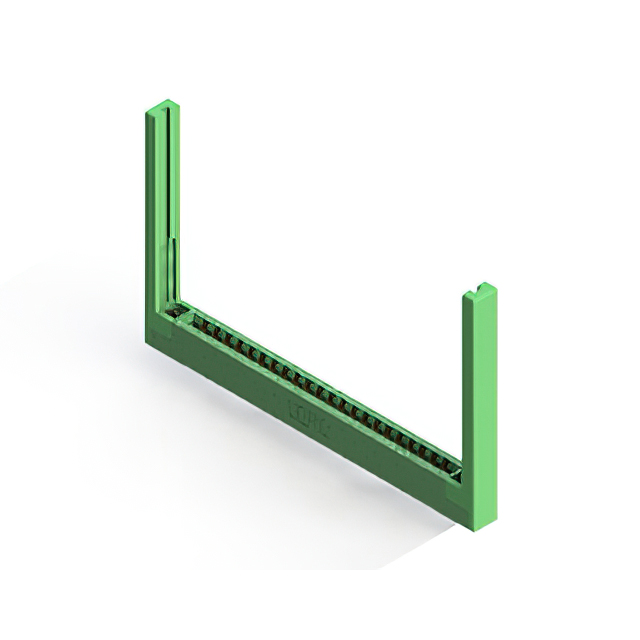

CONN EDGE DUAL FMALE 44POS 0.156
| Part | Material - Insulation | Termination Rows | Gender | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Features | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Card Type | Flange Feature | Contact Finish | Pitch | Pitch | Number of Positions/Bay/Row | Contact Material | Read Out | Color | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Mounting Type | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Guides | 0.25 Ám | 10 Áin | 2 | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 3.96 mm | 0.156 in | 22 | Copper Alloy | Dual | Green | -40 C | 105 ░C | Solder | Panel Mount Through Hole | Cantilever | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Non Specified - Dual Edge | Tin | 3.96 mm | 0.156 in | 22 | Copper Alloy | Dual | Green | -40 C | 105 ░C | Solder Eyelet(s) | Free Hanging (In-Line) | Cantilever | ||||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Guides | 0.25 Ám | 10 Áin | 2 | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 3.96 mm | 0.156 in | 22 | Copper Alloy | Dual | Green | -40 C | 105 ░C | Solder Eyelet(s) | Panel Mount | Cantilever | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Guides | 2 | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Tin | 3.96 mm | 0.156 in | 22 | Copper Alloy | Dual | Green | -40 C | 105 ░C | Solder Eyelet(s) | Panel Mount | Cantilever | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 2 | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 3.96 mm | 0.156 in | 22 | Copper Alloy | Dual | Green | -40 C | 105 ░C | Solder | Through Hole | Cantilever | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Guides | 2 | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Tin | 3.96 mm | 0.156 in | 22 | Copper Alloy | Dual | Green | -40 C | 105 ░C | Solder | Panel Mount Through Hole | Cantilever | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Non Specified - Dual Edge | Floating Bobbin Flush Mount | Tin | 3.96 mm | 0.156 in | 22 | Copper Alloy | Dual | Green | -40 C | 105 ░C | Solder | Panel Mount Through Hole | Cantilever | 0.116 " | 2.95 mm | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Guides | 2 | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Tin | 3.96 mm | 0.156 in | 22 | Copper Alloy | Dual | Green | -40 C | 105 ░C | Solder | Panel Mount Through Hole | Cantilever | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | Tin | 3.96 mm | 0.156 in | 22 | Copper Alloy | Dual | Green | -40 C | 105 ░C | Solder | Panel Mount Through Hole | Cantilever | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 2 | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Gold | 3.96 mm | 0.156 in | 22 | Copper Alloy | Dual | Green | -40 C | 105 ░C | Solder Eyelet(s) | Panel Mount | Cantilever | 0.156 " | 3.96 mm |
