UF1G Series

Catalog

DIODE GEN PURP 400V 1A DO204AL

Part	Reverse Recovery Time (trr)	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If [Max]	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Mounting Type	Technology	Package / Case	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Qualification	Grade
Taiwan Semiconductor Corporation UF1G R1G	50 ns	DO-204AL (DO-41)	1 V	-55 °C	150 °C	Through Hole	Standard	Axial DO-204AL DO-41	200 mA 500 ns	400 V	17 pF	1 A	5 µA

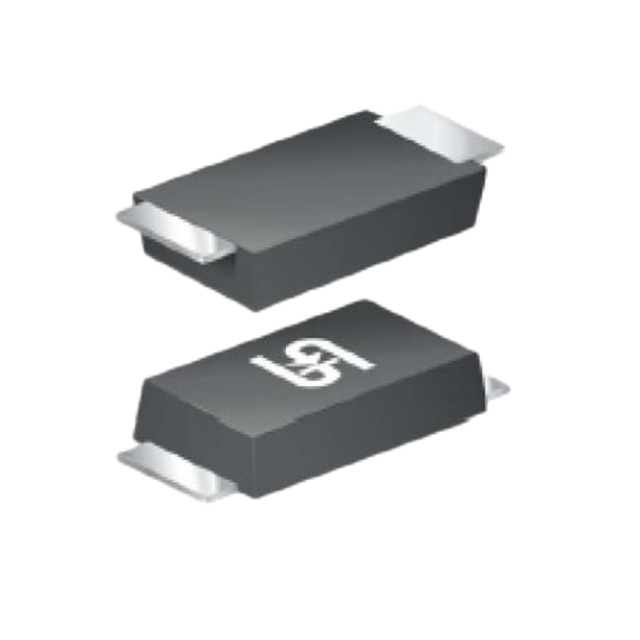

Taiwan Semiconductor Corporation UF1GLWH	20 ns	SOD-123W	1.25 V	-55 °C	150 °C	Surface Mount	Standard	SOD-123W	200 mA 500 ns	400 V	25 pF	1 A	1 µA
Taiwan Semiconductor Corporation UF1GH	50 ns	DO-204AL (DO-41)	1 V	-55 °C	150 °C	Through Hole	Standard	Axial DO-204AL DO-41	200 mA 500 ns	400 V	17 pF	1 A	5 µA	AEC-Q101	Automotive
Taiwan Semiconductor Corporation UF1G	50 ns	DO-204AL (DO-41)	1 V	-55 °C	150 °C	Through Hole	Standard	Axial DO-204AL DO-41	200 mA 500 ns	400 V	17 pF	1 A	5 µA
