THS3202 Series

2GHz Current Feedback Amplifier

Catalog

2GHz Current Feedback Amplifier

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	-3db Bandwidth	Package / Case	Package / Case [custom]	Current - Input Bias	Voltage - Supply Span (Max) [Max]	Supplier Device Package	Voltage - Supply Span (Min) [Min]	Current - Output / Channel	Amplifier Type	Voltage - Input Offset	Current - Supply	Number of Circuits	Slew Rate	Package / Case [y]	Package / Case [x]	Utilized IC / Part	Board Type	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Current - Supply (Main IC)	Output Type	Channels per IC	Supplied Contents	Package / Case
Texas Instruments THS3202DGNR	85 °C	-40 °C	Surface Mount	2 GHz	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	13 µA	15 V	8-HVSSOP	6.6 V	120 mA	Current Feedback	700 µV	14 mA	2	9000 V/µs
Texas Instruments THS3202DG4	85 °C	-40 °C	Surface Mount	2 GHz	8-SOIC		13 µA	15 V	8-SOIC	6.6 V	120 mA	Current Feedback	700 µV	14 mA	2	9000 V/µs	3.9 mm	0.154 in
Texas Instruments THS3202DGN	85 °C	-40 °C	Surface Mount	2 GHz	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	13 µA	15 V	8-HVSSOP	6.6 V	120 mA	Current Feedback	700 µV	14 mA	2	9000 V/µs
Texas Instruments THS3202DGNG4	85 °C	-40 °C	Surface Mount	2 GHz	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	13 µA	15 V	8-HVSSOP	6.6 V	120 mA	Current Feedback	700 µV	14 mA	2	9000 V/µs

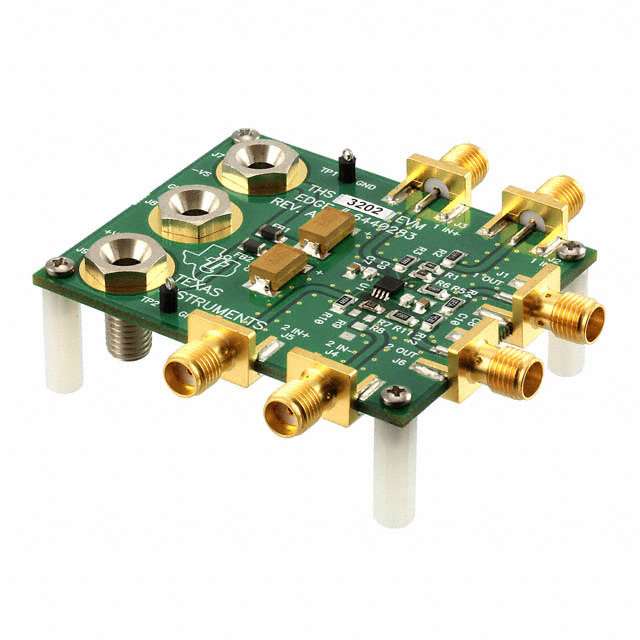

Texas Instruments THS3202EVM				2 GHz							120 mA	Current Feedback				9000 V/µs			THS3202	Fully Populated	7.5 V 15 V	-3.3 V 6.6 V	15 mA	Single-Ended	2 - Dual	Board(s)
Texas Instruments THS3202D	85 °C	-40 °C	Surface Mount	2 GHz	8-SOIC		13 µA	15 V	8-SOIC	6.6 V	120 mA	Current Feedback	700 µV	14 mA	2	9000 V/µs	3.9 mm	0.154 in
Texas Instruments THS3202DGK	85 °C	-40 °C	Surface Mount	2 GHz	8-MSOP 8-TSSOP	0.118 in	13 µA	15 V		6.6 V	120 mA	Current Feedback	700 µV	14 mA	2	9000 V/µs											3 mm
Texas Instruments THS3202DGKG4	85 °C	-40 °C	Surface Mount	2 GHz	8-MSOP 8-TSSOP	0.118 in	13 µA	15 V		6.6 V	120 mA	Current Feedback	700 µV	14 mA	2	9000 V/µs											3 mm

Catalog

2GHz Current Feedback Amplifier

Key Features

• Unity-Gain Bandwidth: 2 GHzHigh Slew Rate: 9000 V/µsHigh Output Current: ±115 mA into 20RLPower-Supply Voltage Range: 6.6 V to 15 VAPPLICATIONSHigh-Speed Signal ProcessingTest and Measurement SystemsHigh-Voltage ADC PreamplifierRF and IF Amplifier StagesProfessional VideoUnity-Gain Bandwidth: 2 GHzHigh Slew Rate: 9000 V/µsHigh Output Current: ±115 mA into 20RLPower-Supply Voltage Range: 6.6 V to 15 VAPPLICATIONSHigh-Speed Signal ProcessingTest and Measurement SystemsHigh-Voltage ADC PreamplifierRF and IF Amplifier StagesProfessional Video

Description

The THS3202 is a dual current-feedback amplifier developed with BiCOM-II technology. Designed for low distortion with a high slew rate of 9000 V/µs, the THS320x family is ideally suited for applications driving loads sensitive to distortion at high frequencies. The THS3202 provides well-regulated ac performance characteristics with power supplies ranging from single-supply 6.6-V operation up to a 15-V supply. The high unity-gain bandwidth of up to2 GHz is a major contributor to the excellent distortion performance. The THS3202 offers an output current drive of ±115 mA and a low differential gain and phase error that make it suitable for applications such as video line drivers. The THS3202 is available in an SOIC-8, an MSOP-8, and an MSOP-8 with PowerPAD packages. The THS3202 is a dual current-feedback amplifier developed with BiCOM-II technology. Designed for low distortion with a high slew rate of 9000 V/µs, the THS320x family is ideally suited for applications driving loads sensitive to distortion at high frequencies. The THS3202 provides well-regulated ac performance characteristics with power supplies ranging from single-supply 6.6-V operation up to a 15-V supply. The high unity-gain bandwidth of up to2 GHz is a major contributor to the excellent distortion performance. The THS3202 offers an output current drive of ±115 mA and a low differential gain and phase error that make it suitable for applications such as video line drivers. The THS3202 is available in an SOIC-8, an MSOP-8, and an MSOP-8 with PowerPAD packages.
