som Series
Manufacturer: Celduc Inc.
Beta
⌘K
RELAY: SOLID STATE; UCNTRL: 3.5÷32VDC; 20A; 5÷60VDC; SOM; -25÷90°C
| Part | Voltage - Load [Max] | Voltage - Load [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Output Type | Package / Case | Load Current | Termination Style | Voltage - Input [Max] | Voltage - Input [Min] | On-State Resistance (Max) [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

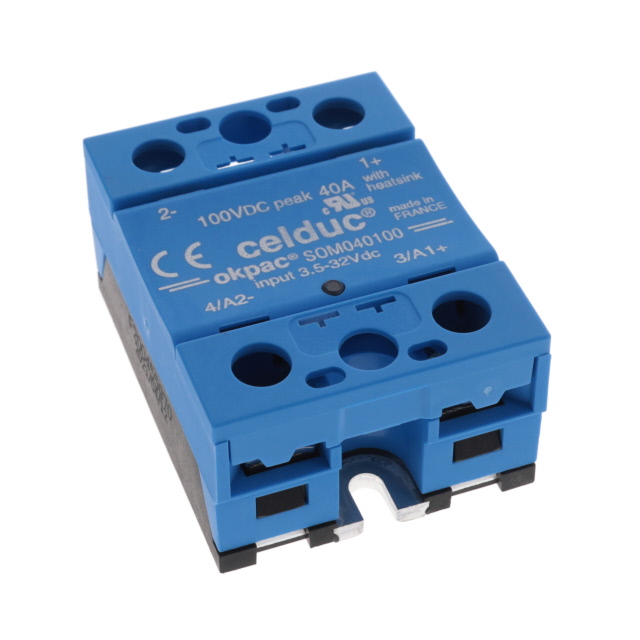

 Celduc Inc. | 60 V | 0 V | 90 °C | -25 °C | DC | Module | 20 A | Screw Terminal | 32 VDC | 3.5 V | 56 mOhms | Chassis Mount |
 Celduc Inc. | 60 V | 0 V | 90 °C | -25 °C | DC | Module | 40 A | Screw Terminal | 32 VDC | 3.5 V | 30 mOhms | Chassis Mount |
 Celduc Inc. | 110 V | 0 V | 100 °C | -40 C | DC | Module | 20 A | Screw Terminal | 32 VDC | 3.5 V | 90 mOhms | Chassis Mount |
