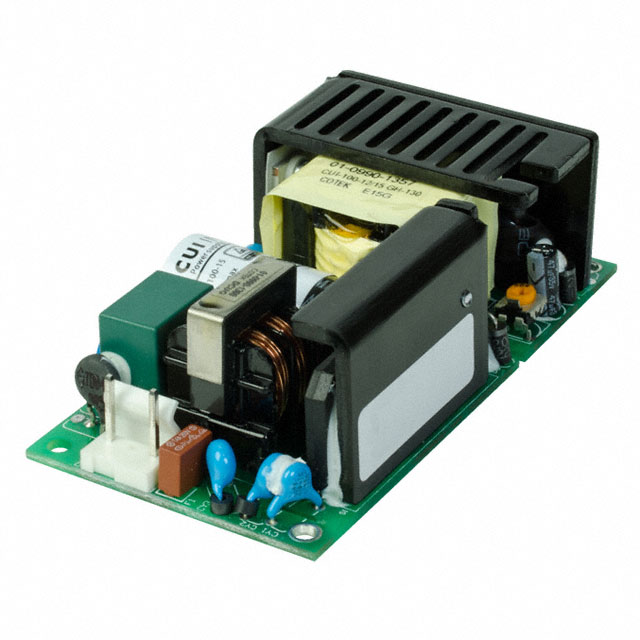

VOF-100 Series

Manufacturer: CUI Inc.

Catalog

AC/DC POWER SUPPLY SINGLE-OUT 15V 6.7A 100W 8-PIN

Part	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Voltage - Output 1	Number of Outputs	Voltage - Isolation	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Applications	Efficiency	Features	Current - Output 1	Type	Standard Number
CUI Inc. VOF-100-15	70 °C	-20 °C	CB Scheme EN FCC IEC SIQ TUV UL	15 V	1	3000 V	100 W	277 VAC	90 VAC	Chassis Mount	101.6 mm	33.6 mm	4 "	50.8 mm	2 in	1.32 in	ITE (Commercial)	86 %	Adjustable Output Universal Input	6.7 A	Open Frame	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3
CUI Inc. VOF-100-12	70 °C	-20 °C	CB Scheme EN FCC IEC SIQ TUV UL	12 V	1	3000 V	100 W	277 VAC	90 VAC	Chassis Mount	101.6 mm	33.6 mm	4 "	50.8 mm	2 in	1.32 in	ITE (Commercial)	85 %	Adjustable Output Universal Input	8.4 A	Open Frame	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3
CUI Inc. VOF-100-48	70 °C	-20 °C	CB Scheme EN FCC IEC SIQ TUV UL	48 V	1	3000 V	100 W	277 VAC	90 VAC	Chassis Mount	101.6 mm	33.6 mm	4 "	50.8 mm	2 in	1.32 in	ITE (Commercial)	87.5 %	Adjustable Output Universal Input	2.1 A	Open Frame	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3
CUI Inc. VOF-100-24	70 °C	-20 °C	CB Scheme EN FCC IEC SIQ TUV UL	24 V	1	3000 V	100 W	277 VAC	90 VAC	Chassis Mount	101.6 mm	33.6 mm	4 "	50.8 mm	2 in	1.32 in	ITE (Commercial)	87 %	Adjustable Output Universal Input	4.2 A	Open Frame	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3
