02K243 Series
Manufacturer: Rosenberger
Beta
⌘K

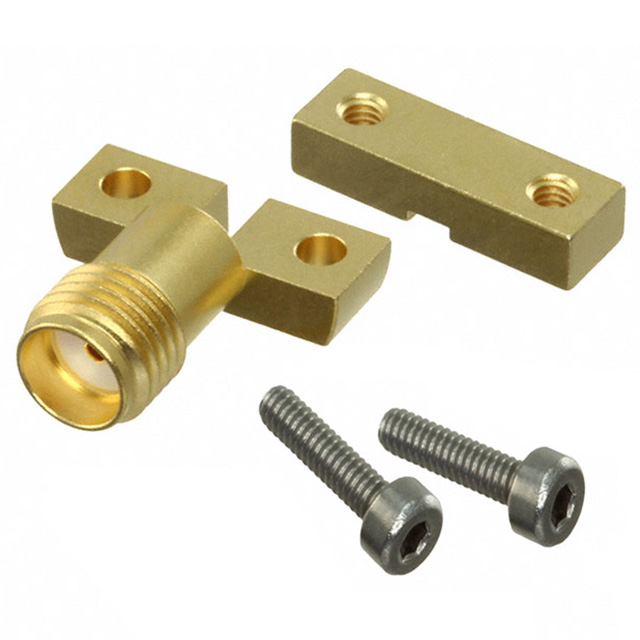

CONN RPC2.92 JCK ST 50OHM EDGEMT
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Includes | Voltage Rating | Body Finish | Center Contact Plating | Dielectric Material | Body Material | Mating Cycles | Connector Type | Housing Color | Connector Style [x] | Impedance | Mounting Type | Contact Termination | Frequency - Max [Max] | Fastening Type | Center Contact Material | Features | Shield Termination | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 85 °C | -40 C | 1 2 | 250 V | Gold | Gold | Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE) | Brass | 500 | Female Socket Jack | Gold | 2.92 mm | 50 Ohms | Board Edge End Launch | Solder | 40 GHz | Threaded | Beryllium Copper | Mounting Hardware | Screw | 1 |
